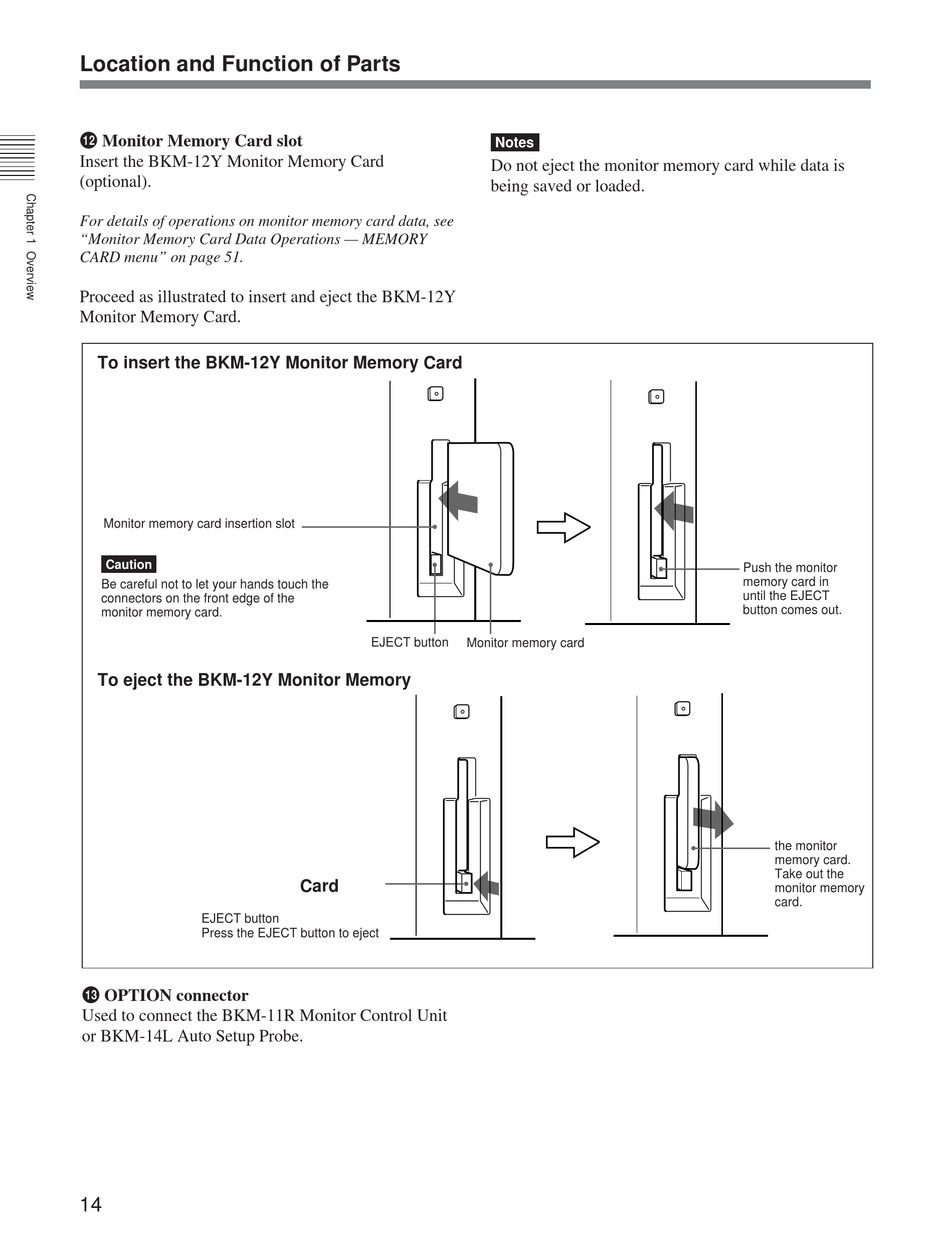

Location and Function of Parts
!™ Monitor Memory Card slot
Insert the BKM-12Y Monitor Memory Card
(optional).
For details of operations on monitor memory card data, see
"Monitor Memory Card Data Operations — MEMORY
CARD menu" on page 51.
Proceed as illustrated to insert and eject the BKM-12Y
Monitor Memory Card.
To insert the BKM-12Y Monitor Memory Card
Monitor memory card insertion slot
Caution
Be careful not to let your hands touch the
connectors on the front edge of the
monitor memory card.
To eject the BKM-12Y Monitor Memory
EJECT button
Press the EJECT button to eject
!£ OPTION connector
Used to connect the BKM-11R Monitor Control Unit
or BKM-14L Auto Setup Probe.
14
EJECT button
Monitor memory card
Card
Notes
Do not eject the monitor memory card while data is
being saved or loaded.
Push the monitor
memory card in
until the EJECT
button comes out.
the monitor
memory card.
Take out the
monitor memory
card.
