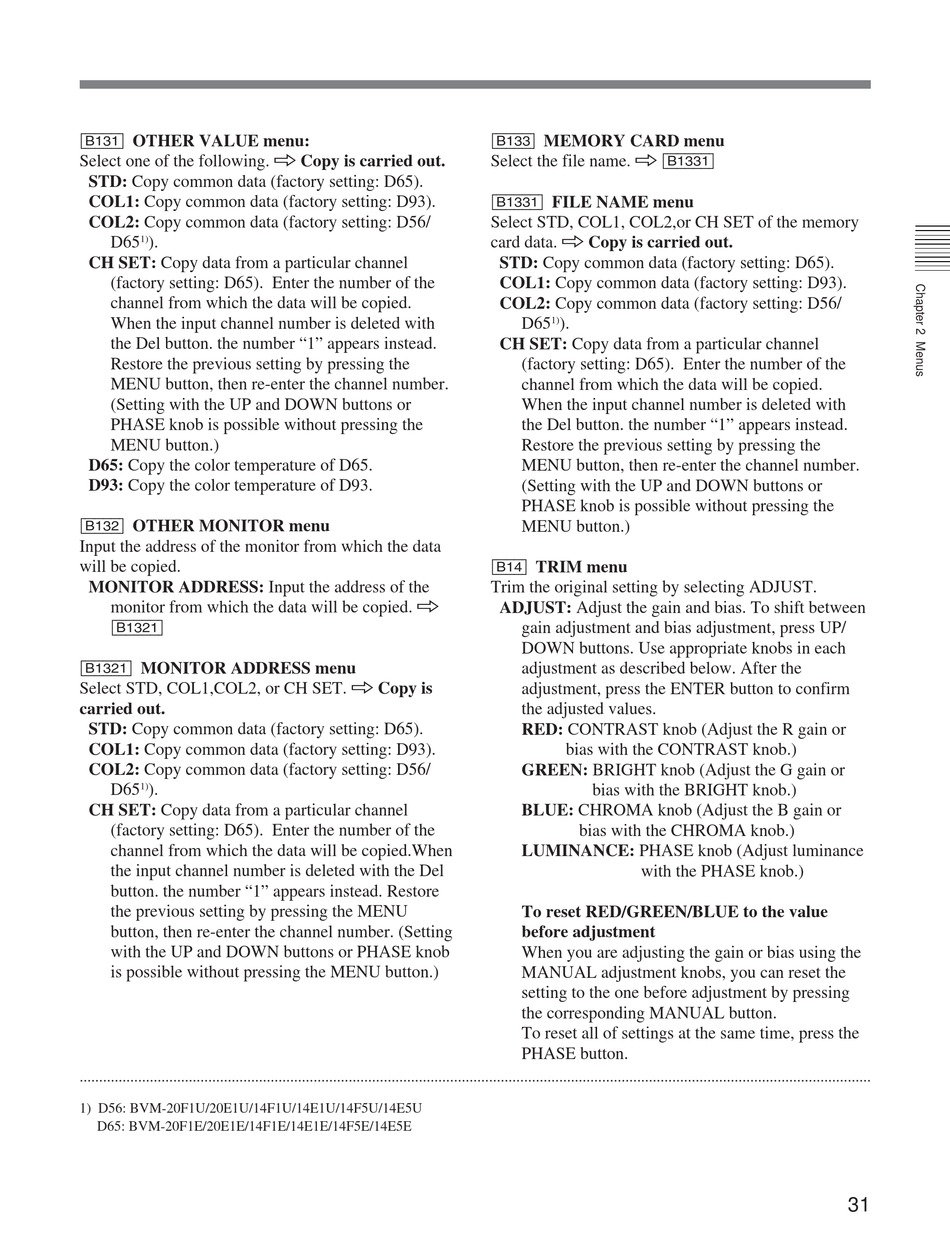

[B131] OTHER VALUE menu:
Select one of the following. ÷ Copy is carried out.
STD: Copy common data (factory setting: D65).
COL1: Copy common data (factory setting: D93).
COL2: Copy common data (factory setting: D56/
1)
D65
).
CH SET: Copy data from a particular channel
(factory setting: D65). Enter the number of the
channel from which the data will be copied.
When the input channel number is deleted with
the Del button. the number "1" appears instead.
Restore the previous setting by pressing the
MENU button, then re-enter the channel number.
(Setting with the UP and DOWN buttons or
PHASE knob is possible without pressing the
MENU button.)
D65: Copy the color temperature of D65.
D93: Copy the color temperature of D93.
[B132] OTHER MONITOR menu
Input the address of the monitor from which the data
will be copied.
MONITOR ADDRESS: Input the address of the
monitor from which the data will be copied. ÷
[B1321]
[B1321] MONITOR ADDRESS menu
Select STD, COL1,COL2, or CH SET. ÷ Copy is
carried out.
STD: Copy common data (factory setting: D65).
COL1: Copy common data (factory setting: D93).
COL2: Copy common data (factory setting: D56/
D65
1)
).
CH SET: Copy data from a particular channel
(factory setting: D65). Enter the number of the
channel from which the data will be copied.When
the input channel number is deleted with the Del
button. the number "1" appears instead. Restore
the previous setting by pressing the MENU
button, then re-enter the channel number. (Setting
with the UP and DOWN buttons or PHASE knob
is possible without pressing the MENU button.)
...........................................................................................................................................................................................................
1) D56: BVM-20F1U/20E1U/14F1U/14E1U/14F5U/14E5U
D65: BVM-20F1E/20E1E/14F1E/14E1E/14F5E/14E5E
[B133] MEMORY CARD menu
Select the file name. ÷ [B1331]
[B1331] FILE NAME menu
Select STD, COL1, COL2,or CH SET of the memory
card data. ÷ Copy is carried out.
STD: Copy common data (factory setting: D65).
COL1: Copy common data (factory setting: D93).
COL2: Copy common data (factory setting: D56/
1)
D65
).
CH SET: Copy data from a particular channel
(factory setting: D65). Enter the number of the
channel from which the data will be copied.
When the input channel number is deleted with
the Del button. the number "1" appears instead.
Restore the previous setting by pressing the
MENU button, then re-enter the channel number.
(Setting with the UP and DOWN buttons or
PHASE knob is possible without pressing the
MENU button.)
[B14] TRIM menu
Trim the original setting by selecting ADJUST.
ADJUST: Adjust the gain and bias. To shift between
gain adjustment and bias adjustment, press UP/
DOWN buttons. Use appropriate knobs in each
adjustment as described below. After the
adjustment, press the ENTER button to confirm
the adjusted values.
RED: CONTRAST knob (Adjust the R gain or
bias with the CONTRAST knob.)
GREEN: BRIGHT knob (Adjust the G gain or
bias with the BRIGHT knob.)
BLUE: CHROMA knob (Adjust the B gain or
bias with the CHROMA knob.)
LUMINANCE: PHASE knob (Adjust luminance
with the PHASE knob.)
To reset RED/GREEN/BLUE to the value
before adjustment
When you are adjusting the gain or bias using the
MANUAL adjustment knobs, you can reset the
setting to the one before adjustment by pressing
the corresponding MANUAL button.
To reset all of settings at the same time, press the
PHASE button.
31
