Power Lamp; Standby Lamp; Over Load Lamp - Sony TRINITRON BVM-20F1U, BVM-20F1E, BVM-20E1U, BVM-20E1E, BVM-14F1U, BVM-14F1E, BVM-14E1U, BVM-14E1E, BVM-14F5U, BVM-14F5E, BVM-14E5 Operation Manual

Sony color video monitor operation manual.

Also See for TRINITRON BVM-20F1U, BVM-20F1E, BVM-20E1U, BVM-20E1E, BVM-14F1U, BVM-14F1E, BVM-14E1U, BVM-14E1E, BVM-14F5U, BVM-14F5E, BVM-14E5

Brochure & specs - 9 pages
Operation and maintenance manual - 242 pages

Table of Contents

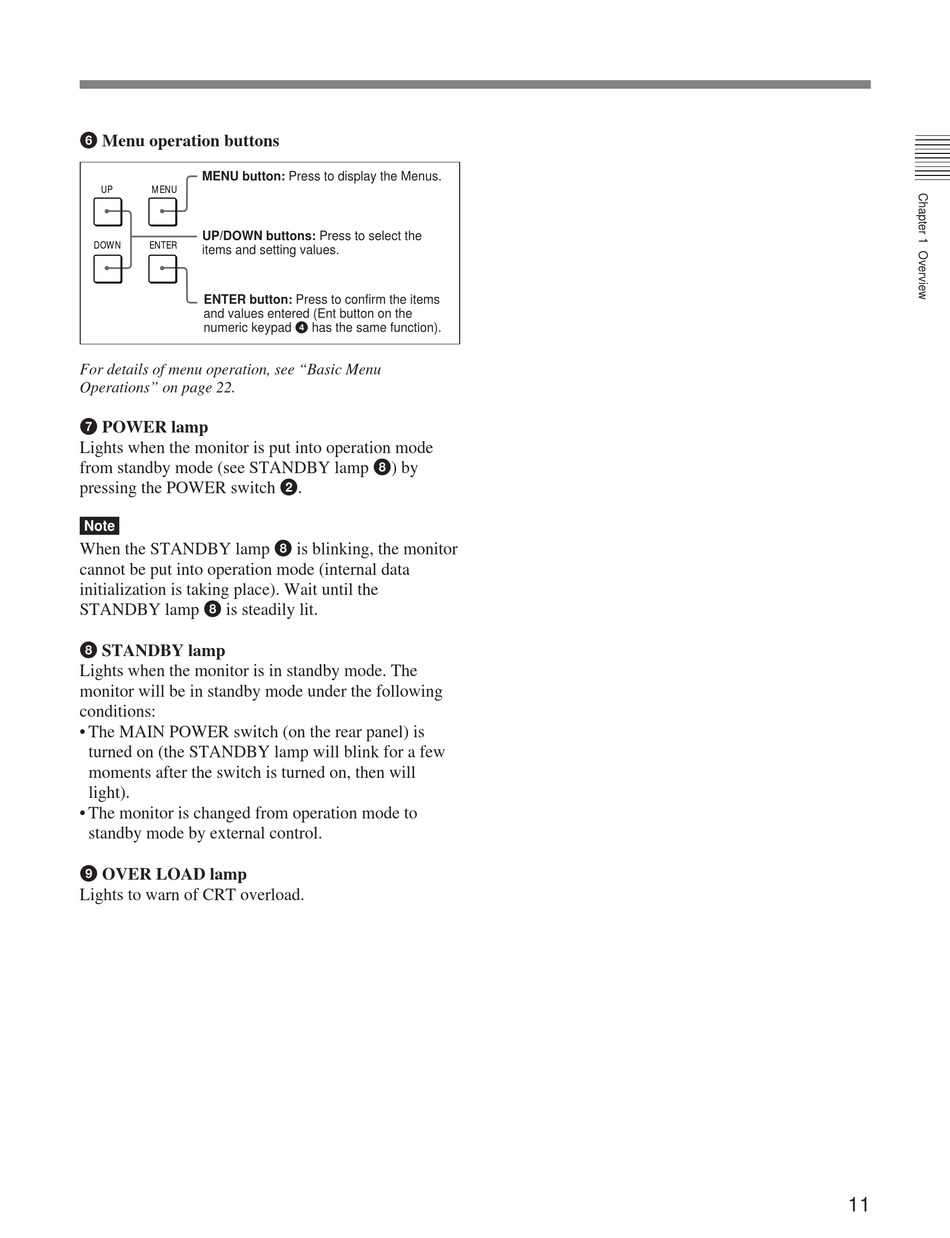

6 Menu operation buttons

MENU button: Press to display the Menus.

UP/DOWN buttons: Press to select the

DOWN

ENTER

items and setting values.

ENTER button: Press to confirm the items

and values entered (Ent button on the

numeric keypad 4 has the same function).

For details of menu operation, see "Basic Menu

Operations" on page 22.

7 POWER lamp

Lights when the monitor is put into operation mode

from standby mode (see STANDBY lamp 8) by

pressing the POWER switch 2.

Note

When the STANDBY lamp 8 is blinking, the monitor

cannot be put into operation mode (internal data

initialization is taking place). Wait until the

STANDBY lamp 8 is steadily lit.

8 STANDBY lamp

Lights when the monitor is in standby mode. The

monitor will be in standby mode under the following

conditions:

• The MAIN POWER switch (on the rear panel) is

turned on (the STANDBY lamp will blink for a few

moments after the switch is turned on, then will

light).

• The monitor is changed from operation mode to

standby mode by external control.

9 OVER LOAD lamp

Lights to warn of CRT overload.
