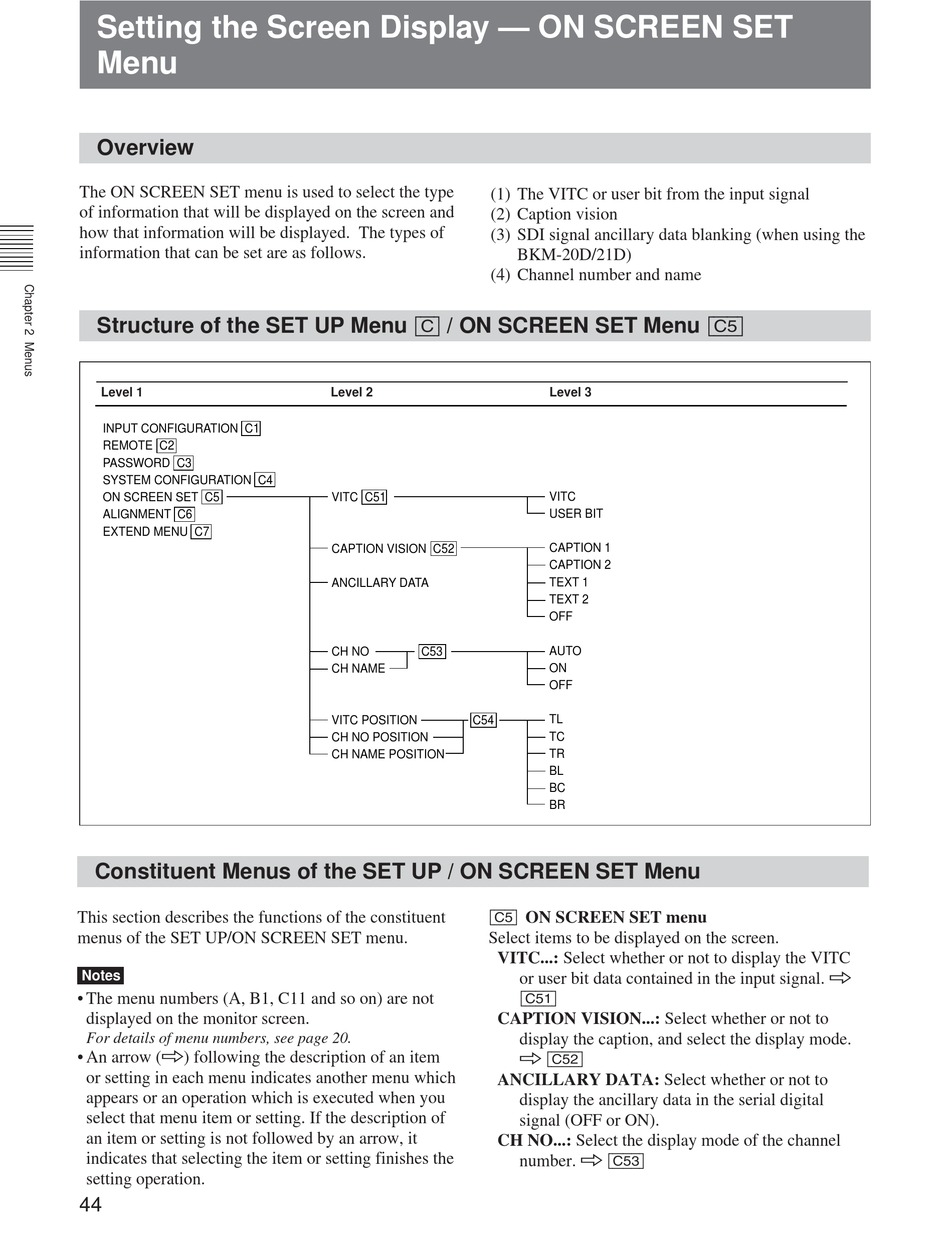

Setting the Screen Display — ON SCREEN SET
Menu

Overview

The ON SCREEN SET menu is used to select the type
of information that will be displayed on the screen and
how that information will be displayed. The types of
information that can be set are as follows.
Structure of the SET UP Menu [C] / ON SCREEN SET Menu [C5]
Level 1
INPUT CONFIGURATION C1
REMOTE C2
PASSWORD C3
SYSTEM CONFIGURATION C4
ON SCREEN SET C5
ALIGNMENT C6
EXTEND MENU C7

Constituent Menus of the SET UP / ON SCREEN SET Menu

This section describes the functions of the constituent
menus of the SET UP/ON SCREEN SET menu.
Notes
• The menu numbers (A, B1, C11 and so on) are not
displayed on the monitor screen.
For details of menu numbers, see page 20.
• An arrow (÷) following the description of an item
or setting in each menu indicates another menu which
appears or an operation which is executed when you
select that menu item or setting. If the description of
an item or setting is not followed by an arrow, it
indicates that selecting the item or setting finishes the
setting operation.
44
(1) The VITC or user bit from the input signal
(2) Caption vision
(3) SDI signal ancillary data blanking (when using the
(4) Channel number and name
Level 2
VITC C51
CAPTION VISION C52
ANCILLARY DATA
CH NO
C53
CH NAME
VITC POSITION
C54
CH NO POSITION
CH NAME POSITION
[C5] ON SCREEN SET menu
Select items to be displayed on the screen.
VITC...: Select whether or not to display the VITC
CAPTION VISION...: Select whether or not to
ANCILLARY DATA: Select whether or not to
CH NO...: Select the display mode of the channel
BKM-20D/21D)
Level 3
VITC
USER BIT
CAPTION 1
CAPTION 2
TEXT 1
TEXT 2
OFF
AUTO
ON
OFF
TL
TC
TR
BL
BC
BR
or user bit data contained in the input signal. ÷
[C51]
display the caption, and select the display mode.
÷ [C52]
display the ancillary data in the serial digital
signal (OFF or ON).
number. ÷ [C53]
