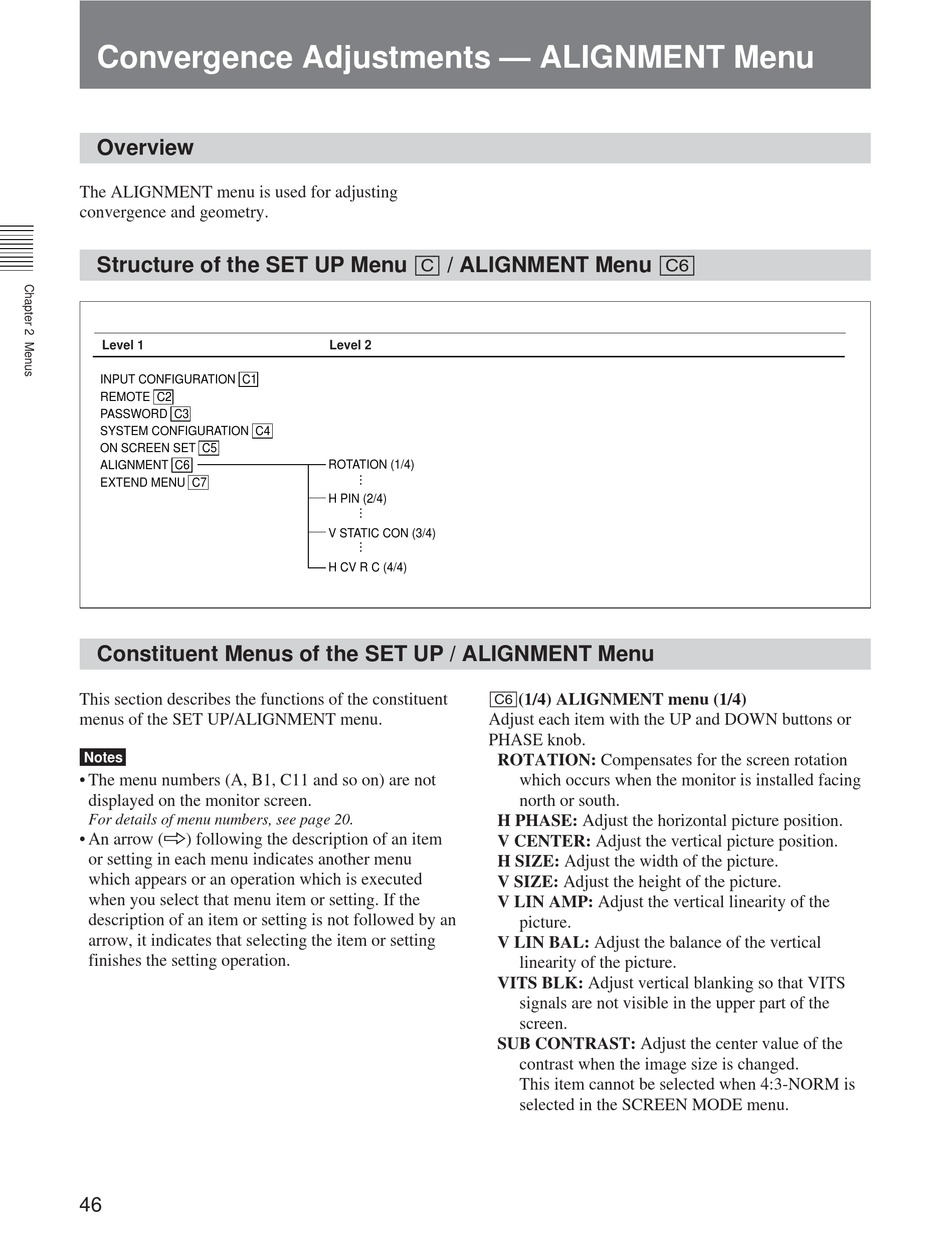

Convergence Adjustments — ALIGNMENT Menu

Overview

The ALIGNMENT menu is used for adjusting
convergence and geometry.

Structure of the SET UP Menu [C] / ALIGNMENT Menu [C6]

Level 1
INPUT CONFIGURATION C1
REMOTE C2
PASSWORD C3
SYSTEM CONFIGURATION C4
ON SCREEN SET C5
ALIGNMENT C6
EXTEND MENU C7

Constituent Menus of the SET UP / ALIGNMENT Menu

This section describes the functions of the constituent
menus of the SET UP/ALIGNMENT menu.
Notes
• The menu numbers (A, B1, C11 and so on) are not
displayed on the monitor screen.
For details of menu numbers, see page 20.
• An arrow (÷) following the description of an item
or setting in each menu indicates another menu
which appears or an operation which is executed
when you select that menu item or setting. If the
description of an item or setting is not followed by an
arrow, it indicates that selecting the item or setting
finishes the setting operation.
46
Level 2
ROTATION (1/4)
H PIN (2/4)
V STATIC CON (3/4)
H CV R C (4/4)
[C6](1/4) ALIGNMENT menu (1/4)
Adjust each item with the UP and DOWN buttons or
PHASE knob.
ROTATION: Compensates for the screen rotation
H PHASE: Adjust the horizontal picture position.
V CENTER: Adjust the vertical picture position.
H SIZE: Adjust the width of the picture.
V SIZE: Adjust the height of the picture.
V LIN AMP: Adjust the vertical linearity of the
V LIN BAL: Adjust the balance of the vertical
VITS BLK: Adjust vertical blanking so that VITS
SUB CONTRAST: Adjust the center value of the
which occurs when the monitor is installed facing
north or south.
picture.
linearity of the picture.
signals are not visible in the upper part of the
screen.
contrast when the image size is changed.
This item cannot be selected when 4:3-NORM is
selected in the SCREEN MODE menu.
