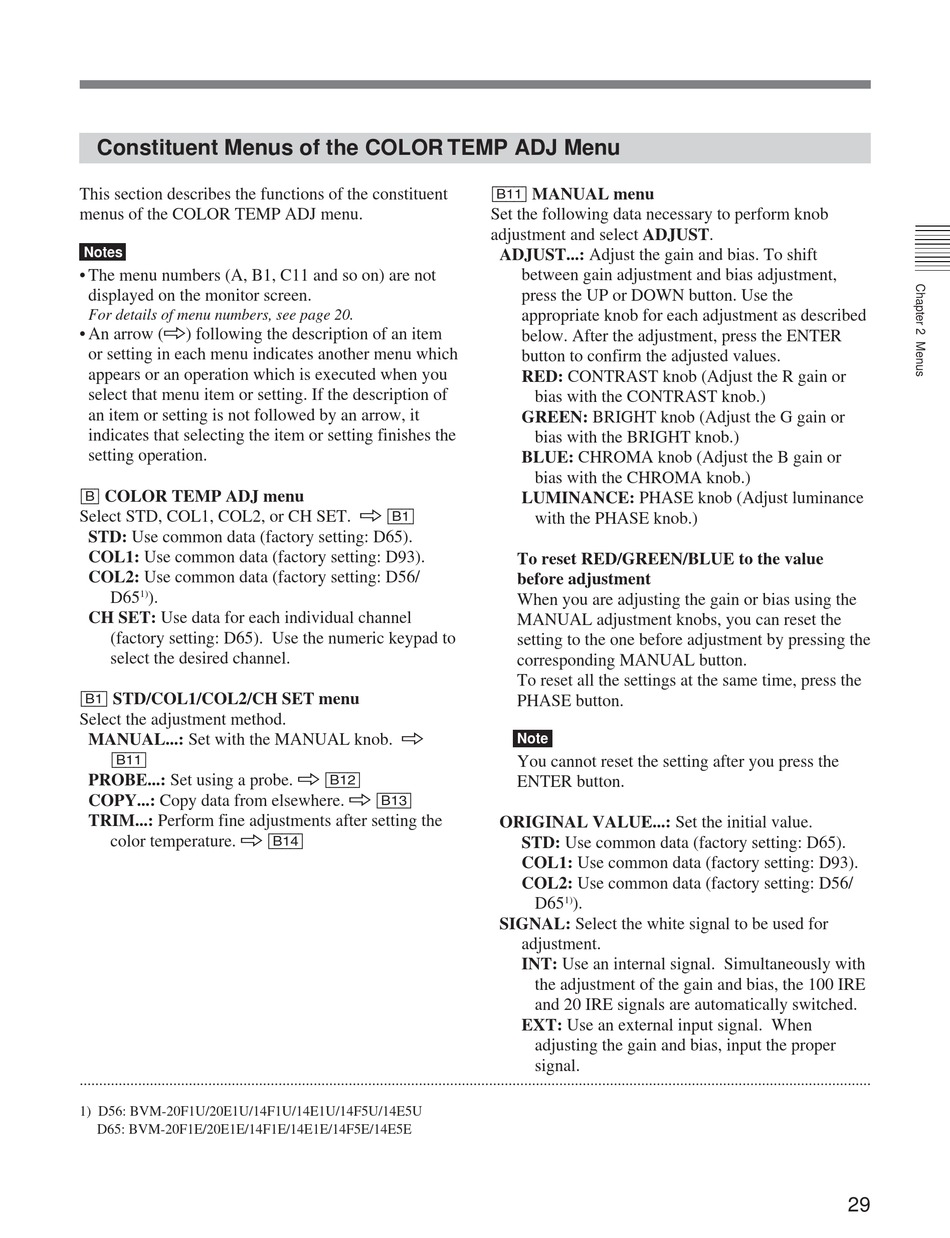

Constituent Menus of the COLOR TEMP ADJ Menu

This section describes the functions of the constituent
menus of the COLOR TEMP ADJ menu.
Notes
• The menu numbers (A, B1, C11 and so on) are not
displayed on the monitor screen.
For details of menu numbers, see page 20.
• An arrow (÷) following the description of an item
or setting in each menu indicates another menu which
appears or an operation which is executed when you
select that menu item or setting. If the description of
an item or setting is not followed by an arrow, it
indicates that selecting the item or setting finishes the
setting operation.
[B] COLOR TEMP ADJ menu
Select STD, COL1, COL2, or CH SET. ÷ [B1]
STD: Use common data (factory setting: D65).
COL1: Use common data (factory setting: D93).
COL2: Use common data (factory setting: D56/
1)
D65
).
CH SET: Use data for each individual channel
(factory setting: D65). Use the numeric keypad to
select the desired channel.
[B1] STD/COL1/COL2/CH SET menu
Select the adjustment method.
MANUAL...: Set with the MANUAL knob. ÷
[B11]
PROBE...: Set using a probe. ÷ [B12]
COPY...: Copy data from elsewhere. ÷ [B13]
TRIM...: Perform fine adjustments after setting the
color temperature. ÷ [B14]
...........................................................................................................................................................................................................
1) D56: BVM-20F1U/20E1U/14F1U/14E1U/14F5U/14E5U
D65: BVM-20F1E/20E1E/14F1E/14E1E/14F5E/14E5E
[B11] MANUAL menu
Set the following data necessary to perform knob
adjustment and select ADJUST.
ADJUST...: Adjust the gain and bias. To shift
between gain adjustment and bias adjustment,
press the UP or DOWN button. Use the
appropriate knob for each adjustment as described
below. After the adjustment, press the ENTER
button to confirm the adjusted values.
RED: CONTRAST knob (Adjust the R gain or
bias with the CONTRAST knob.)
GREEN: BRIGHT knob (Adjust the G gain or
bias with the BRIGHT knob.)
BLUE: CHROMA knob (Adjust the B gain or
bias with the CHROMA knob.)
LUMINANCE: PHASE knob (Adjust luminance
with the PHASE knob.)
To reset RED/GREEN/BLUE to the value
before adjustment
When you are adjusting the gain or bias using the
MANUAL adjustment knobs, you can reset the
setting to the one before adjustment by pressing the
corresponding MANUAL button.
To reset all the settings at the same time, press the
PHASE button.
Note
You cannot reset the setting after you press the
ENTER button.
ORIGINAL VALUE...: Set the initial value.
STD: Use common data (factory setting: D65).
COL1: Use common data (factory setting: D93).
COL2: Use common data (factory setting: D56/
1)
D65
).
SIGNAL: Select the white signal to be used for
adjustment.
INT: Use an internal signal. Simultaneously with
the adjustment of the gain and bias, the 100 IRE
and 20 IRE signals are automatically switched.
EXT: Use an external input signal. When
adjusting the gain and bias, input the proper
signal.
29
