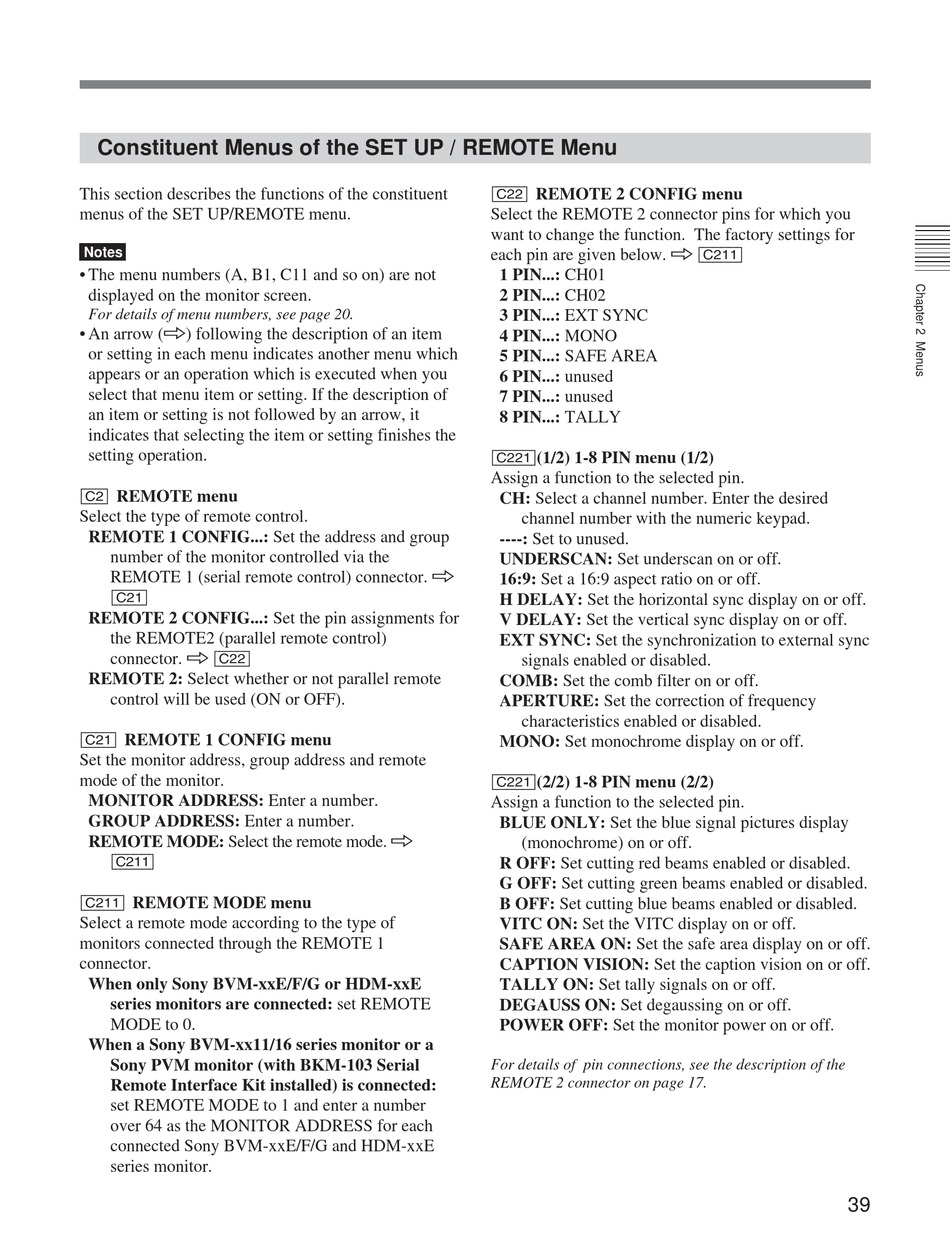

Constituent Menus of the SET UP / REMOTE Menu

This section describes the functions of the constituent
menus of the SET UP/REMOTE menu.
Notes
• The menu numbers (A, B1, C11 and so on) are not
displayed on the monitor screen.
For details of menu numbers, see page 20.
• An arrow (÷) following the description of an item
or setting in each menu indicates another menu which
appears or an operation which is executed when you
select that menu item or setting. If the description of
an item or setting is not followed by an arrow, it
indicates that selecting the item or setting finishes the
setting operation.
[C2] REMOTE menu
Select the type of remote control.
REMOTE 1 CONFIG...: Set the address and group
number of the monitor controlled via the
REMOTE 1 (serial remote control) connector. ÷
[C21]
REMOTE 2 CONFIG...: Set the pin assignments for
the REMOTE2 (parallel remote control)
connector. ÷ [C22]
REMOTE 2: Select whether or not parallel remote
control will be used (ON or OFF).
[C21] REMOTE 1 CONFIG menu
Set the monitor address, group address and remote
mode of the monitor.
MONITOR ADDRESS: Enter a number.
GROUP ADDRESS: Enter a number.
REMOTE MODE: Select the remote mode. ÷
[C211]
[C211] REMOTE MODE menu
Select a remote mode according to the type of
monitors connected through the REMOTE 1
connector.
When only Sony BVM-xxE/F/G or HDM-xxE
series monitors are connected: set REMOTE
MODE to 0.
When a Sony BVM-xx11/16 series monitor or a
Sony PVM monitor (with BKM-103 Serial
Remote Interface Kit installed) is connected:
set REMOTE MODE to 1 and enter a number
over 64 as the MONITOR ADDRESS for each
connected Sony BVM-xxE/F/G and HDM-xxE
series monitor.
[C22] REMOTE 2 CONFIG menu
Select the REMOTE 2 connector pins for which you
want to change the function. The factory settings for
each pin are given below. ÷ [C211]
1 PIN...: CH01
2 PIN...: CH02
3 PIN...: EXT SYNC
4 PIN...: MONO
5 PIN...: SAFE AREA
6 PIN...: unused
7 PIN...: unused
8 PIN...: TALLY
[C221](1/2) 1-8 PIN menu (1/2)
Assign a function to the selected pin.
CH: Select a channel number. Enter the desired
channel number with the numeric keypad.
----: Set to unused.
UNDERSCAN: Set underscan on or off.
16:9: Set a 16:9 aspect ratio on or off.
H DELAY: Set the horizontal sync display on or off.
V DELAY: Set the vertical sync display on or off.
EXT SYNC: Set the synchronization to external sync
signals enabled or disabled.
COMB: Set the comb filter on or off.
APERTURE: Set the correction of frequency
characteristics enabled or disabled.
MONO: Set monochrome display on or off.
[C221](2/2) 1-8 PIN menu (2/2)
Assign a function to the selected pin.
BLUE ONLY: Set the blue signal pictures display
(monochrome) on or off.
R OFF: Set cutting red beams enabled or disabled.
G OFF: Set cutting green beams enabled or disabled.
B OFF: Set cutting blue beams enabled or disabled.
VITC ON: Set the VITC display on or off.
SAFE AREA ON: Set the safe area display on or off.
CAPTION VISION: Set the caption vision on or off.
TALLY ON: Set tally signals on or off.
DEGAUSS ON: Set degaussing on or off.
POWER OFF: Set the monitor power on or off.
For details of pin connections, see the description of the
REMOTE 2 connector on page 17.
