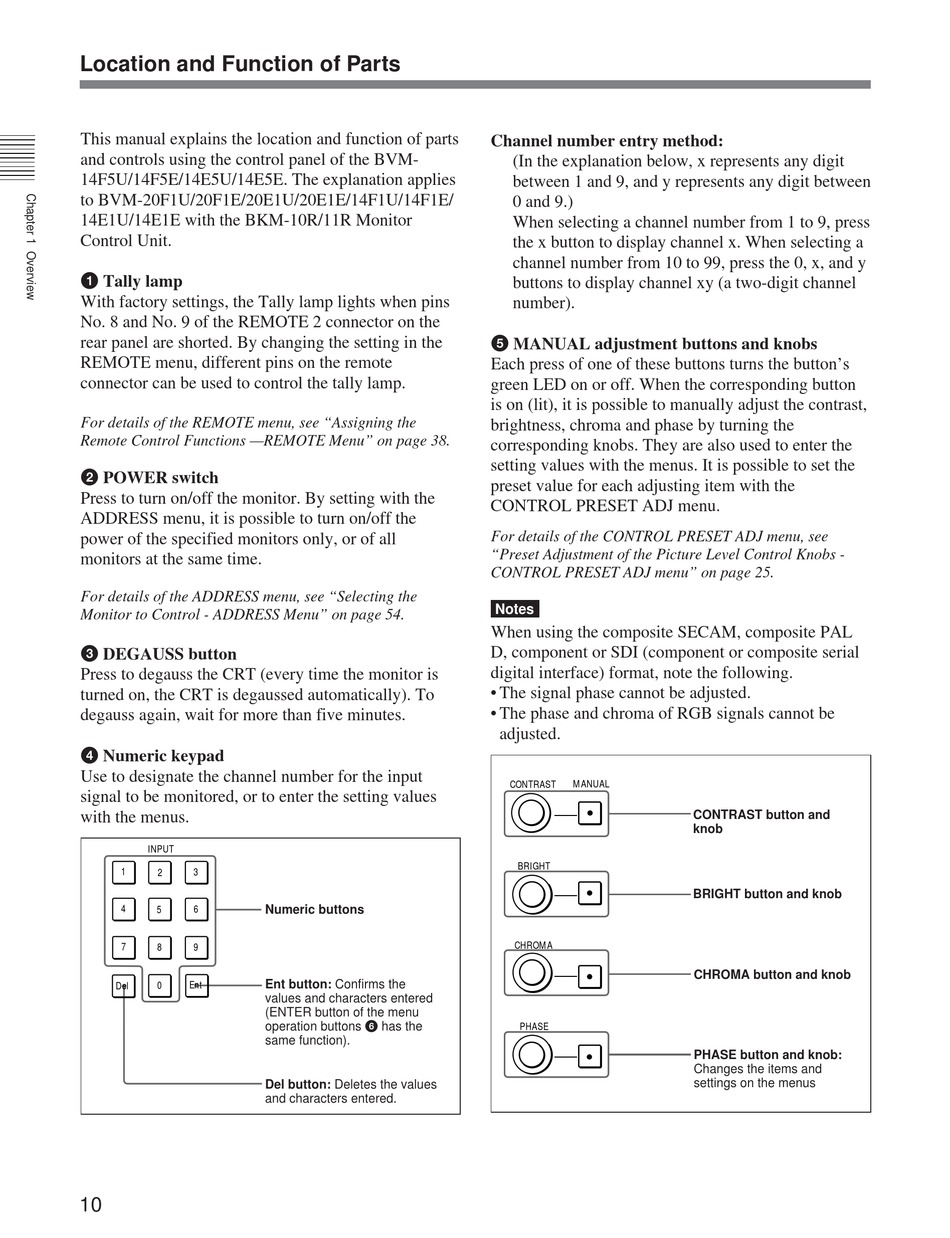

Location and Function of Parts
This manual explains the location and function of parts
and controls using the control panel of the BVM-
14F5U/14F5E/14E5U/14E5E. The explanation applies
to BVM-20F1U/20F1E/20E1U/20E1E/14F1U/14F1E/
14E1U/14E1E with the BKM-10R/11R Monitor
Control Unit.

1 Tally lamp

With factory settings, the Tally lamp lights when pins
No. 8 and No. 9 of the REMOTE 2 connector on the
rear panel are shorted. By changing the setting in the
REMOTE menu, different pins on the remote
connector can be used to control the tally lamp.
For details of the REMOTE menu, see "Assigning the
Remote Control Functions —REMOTE Menu" on page 38.

2 POWER switch

Press to turn on/off the monitor. By setting with the
ADDRESS menu, it is possible to turn on/off the
power of the specified monitors only, or of all
monitors at the same time.
For details of the ADDRESS menu, see "Selecting the
Monitor to Control - ADDRESS Menu" on page 54.

3 DEGAUSS button

Press to degauss the CRT (every time the monitor is
turned on, the CRT is degaussed automatically). To
degauss again, wait for more than five minutes.

4 Numeric keypad

Use to designate the channel number for the input
signal to be monitored, or to enter the setting values
with the menus.
INPUT
1
2 3
4 5 6
7 8 9
0 Ent
Del
10
Numeric buttons
Ent button: Confirms the
values and characters entered
(ENTER button of the menu
operation buttons 6 has the
same function).
Del button: Deletes the values
and characters entered.
Channel number entry method:
(In the explanation below, x represents any digit
between 1 and 9, and y represents any digit between
0 and 9.)
When selecting a channel number from 1 to 9, press
the x button to display channel x. When selecting a
channel number from 10 to 99, press the 0, x, and y
buttons to display channel xy (a two-digit channel
number).
5 MANUAL adjustment buttons and knobs
Each press of one of these buttons turns the button's
green LED on or off. When the corresponding button
is on (lit), it is possible to manually adjust the contrast,
brightness, chroma and phase by turning the
corresponding knobs. They are also used to enter the
setting values with the menus. It is possible to set the
preset value for each adjusting item with the
CONTROL PRESET ADJ menu.
For details of the CONTROL PRESET ADJ menu, see
"Preset Adjustment of the Picture Level Control Knobs -
CONTROL PRESET ADJ menu" on page 25.
Notes
When using the composite SECAM, composite PAL
D, component or SDI (component or composite serial
digital interface) format, note the following.
• The signal phase cannot be adjusted.
• The phase and chroma of RGB signals cannot be
adjusted.
CONTRAST MANUAL
BRIGHT
CHROMA
PHASE
CONTRAST button and
knob
BRIGHT button and knob
CHROMA button and knob
PHASE button and knob:
Changes the items and
settings on the menus
