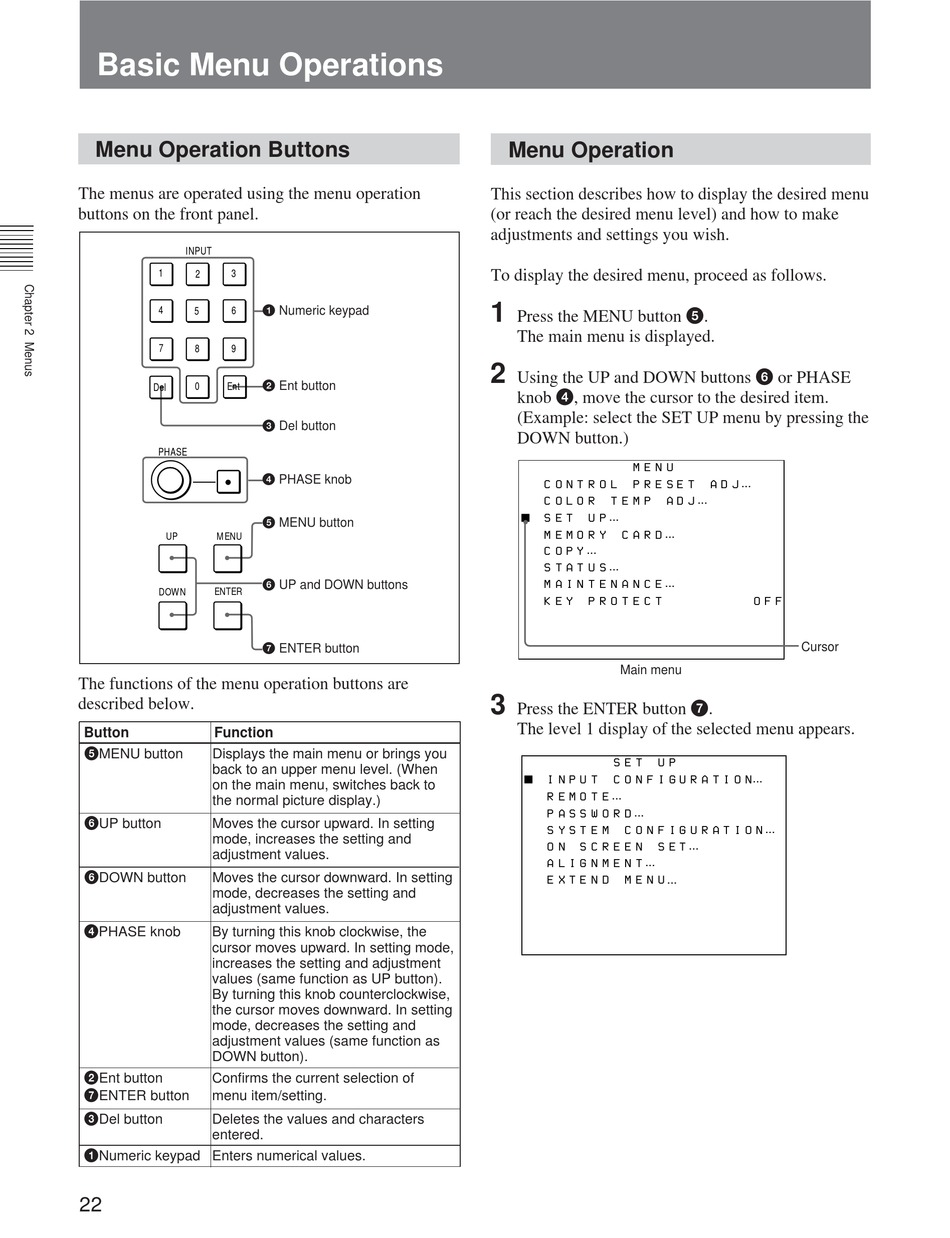

Basic Menu Operations
Basic Menu Operations
Menu Operation Buttons
The menus are operated using the menu operation
buttons on the front panel.
INPUT
1
3
2
4
6
5
7
8
9
0
Ent
Del
PHASE
UP
MENU
ENTER
DOWN
The functions of the menu operation buttons are
described below.
Button
Function
5MENU button
Displays the main menu or brings you
back to an upper menu level. (When
on the main menu, switches back to
the normal picture display.)
6UP button
Moves the cursor upward. In setting
mode, increases the setting and
adjustment values.
6DOWN button
Moves the cursor downward. In setting
mode, decreases the setting and
adjustment values.
4PHASE knob
By turning this knob clockwise, the
cursor moves upward. In setting mode,
increases the setting and adjustment
values (same function as UP button).
By turning this knob counterclockwise,
the cursor moves downward. In setting
mode, decreases the setting and
adjustment values (same function as
DOWN button).
2Ent button
Confirms the current selection of
7ENTER button
menu item/setting.
3Del button
Deletes the values and characters
entered.
1Numeric keypad Enters numerical values.
22
1 Numeric keypad
2 Ent button
3 Del button
4 PHASE knob
5 MENU button
6 UP and DOWN buttons
7 ENTER button
Menu Operation
This section describes how to display the desired menu
(or reach the desired menu level) and how to make
adjustments and settings you wish.
To display the desired menu, proceed as follows.
1
Press the MENU button 5.
The main menu is displayed.
2
Using the UP and DOWN buttons 6 or PHASE
knob 4, move the cursor to the desired item.
(Example: select the SET UP menu by pressing the
DOWN button.)
M E N U
C O N T R O L
P R E S E T
C O L O R
T E M P
A D J . . .
p
S E T
U P . . .
M E M O R Y
C A R D . . .
C O P Y . . .
S T A T U S . . .
M A I N T E N A N C E . . .
K E Y
P R O T E C T
Main menu
3
Press the ENTER button 7.
The level 1 display of the selected menu appears.
S E T
U P
p
I N P U T
C O N F I G U R A T I O N. . .
R E M O T E . . .
P A S S W O R D . . .
S Y S T E M
C O N F I G U R A T I O N . . .
O N
S C R E E N
S E T . . .
A L I G N M E N T . . .
E X T E N D
M E N U
. . .
A D J . . .
O F F
Cursor
