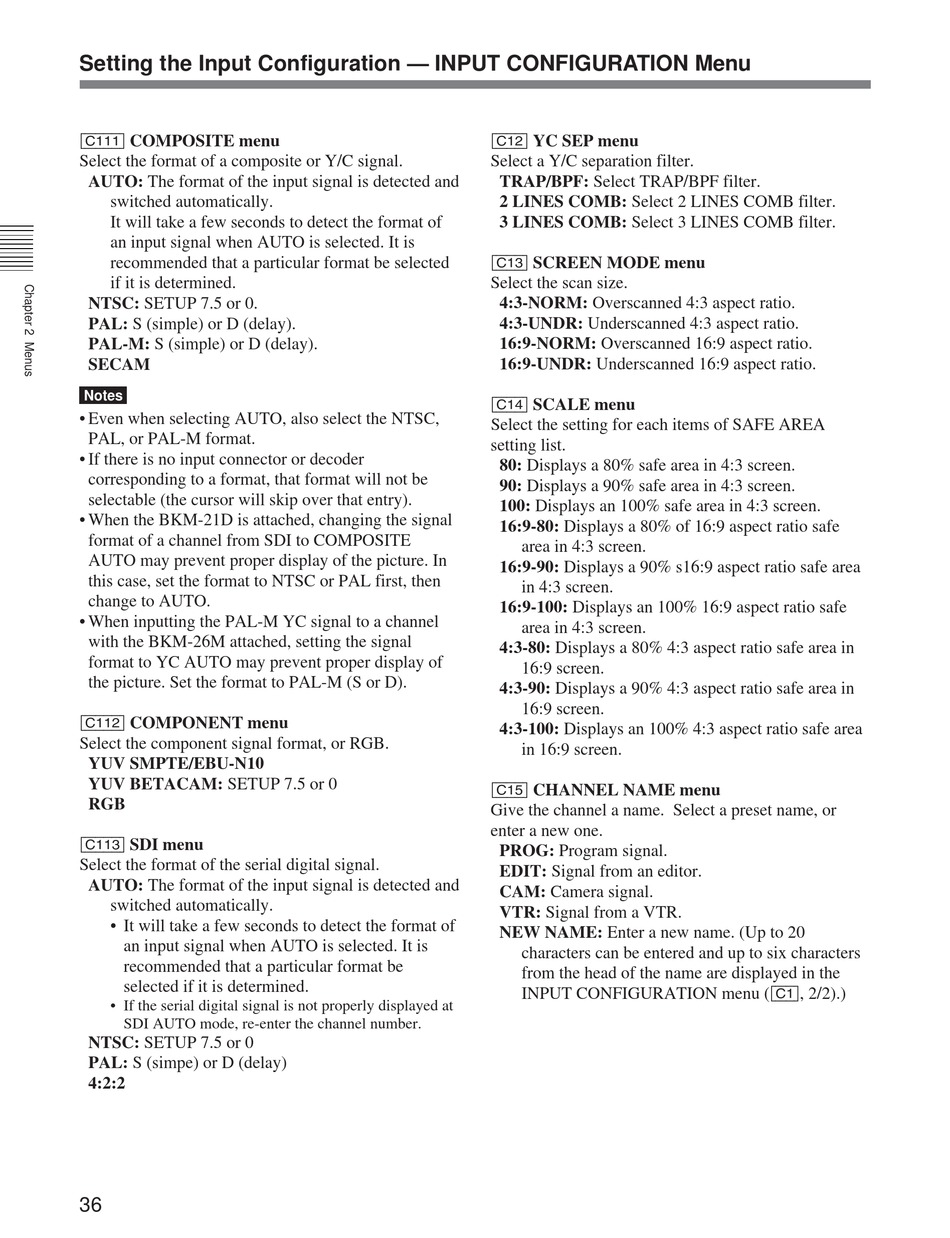

Sony TRINITRON BVM-20F1U, BVM-20F1E, BVM-20E1U, BVM-20E1E, BVM-14F1U, BVM-14F1E, BVM-14E1U, BVM-14E1E, BVM-14F5U, BVM-14F5E, BVM-14E5 Operation Manual Page 40

Sony color video monitor operation manual.
Hide thumbs
  • Contents

Advertisement

Setting the Input Configuration — INPUT CONFIGURATION Menu
[C111] COMPOSITE menu
Select the format of a composite or Y/C signal.
AUTO: The format of the input signal is detected and
switched automatically.
It will take a few seconds to detect the format of
an input signal when AUTO is selected. It is
recommended that a particular format be selected
if it is determined.
NTSC: SETUP 7.5 or 0.
PAL: S (simple) or D (delay).
PAL-M: S (simple) or D (delay).
SECAM
Notes
• Even when selecting AUTO, also select the NTSC,
PAL, or PAL-M format.
• If there is no input connector or decoder
corresponding to a format, that format will not be
selectable (the cursor will skip over that entry).
• When the BKM-21D is attached, changing the signal
format of a channel from SDI to COMPOSITE
AUTO may prevent proper display of the picture. In
this case, set the format to NTSC or PAL first, then
change to AUTO.
• When inputting the PAL-M YC signal to a channel
with the BKM-26M attached, setting the signal
format to YC AUTO may prevent proper display of
the picture. Set the format to PAL-M (S or D).
[C112] COMPONENT menu
Select the component signal format, or RGB.
YUV SMPTE/EBU-N10
YUV BETACAM: SETUP 7.5 or 0
RGB
[C113] SDI menu
Select the format of the serial digital signal.
AUTO: The format of the input signal is detected and
switched automatically.
• It will take a few seconds to detect the format of
an input signal when AUTO is selected. It is
recommended that a particular format be
selected if it is determined.
• If the serial digital signal is not properly displayed at
SDI AUTO mode, re-enter the channel number.
NTSC: SETUP 7.5 or 0
PAL: S (simpe) or D (delay)
4:2:2
36
[C12] YC SEP menu
Select a Y/C separation filter.
TRAP/BPF: Select TRAP/BPF filter.
2 LINES COMB: Select 2 LINES COMB filter.
3 LINES COMB: Select 3 LINES COMB filter.
[C13] SCREEN MODE menu
Select the scan size.
4:3-NORM: Overscanned 4:3 aspect ratio.
4:3-UNDR: Underscanned 4:3 aspect ratio.
16:9-NORM: Overscanned 16:9 aspect ratio.
16:9-UNDR: Underscanned 16:9 aspect ratio.
[C14] SCALE menu
Select the setting for each items of SAFE AREA
setting list.
80: Displays a 80% safe area in 4:3 screen.
90: Displays a 90% safe area in 4:3 screen.
100: Displays an 100% safe area in 4:3 screen.
16:9-80: Displays a 80% of 16:9 aspect ratio safe
area in 4:3 screen.
16:9-90: Displays a 90% s16:9 aspect ratio safe area
in 4:3 screen.
16:9-100: Displays an 100% 16:9 aspect ratio safe
area in 4:3 screen.
4:3-80: Displays a 80% 4:3 aspect ratio safe area in
16:9 screen.
4:3-90: Displays a 90% 4:3 aspect ratio safe area in
16:9 screen.
4:3-100: Displays an 100% 4:3 aspect ratio safe area
in 16:9 screen.
[C15] CHANNEL NAME menu
Give the channel a name. Select a preset name, or
enter a new one.
PROG: Program signal.
EDIT: Signal from an editor.
CAM: Camera signal.
VTR: Signal from a VTR.
NEW NAME: Enter a new name. (Up to 20
characters can be entered and up to six characters
from the head of the name are displayed in the
INPUT CONFIGURATION menu ([C1], 2/2).)
