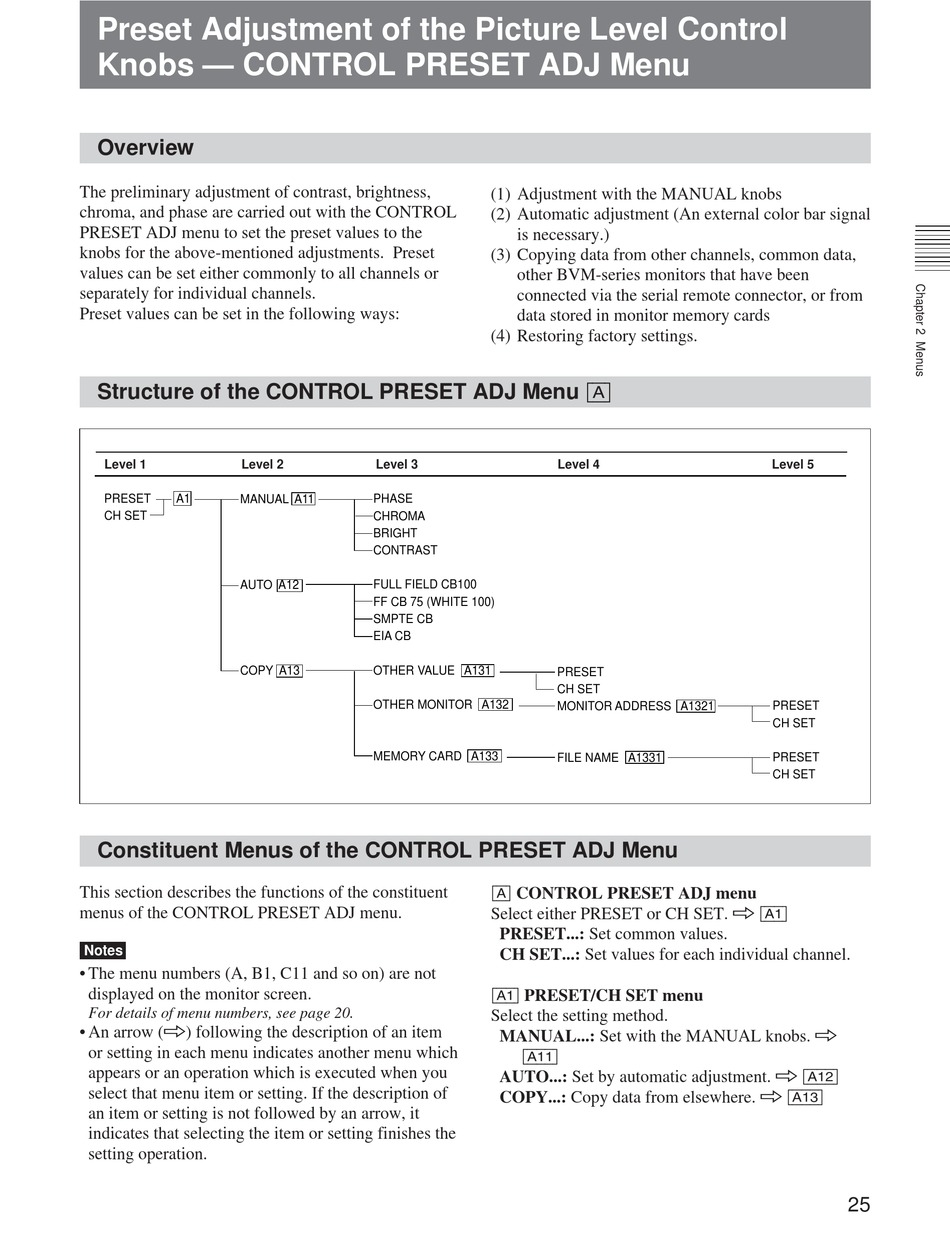

Preset Adjustment of the Picture Level Control
Knobs — CONTROL PRESET ADJ Menu

Overview

The preliminary adjustment of contrast, brightness,
chroma, and phase are carried out with the CONTROL
PRESET ADJ menu to set the preset values to the
knobs for the above-mentioned adjustments. Preset
values can be set either commonly to all channels or
separately for individual channels.
Preset values can be set in the following ways:

Structure of the CONTROL PRESET ADJ Menu [A]

Level 1
Level 2
PRESET
A1
MANUAL A11
CH SET
AUTO A12
COPY A13

Constituent Menus of the CONTROL PRESET ADJ Menu

This section describes the functions of the constituent
menus of the CONTROL PRESET ADJ menu.
Notes
• The menu numbers (A, B1, C11 and so on) are not
displayed on the monitor screen.
For details of menu numbers, see page 20.
• An arrow (÷) following the description of an item
or setting in each menu indicates another menu which
appears or an operation which is executed when you
select that menu item or setting. If the description of
an item or setting is not followed by an arrow, it
indicates that selecting the item or setting finishes the
setting operation.
(1) Adjustment with the MANUAL knobs
(2) Automatic adjustment (An external color bar signal
is necessary.)
(3) Copying data from other channels, common data,
other BVM-series monitors that have been
connected via the serial remote connector, or from
data stored in monitor memory cards
(4) Restoring factory settings.
Level 3
PHASE
CHROMA
BRIGHT
CONTRAST
FULL FIELD CB100
FF CB 75 (WHITE 100)
SMPTE CB
EIA CB
OTHER VALUE A131
OTHER MONITOR A132
MEMORY CARD A133
[A] CONTROL PRESET ADJ menu
Select either PRESET or CH SET. ÷ [A1]
PRESET...: Set common values.
CH SET...: Set values for each individual channel.
[A1] PRESET/CH SET menu
Select the setting method.
MANUAL...: Set with the MANUAL knobs. ÷
[A11]
AUTO...: Set by automatic adjustment. ÷ [A12]
COPY...: Copy data from elsewhere. ÷ [A13]
Level 4
PRESET
CH SET
MONITOR ADDRESS A1321
FILE NAME A1331
Level 5
PRESET
CH SET
PRESET
CH SET
25
