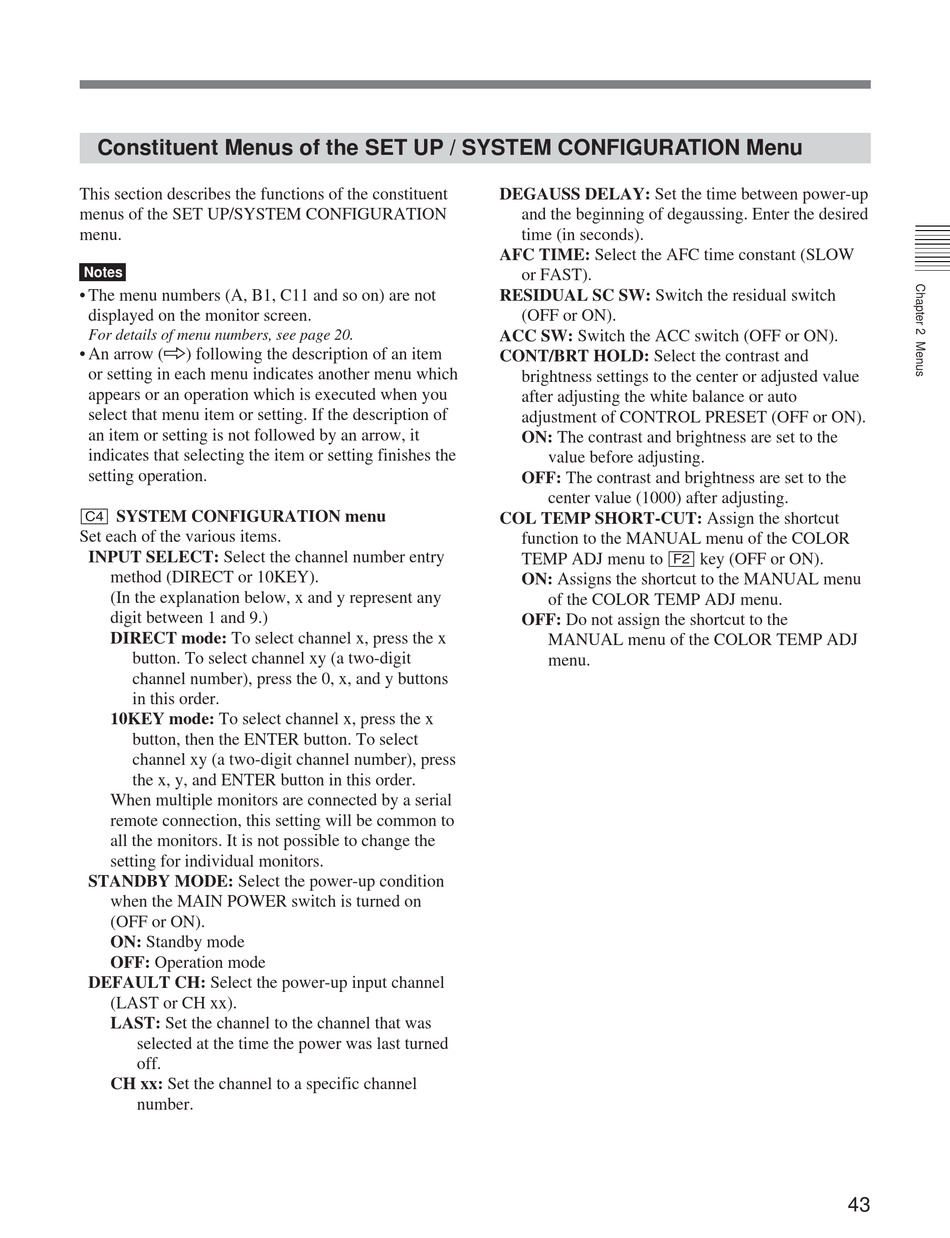

Constituent Menus of the SET UP / SYSTEM CONFIGURATION Menu

This section describes the functions of the constituent
menus of the SET UP/SYSTEM CONFIGURATION
menu.
Notes
• The menu numbers (A, B1, C11 and so on) are not
displayed on the monitor screen.
For details of menu numbers, see page 20.
• An arrow (÷) following the description of an item
or setting in each menu indicates another menu which
appears or an operation which is executed when you
select that menu item or setting. If the description of
an item or setting is not followed by an arrow, it
indicates that selecting the item or setting finishes the
setting operation.
[C4] SYSTEM CONFIGURATION menu
Set each of the various items.
INPUT SELECT: Select the channel number entry
method (DIRECT or 10KEY).
(In the explanation below, x and y represent any
digit between 1 and 9.)
DIRECT mode: To select channel x, press the x
button. To select channel xy (a two-digit
channel number), press the 0, x, and y buttons
in this order.
10KEY mode: To select channel x, press the x
button, then the ENTER button. To select
channel xy (a two-digit channel number), press
the x, y, and ENTER button in this order.
When multiple monitors are connected by a serial
remote connection, this setting will be common to
all the monitors. It is not possible to change the
setting for individual monitors.
STANDBY MODE: Select the power-up condition
when the MAIN POWER switch is turned on
(OFF or ON).
ON: Standby mode
OFF: Operation mode
DEFAULT CH: Select the power-up input channel
(LAST or CH xx).
LAST: Set the channel to the channel that was
selected at the time the power was last turned
off.
CH xx: Set the channel to a specific channel
number.
DEGAUSS DELAY: Set the time between power-up
and the beginning of degaussing. Enter the desired
time (in seconds).
AFC TIME: Select the AFC time constant (SLOW
or FAST).
RESIDUAL SC SW: Switch the residual switch
(OFF or ON).
ACC SW: Switch the ACC switch (OFF or ON).
CONT/BRT HOLD: Select the contrast and
brightness settings to the center or adjusted value
after adjusting the white balance or auto
adjustment of CONTROL PRESET (OFF or ON).
ON: The contrast and brightness are set to the
value before adjusting.
OFF: The contrast and brightness are set to the
center value (1000) after adjusting.
COL TEMP SHORT-CUT: Assign the shortcut
function to the MANUAL menu of the COLOR
TEMP ADJ menu to [F2] key (OFF or ON).
ON: Assigns the shortcut to the MANUAL menu
of the COLOR TEMP ADJ menu.
OFF: Do not assign the shortcut to the
MANUAL menu of the COLOR TEMP ADJ
menu.
43
