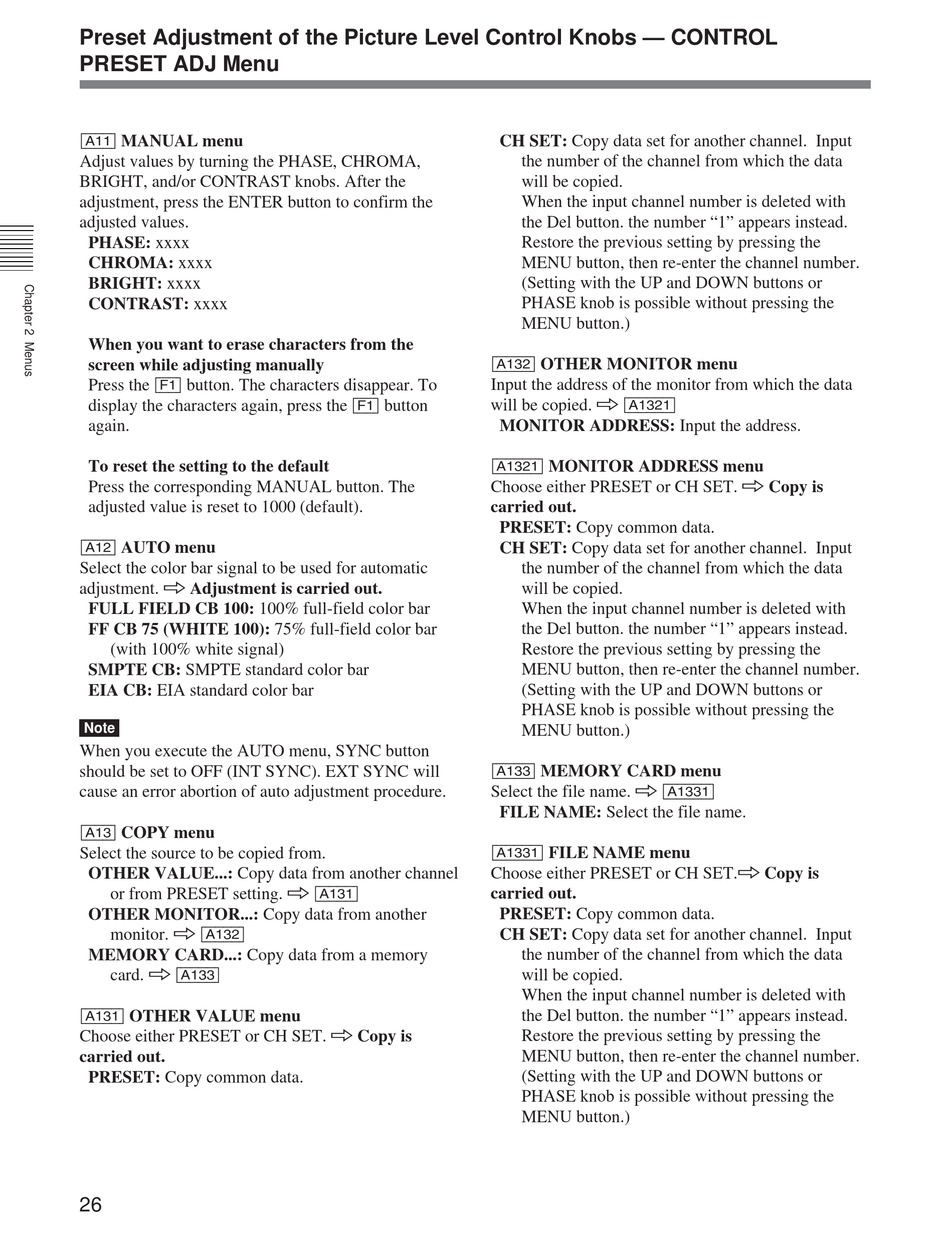

Preset Adjustment of the Picture Level Control Knobs — CONTROL
PRESET ADJ Menu
[A11] MANUAL menu
Adjust values by turning the PHASE, CHROMA,
BRIGHT, and/or CONTRAST knobs. After the
adjustment, press the ENTER button to confirm the
adjusted values.
PHASE: xxxx
CHROMA: xxxx
BRIGHT: xxxx
CONTRAST: xxxx
When you want to erase characters from the
screen while adjusting manually
Press the [F1] button. The characters disappear. To
display the characters again, press the [F1] button
again.
To reset the setting to the default
Press the corresponding MANUAL button. The
adjusted value is reset to 1000 (default).
[A12] AUTO menu
Select the color bar signal to be used for automatic
adjustment. ÷ Adjustment is carried out.
FULL FIELD CB 100: 100% full-field color bar
FF CB 75 (WHITE 100): 75% full-field color bar
(with 100% white signal)
SMPTE CB: SMPTE standard color bar
EIA CB: EIA standard color bar
Note
When you execute the AUTO menu, SYNC button
should be set to OFF (INT SYNC). EXT SYNC will
cause an error abortion of auto adjustment procedure.
[A13] COPY menu
Select the source to be copied from.
OTHER VALUE...: Copy data from another channel
or from PRESET setting. ÷ [A131]
OTHER MONITOR...: Copy data from another
monitor. ÷ [A132]
MEMORY CARD...: Copy data from a memory
card. ÷ [A133]
[A131] OTHER VALUE menu
Choose either PRESET or CH SET. ÷ Copy is
carried out.
PRESET: Copy common data.
26
CH SET: Copy data set for another channel. Input
the number of the channel from which the data
will be copied.
When the input channel number is deleted with
the Del button. the number "1" appears instead.
Restore the previous setting by pressing the
MENU button, then re-enter the channel number.
(Setting with the UP and DOWN buttons or
PHASE knob is possible without pressing the
MENU button.)
[A132] OTHER MONITOR menu
Input the address of the monitor from which the data
will be copied. ÷ [A1321]
MONITOR ADDRESS: Input the address.
[A1321] MONITOR ADDRESS menu
Choose either PRESET or CH SET. ÷ Copy is
carried out.
PRESET: Copy common data.
CH SET: Copy data set for another channel. Input
the number of the channel from which the data
will be copied.
When the input channel number is deleted with
the Del button. the number "1" appears instead.
Restore the previous setting by pressing the
MENU button, then re-enter the channel number.
(Setting with the UP and DOWN buttons or
PHASE knob is possible without pressing the
MENU button.)
[A133] MEMORY CARD menu
Select the file name. ÷ [A1331]
FILE NAME: Select the file name.
[A1331] FILE NAME menu
Choose either PRESET or CH SET.÷ Copy is
carried out.
PRESET: Copy common data.
CH SET: Copy data set for another channel. Input
the number of the channel from which the data
will be copied.
When the input channel number is deleted with
the Del button. the number "1" appears instead.
Restore the previous setting by pressing the
MENU button, then re-enter the channel number.
(Setting with the UP and DOWN buttons or
PHASE knob is possible without pressing the
MENU button.)
