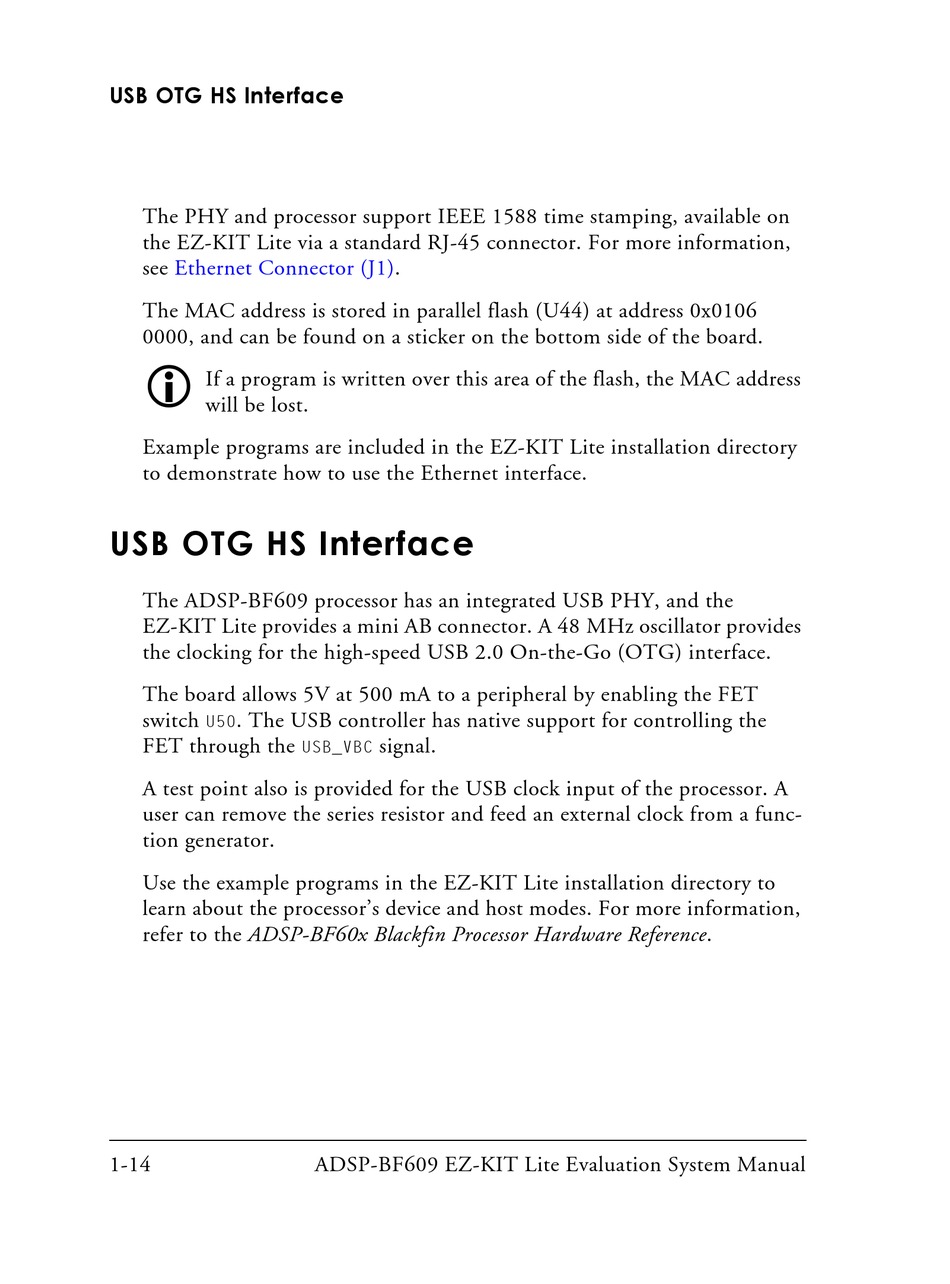

USB OTG HS Interface

The PHY and processor support IEEE 1588 time stamping, available on
the EZ-KIT Lite via a standard RJ-45 connector. For more information,
see Ethernet Connector
The MAC address is stored in parallel flash (U44) at address 0x0106
0000, and can be found on a sticker on the bottom side of the board.

If a program is written over this area of the flash, the MAC address
will be lost.
Example programs are included in the EZ-KIT Lite installation directory
to demonstrate how to use the Ethernet interface.
USB OTG HS Interface
The ADSP-BF609 processor has an integrated USB PHY, and the
EZ-KIT Lite provides a mini AB connector. A 48 MHz oscillator provides
the clocking for the high-speed USB 2.0 On-the-Go (OTG) interface.
The board allows 5V at 500 mA to a peripheral by enabling the FET
switch . The USB controller has native support for controlling the
U50
FET through the
A test point also is provided for the USB clock input of the processor. A
user can remove the series resistor and feed an external clock from a func-
tion generator.
Use the example programs in the EZ-KIT Lite installation directory to
learn about the processor's device and host modes. For more information,
refer to the ADSP-BF60x Blackfin Processor Hardware Reference.
