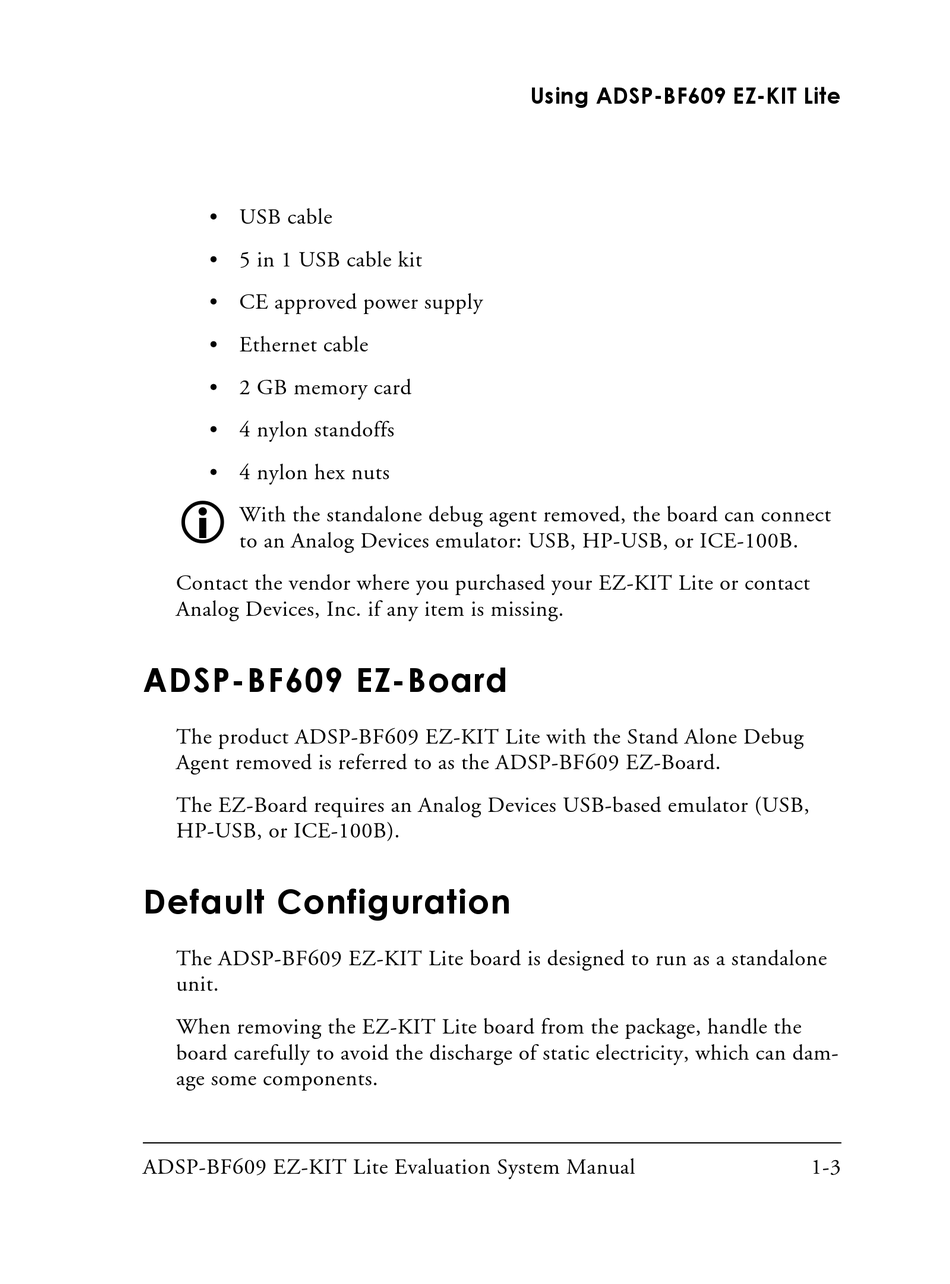

• USB cable
• 5 in 1 USB cable kit
• CE approved power supply
• Ethernet cable
• 2 GB memory card
• 4 nylon standoffs
• 4 nylon hex nuts
With the standalone debug agent removed, the board can connect
to an Analog Devices emulator: USB, HP-USB, or ICE-100B.
Contact the vendor where you purchased your EZ-KIT Lite or contact
Analog Devices, Inc. if any item is missing.

ADSP-BF609 EZ-Board

The product ADSP-BF609 EZ-KIT Lite with the Stand Alone Debug
Agent removed is referred to as the ADSP-BF609 EZ-Board.
The EZ-Board requires an Analog Devices USB-based emulator (USB,
HP-USB, or ICE-100B).

Default Configuration

The ADSP-BF609 EZ-KIT Lite board is designed to run as a standalone
unit.
When removing the EZ-KIT Lite board from the package, handle the
board carefully to avoid the discharge of static electricity, which can dam-
age some components.
