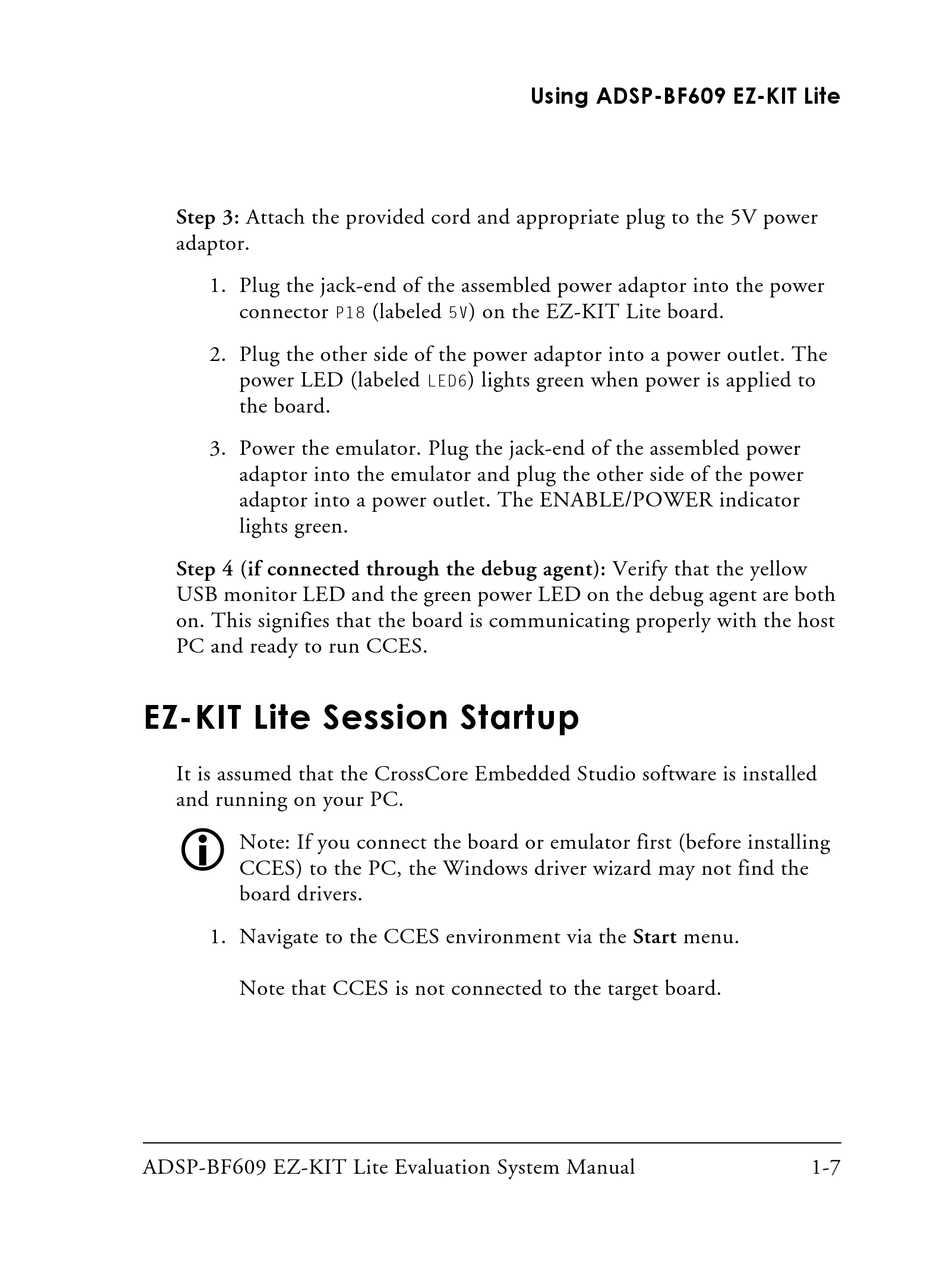

Step 3: Attach the provided cord and appropriate plug to the 5V power
adaptor.
1. Plug the jack-end of the assembled power adaptor into the power
connector
2. Plug the other side of the power adaptor into a power outlet. The
power LED (labeled
the board.
3. Power the emulator. Plug the jack-end of the assembled power
adaptor into the emulator and plug the other side of the power
adaptor into a power outlet. The ENABLE/POWER indicator
lights green.
Step 4 (if connected through the debug agent): Verify that the yellow
USB monitor LED and the green power LED on the debug agent are both
on. This signifies that the board is communicating properly with the host
PC and ready to run CCES.
EZ-KIT Lite Session Startup
It is assumed that the CrossCore Embedded Studio software is installed
and running on your PC.
Note: If you connect the board or emulator first (before installing
CCES) to the PC, the Windows driver wizard may not find the
board drivers.
1. Navigate to the CCES environment via the Start menu.
Note that CCES is not connected to the target board.
ADSP-BF609 EZ-KIT Lite Evaluation System Manual
(labeled
) on the EZ-KIT Lite board.
P18
5V
) lights green when power is applied to
LED6
Using ADSP-BF609 EZ-KIT Lite
1-7
