Page 3: Table Of Contents

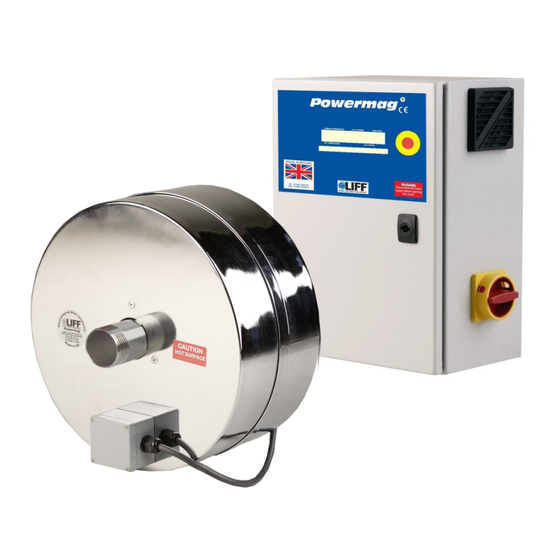

Contents General Notes Installation Electrical notes Troubleshooting guide Specifications Spare parts Powermag warranty General Notes Powermag is a WRAS approved electromagnetic physical water conditioner that uses the principles of magnetism to remove hard crystalline scale within hot and cold water services. The Powermag sets up a specific magnetic field which has an effect on the hardness salts within the water. -
Page 4: Installation
Installation The unit should be installed directly in-line on any of the following materials; copper, PVC, or galvanized pipework. To ensure that the unit is adequately supported and does not place excessive strain on the existing pipework, we recommend using additional support brackets (not supplied) on the inlet and outlet pipework. - Page 5 Disconnect the mains supply before opening this illuminate when service interval has been BWT UK Ltd cover reached - please contact BWT Service when this occurs) Set Temperature: Maximum temperature setting for thermistor circuit Isolation Coil Status: Current status of coil (Coil Active...
-
Page 6: Electrical Notes
Electrical Notes Identifying the main components Fan exhaust filter Display brightness (must be kept clean) control PCB electronic control Smoothing Fault Exhaust capacitor relay filter Transformer diode MCB AC MCB Mains MCB DC Cooling supply protection supply Bridge rectifier assembly Isolation switch Fan inlet... -
Page 7: Troubleshooting Guide
Troubleshooting Guide The following fault table is provided as a guide to resolving operational issues with the Powermag system. Any fault diagnosis must be conducted by a suitably qualified electrical engineer. Problem Probable cause Recommended solution Coil remains inactive Inlet water temperature Re-set the thermistor is above the set point control to suit the... -
Page 8: Specifications
Fan kit PMFAN3 Fan Filter Pack (5 Filters) PMFILPK Fault relay PMREL1 Electronic display PMDB1 Smoothing capacitor PMCAP Thermistor with lead PMTHL EMF diode PMEMF For spares orders please contact BWT on: Tel: 01494 838107 Fax: 01494 523833 Email: commercial@bwt-uk.co.uk Notes... - Page 9 Specifications Mechanical specification P100 P150 P200 P250 P300 P400 Pipe size BSP 1" 1½" 2" 2½" 3" 4" (male) Coil diameter (mm) Coil width (mm) Overall length (mm) Coil weight (kg) Max flow 12.0 rate (l/sec) Frictional <0.2 <0.2 <0.2 <0.2 <0.2 <0.2...
-
Page 10: Powermag Warranty
Conditions and Terms of the Warranty: This warranty provides benefits, which are additional to, and do not affect, your legal rights. BWT UK will replace or exchange any necessary parts to repair free of charge any Powermag supplied by BWT UK or it’s agents,... - Page 12 BWT UK Ltd, BWT House, The Gateway Centre Coronation Road, High Wycombe, Buckinghamshire HP12 3SU Tel: 01494 838107 Fax: 01494 523833 Email: commercial@bwt-uk.co.uk www.bwt-uk.co.uk In the interest of product development we reserve the right to alter specification without prior notice.
- Page 13 Note the power consumption is related to the flux capacity of the unit chosen. The voltage supplied to the coil has been optimised to give the required gauss rating BWT UK Limited, BWT House, The Gateway Centre, Coronation Road, High Wycombe, Buckinghamshire. HP12 3SU Tel: + 44 (0)1494 838100 Fax: +44 (0)1494 838137 Email: enquiries@bwt-uk.co.uk www.bwt-uk.co.uk...
- Page 14 Ø 190mm 180mm BWT endeavour to ensure that the information in this document is correct and fairly stated, but does not accept any liability for any error or omission. The development of BWT products is continuous and published information may be out of date. Please check with BWT UK for final specifications BWT UK Limited, BWT House, The Gateway Centre, Coronation Road, High Wycombe, Buckinghamshire.
