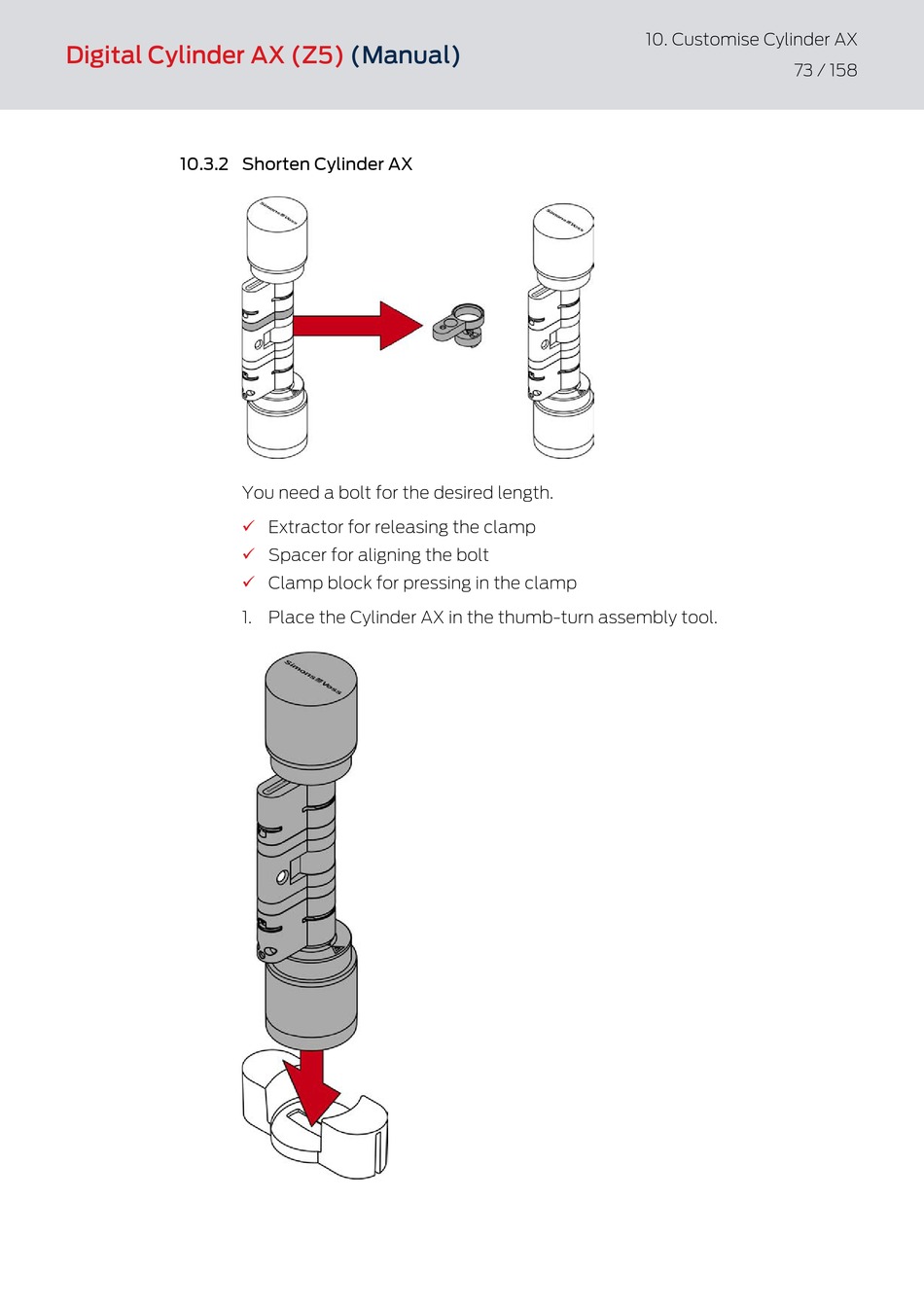

Digital Cylinder AX (Z5)
10.3.2 Shorten Cylinder AX
(Manual)
You need a bolt for the desired length.
Extractor for releasing the clamp
ü
ü
Spacer for aligning the bolt
ü
Clamp block for pressing in the clamp
1. Place the Cylinder AX in the thumb-turn assembly tool.
10. Customise Cylinder AX
73 / 158
