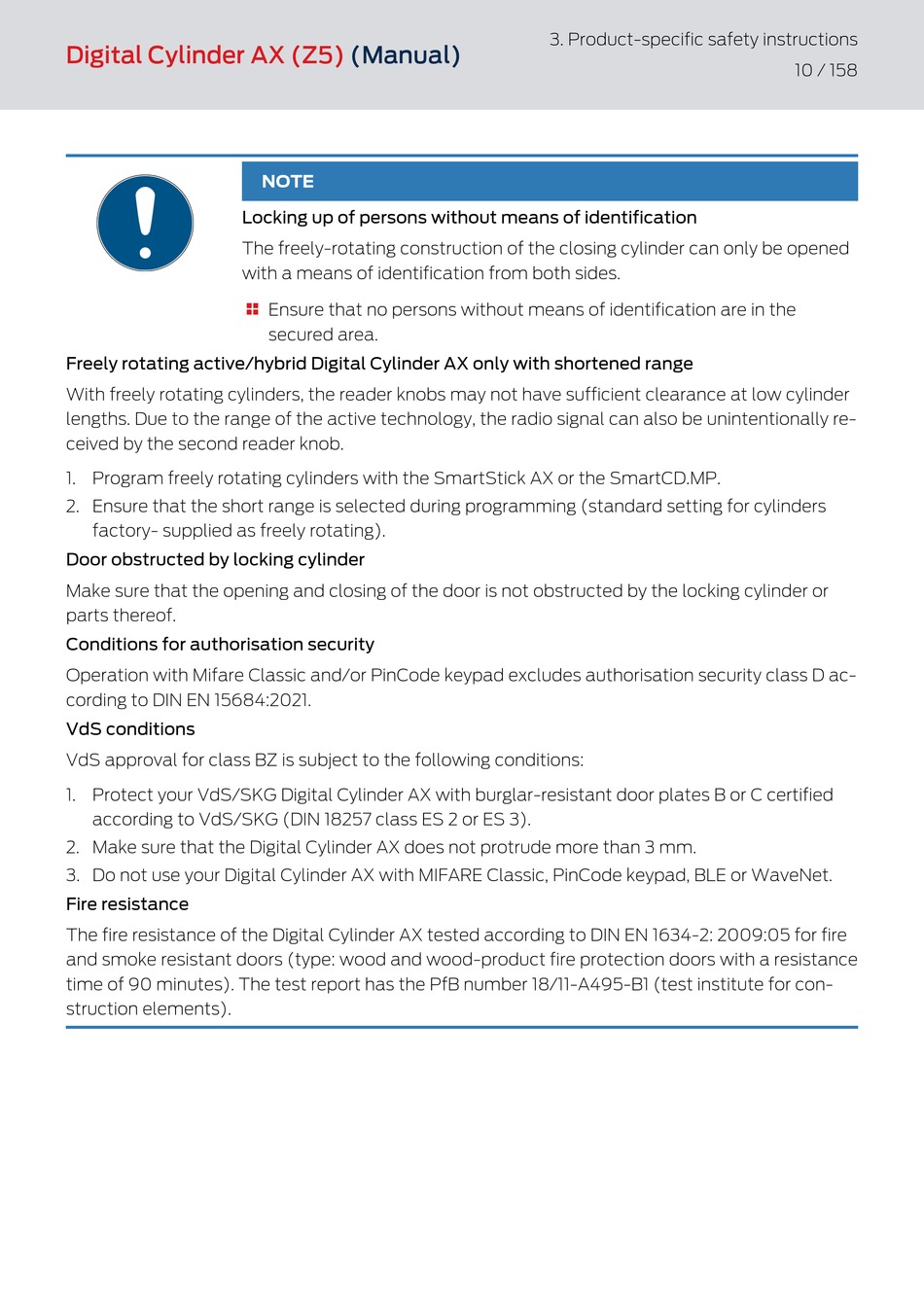

Digital Cylinder AX (Z5)
Freely rotating active/hybrid Digital Cylinder AX only with shortened range
With freely rotating cylinders, the reader knobs may not have sufficient clearance at low cylinder
lengths. Due to the range of the active technology, the radio signal can also be unintentionally re-
ceived by the second reader knob.
1. Program freely rotating cylinders with the SmartStick AX or the SmartCD.MP.
2. Ensure that the short range is selected during programming (standard setting for cylinders
factory- supplied as freely rotating).
Door obstructed by locking cylinder
Make sure that the opening and closing of the door is not obstructed by the locking cylinder or
parts thereof.
Conditions for authorisation security
Operation with Mifare Classic and/or PinCode keypad excludes authorisation security class D ac-
cording to DIN EN 15684:2021.
VdS conditions
VdS approval for class BZ is subject to the following conditions:
1. Protect your VdS/SKG Digital Cylinder AX with burglar-resistant door plates B or C certified
according to VdS/SKG (DIN 18257 class ES 2 or ES 3).
2. Make sure that the Digital Cylinder AX does not protrude more than 3 mm.
3. Do not use your Digital Cylinder AX with MIFARE Classic, PinCode keypad, BLE or WaveNet.
Fire resistance
The fire resistance of the Digital Cylinder AX tested according to DIN EN 1634-2: 2009:05 for fire
and smoke resistant doors (type: wood and wood-product fire protection doors with a resistance
time of 90 minutes). The test report has the PfB number 18/11-A495-B1 (test institute for con-
struction elements).
(Manual)
NOTE
Locking up of persons without means of identification
The freely-rotating construction of the closing cylinder can only be opened
with a means of identification from both sides.
Ensure that no persons without means of identification are in the

secured area.
3. Product-specific safety instructions
10 / 158
