10. Customise Cylinder AX
Digital Cylinder AX (Z5)
(Manual)
118 / 158

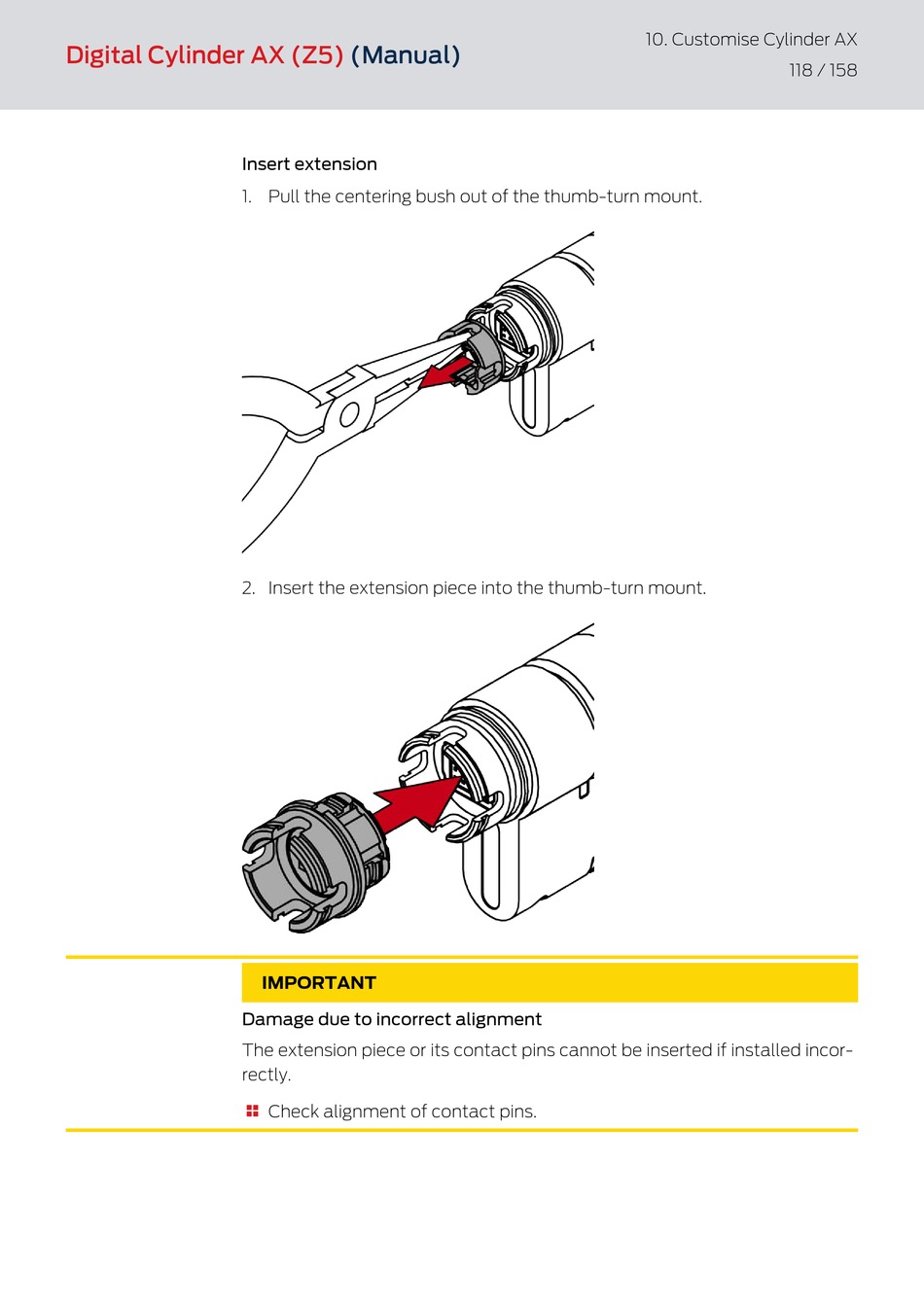

Insert extension
1. Pull the centering bush out of the thumb-turn mount.
2. Insert the extension piece into the thumb-turn mount.
IMPORTANT
Damage due to incorrect alignment
The extension piece or its contact pins cannot be inserted if installed incor-
rectly.
Check alignment of contact pins.
