Digital Cylinder AX (Z5)

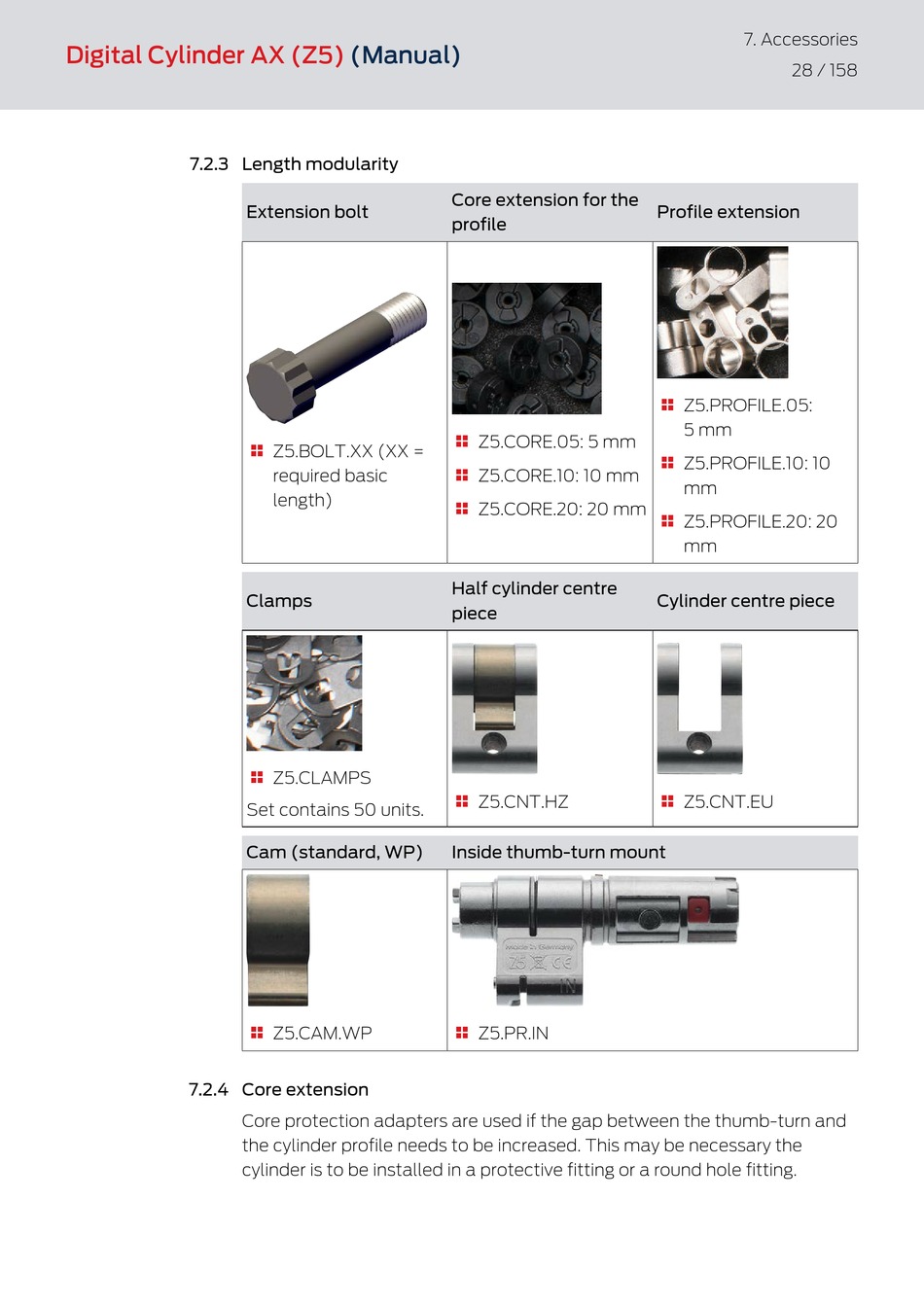

7.2.3 Length modularity

7.2.4 Core extension

(Manual)
Extension bolt
Z5.BOLT.XX (XX =

required basic
length)
Clamps
Z5.CLAMPS

Set contains 50 units.
Cam (standard, WP)
Z5.CAM.WP

Core protection adapters are used if the gap between the thumb-turn and
the cylinder profile needs to be increased. This may be necessary the
cylinder is to be installed in a protective fitting or a round hole fitting.
Core extension for the
profile
Z5.CORE.05: 5 mm

Z5.CORE.10: 10 mm

Z5.CORE.20: 20 mm

Half cylinder centre
piece
Z5.CNT.HZ

Inside thumb-turn mount
Z5.PR.IN

7. Accessories
28 / 158
Profile extension
Z5.PROFILE.05:

5 mm
Z5.PROFILE.10: 10

mm
Z5.PROFILE.20: 20

mm
Cylinder centre piece
Z5.CNT.EU

