Digital Cylinder AX (Z5)
(Manual)

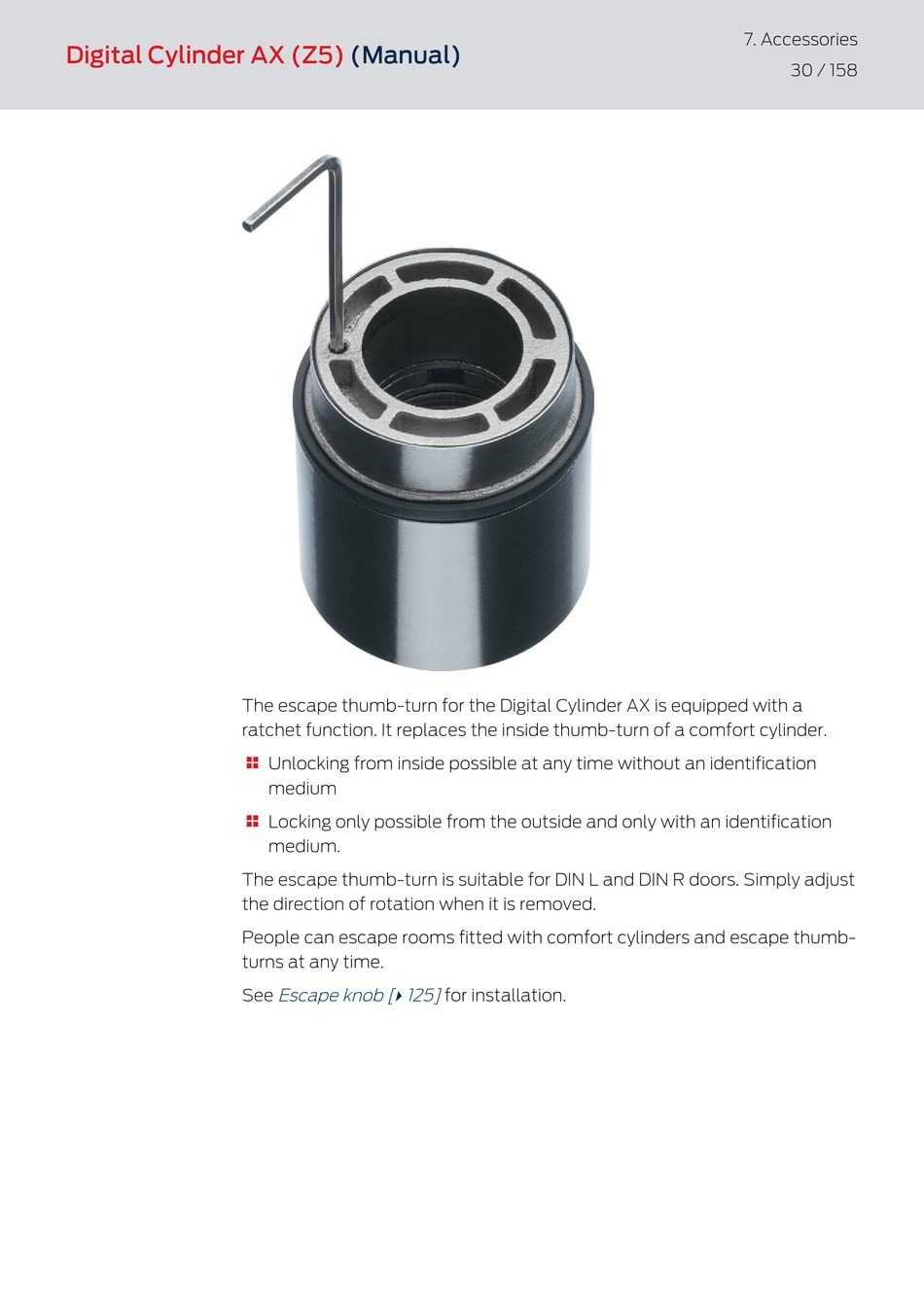

The escape thumb-turn for the Digital Cylinder AX is equipped with a
ratchet function. It replaces the inside thumb-turn of a comfort cylinder.
Unlocking from inside possible at any time without an identification
medium
Locking only possible from the outside and only with an identification
medium.
The escape thumb-turn is suitable for DIN L and DIN R doors. Simply adjust
the direction of rotation when it is removed.
People can escape rooms fitted with comfort cylinders and escape thumb-
turns at any time.
Escape knob [
125]
See
}
for installation.
7. Accessories
30 / 158
