Digital Cylinder AX (Z5)

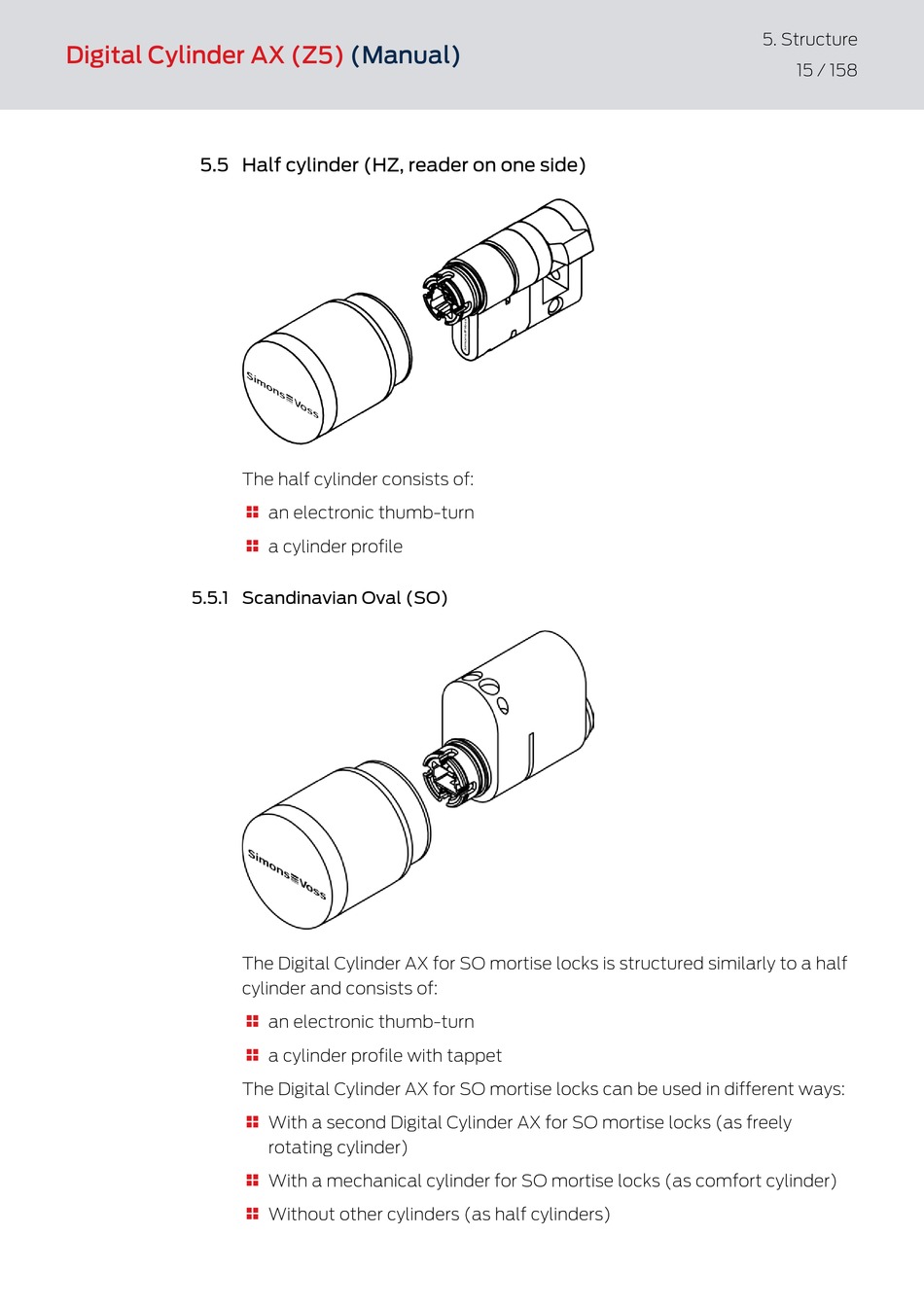

5.5 Half cylinder (HZ, reader on one side)
5.5.1 Scandinavian Oval (SO)
(Manual)
The half cylinder consists of:
an electronic thumb-turn
a cylinder profile
The Digital Cylinder AX for SO mortise locks is structured similarly to a half
cylinder and consists of:
an electronic thumb-turn
a cylinder profile with tappet
The Digital Cylinder AX for SO mortise locks can be used in different ways:
With a second Digital Cylinder AX for SO mortise locks (as freely
rotating cylinder)
With a mechanical cylinder for SO mortise locks (as comfort cylinder)
Without other cylinders (as half cylinders)
5. Structure
15 / 158
