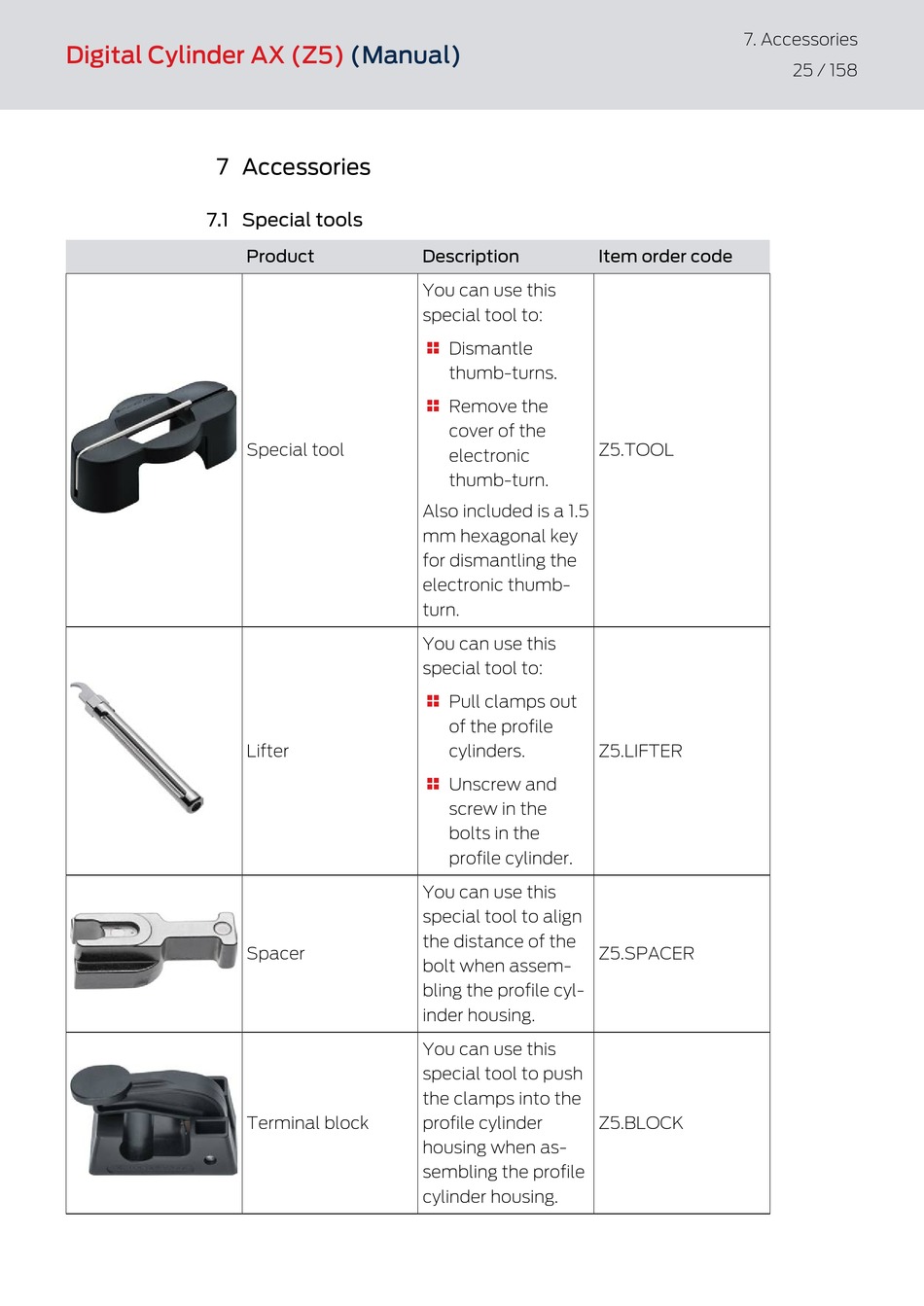

Digital Cylinder AX (Z5)
7 Accessories
7.1 Special tools
(Manual)
Product
Special tool
Lifter
Spacer
Terminal block
Description
You can use this
special tool to:
Dismantle
thumb-turns.
Remove the
cover of the
electronic
thumb-turn.
Also included is a 1.5
mm hexagonal key
for dismantling the
electronic thumb-
turn.
You can use this
special tool to:
Pull clamps out
of the profile
cylinders.
Unscrew and
screw in the
bolts in the
profile cylinder.
You can use this
special tool to align
the distance of the
bolt when assem-
bling the profile cyl-
inder housing.
You can use this
special tool to push
the clamps into the
profile cylinder
housing when as-
sembling the profile
cylinder housing.
7. Accessories
Item order code
Z5.TOOL
Z5.LIFTER
Z5.SPACER
Z5.BLOCK
25 / 158
