9.2 Detailed descriptions (individual steps)

9.2.1 Mounting thumb-turn (mech.)

(Manual)

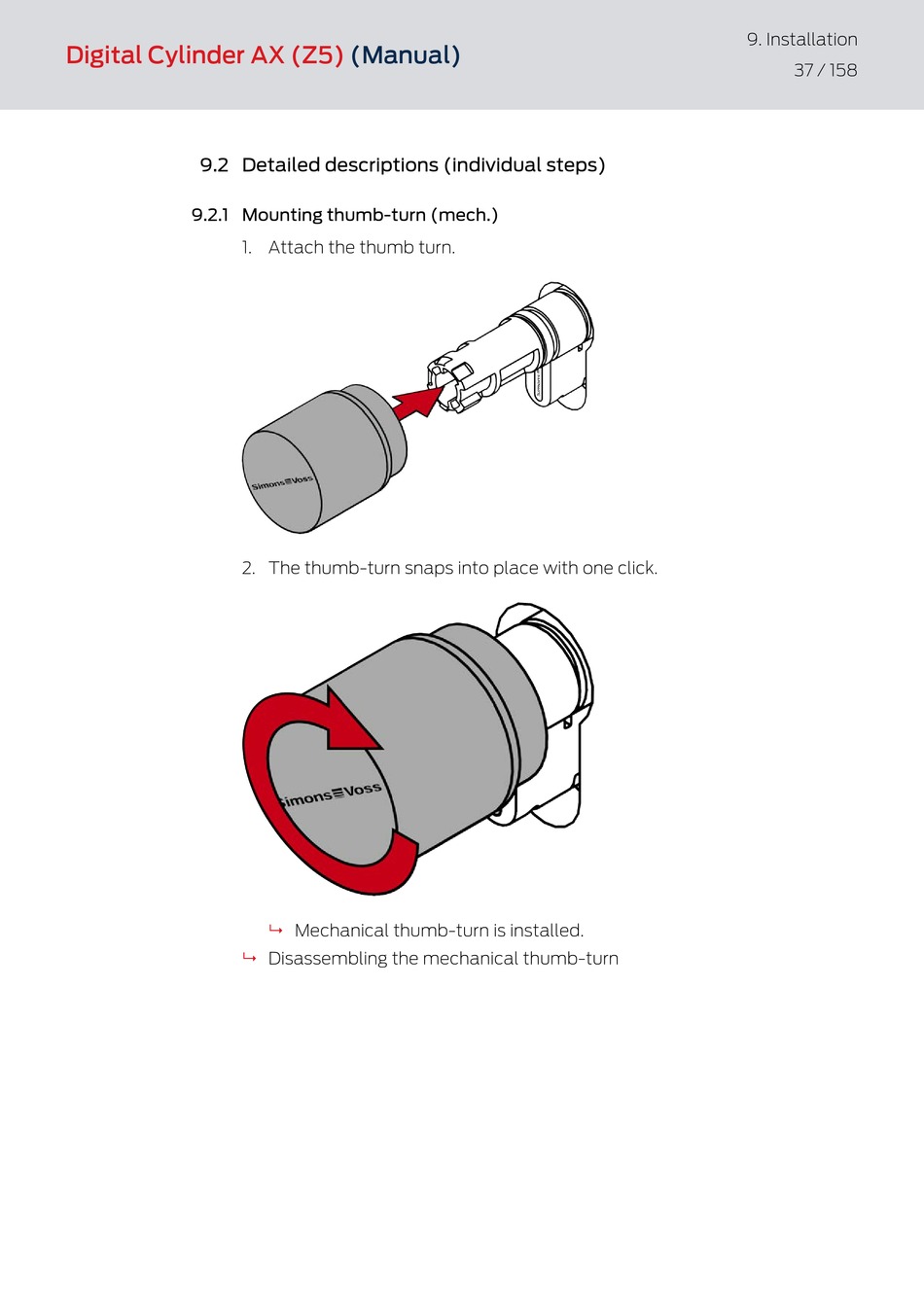

1. Attach the thumb turn.
2. The thumb-turn snaps into place with one click.
Mechanical thumb-turn is installed.
