Digital Cylinder AX (Z5)
(Manual)
ü
Extractor for releasing the clamp
Spacer for aligning the extension bolt
ü
Clamp block for pressing in the clamp
ü
ü
Half Cylinder Center Section

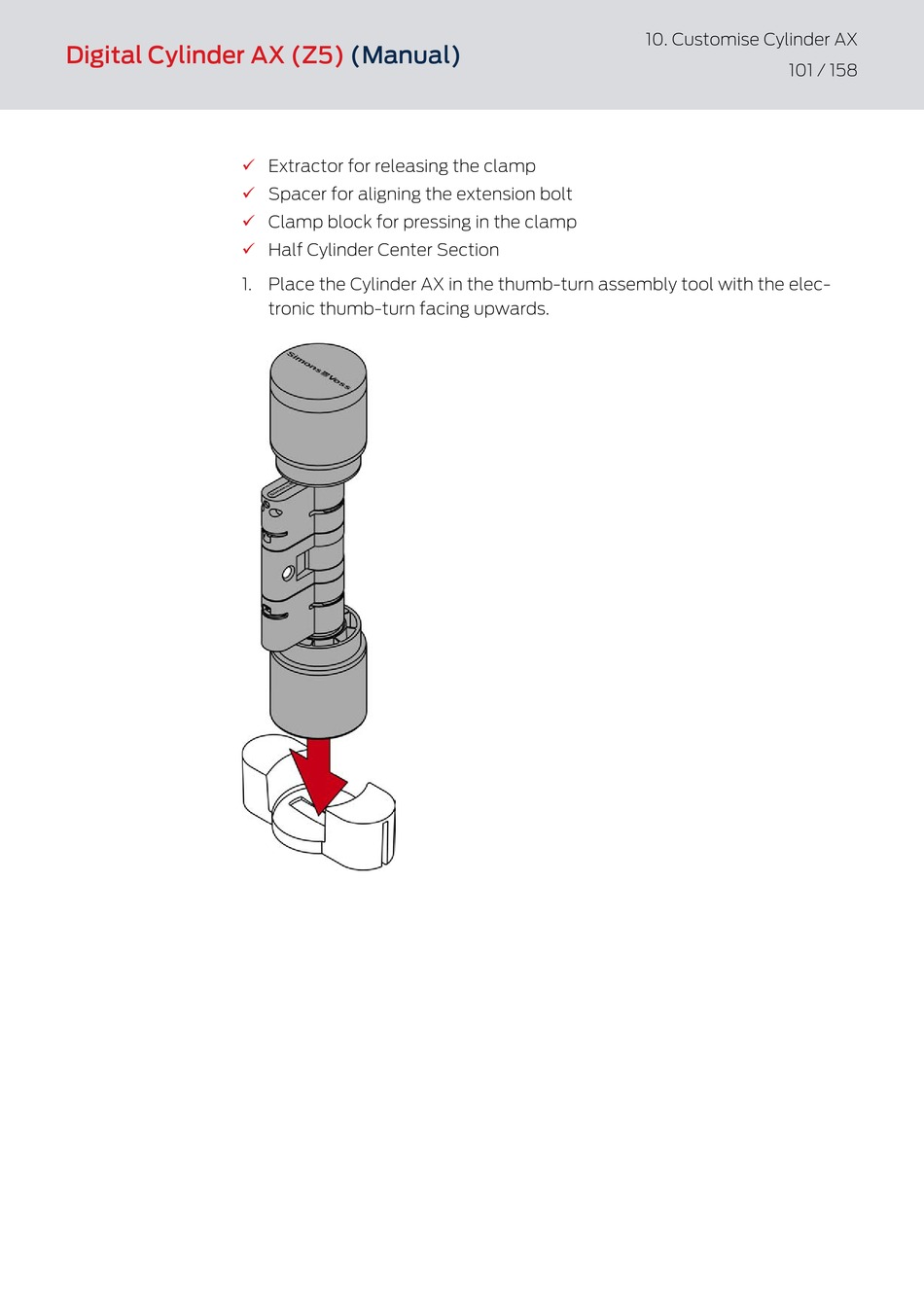

1. Place the Cylinder AX in the thumb-turn assembly tool with the elec-
tronic thumb-turn facing upwards.
