The lever of the clamping block is reinforced at one point with a
metal plate. The bracket that was previously inserted lies opposite
this metal plate.

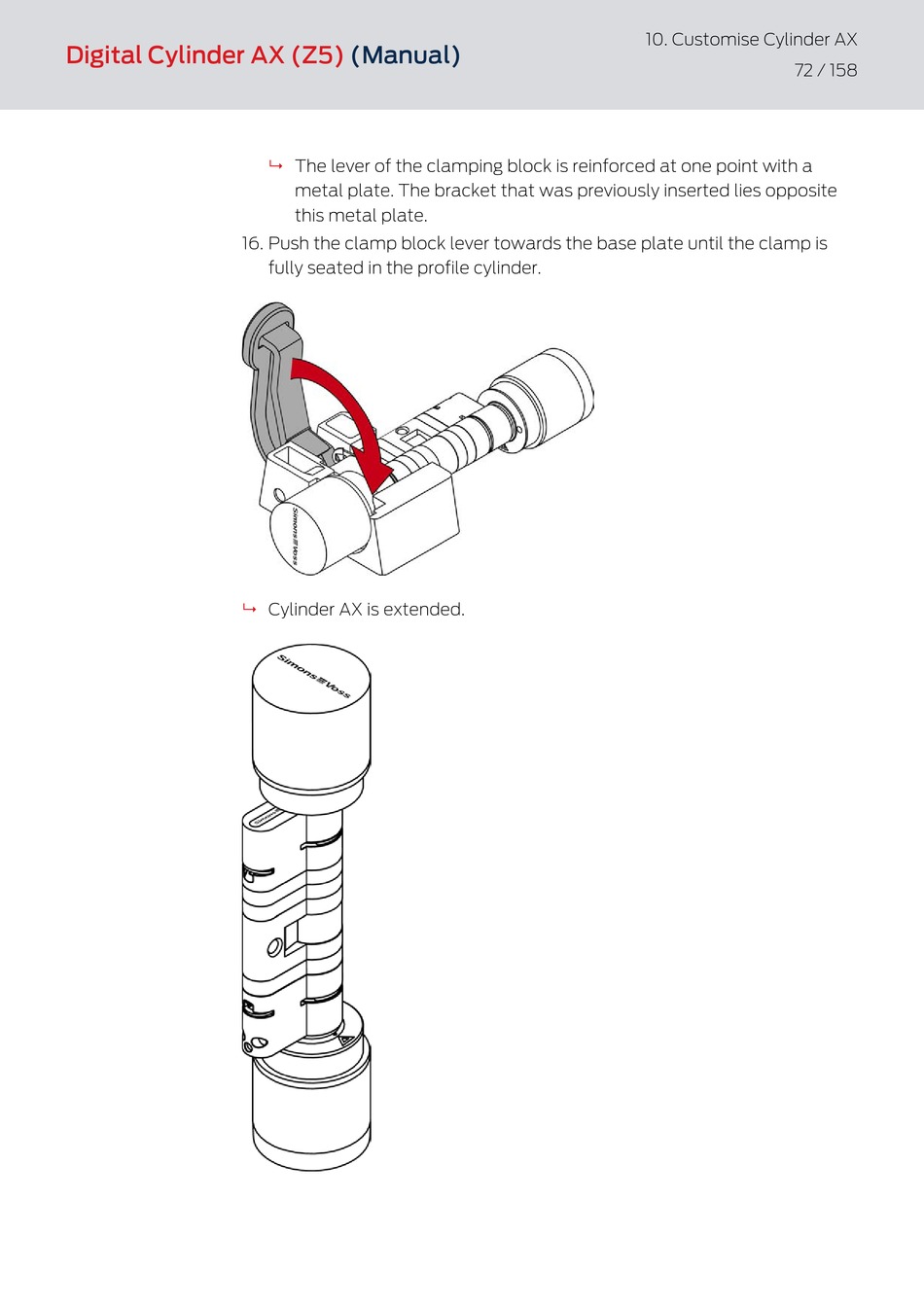

16. Push the clamp block lever towards the base plate until the clamp is
fully seated in the profile cylinder.
9
Cylinder AX is extended.
