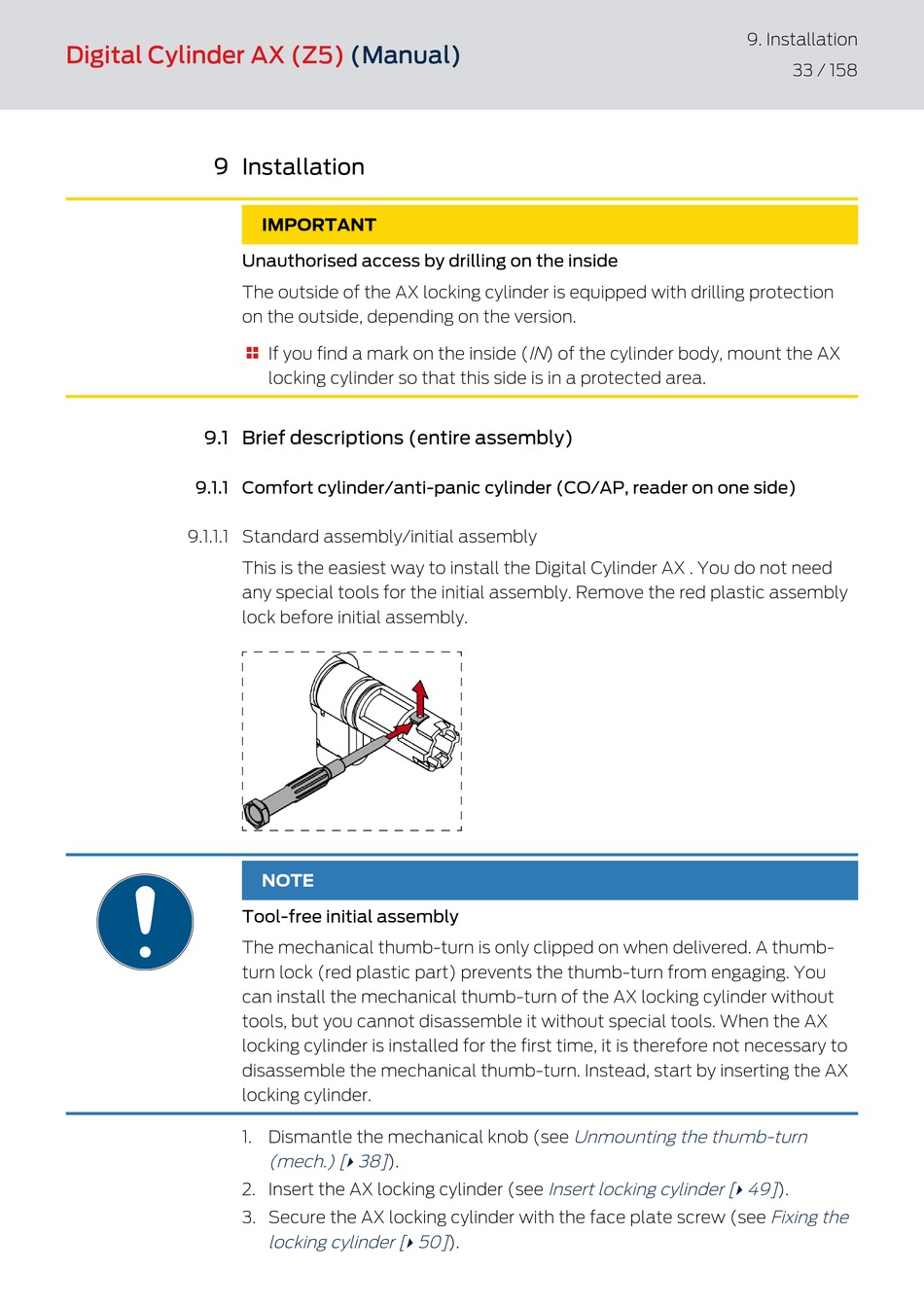

Digital Cylinder AX (Z5)

9 Installation

9.1 Brief descriptions (entire assembly)

9.1.1 Comfort cylinder/anti-panic cylinder (CO/AP, reader on one side)

9.1.1.1 Standard assembly/initial assembly
(Manual)
IMPORTANT
Unauthorised access by drilling on the inside
The outside of the AX locking cylinder is equipped with drilling protection
on the outside, depending on the version.
If you find a mark on the inside ( IN ) of the cylinder body, mount the AX
locking cylinder so that this side is in a protected area.
This is the easiest way to install the Digital Cylinder AX . You do not need
any special tools for the initial assembly. Remove the red plastic assembly
lock before initial assembly.
NOTE
Tool-free initial assembly
The mechanical thumb-turn is only clipped on when delivered. A thumb-
turn lock (red plastic part) prevents the thumb-turn from engaging. You
can install the mechanical thumb-turn of the AX locking cylinder without
tools, but you cannot disassemble it without special tools. When the AX
locking cylinder is installed for the first time, it is therefore not necessary to
disassemble the mechanical thumb-turn. Instead, start by inserting the AX
locking cylinder.
1. Dismantle the mechanical knob (see
(mech.) [
 38]
).
}
2. Insert the AX locking cylinder (see
3. Secure the AX locking cylinder with the face plate screw (see
locking cylinder [
 50]
}
Unmounting the thumb-turn
Insert locking cylinder [
).
9. Installation
33 / 158
 49]
).
}
Fixing the
