Digital Cylinder AX (Z5)

5 Structure

(Manual)

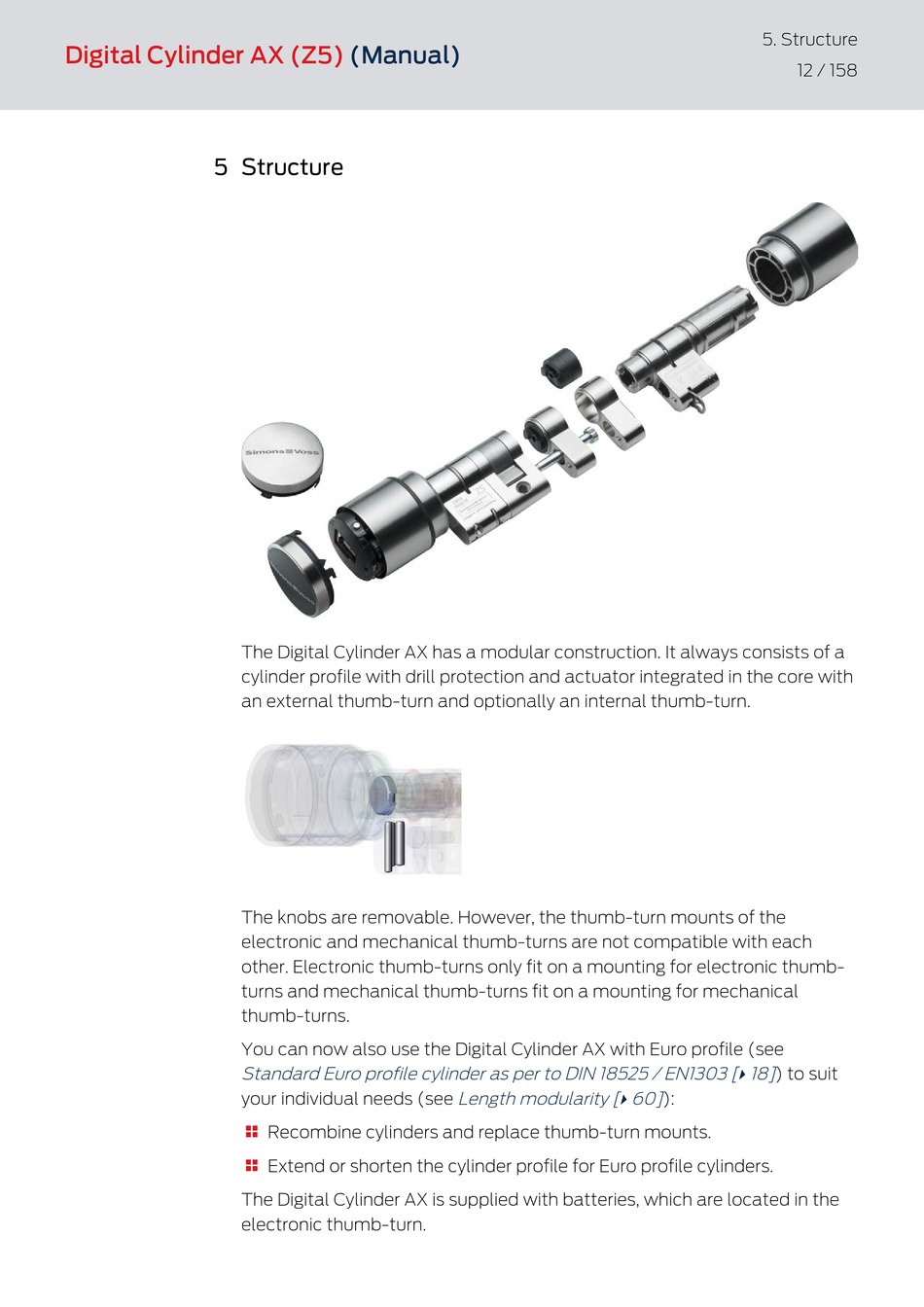

The Digital Cylinder AX has a modular construction. It always consists of a
cylinder profile with drill protection and actuator integrated in the core with
an external thumb-turn and optionally an internal thumb-turn.
The knobs are removable. However, the thumb-turn mounts of the
electronic and mechanical thumb-turns are not compatible with each
other. Electronic thumb-turns only fit on a mounting for electronic thumb-
turns and mechanical thumb-turns fit on a mounting for mechanical

thumb-turns.

You can now also use the Digital Cylinder AX with Euro profile (see
Standard Euro profile cylinder as per to DIN 18525 / EN1303 [
your individual needs (see
Recombine cylinders and replace thumb-turn mounts.

Extend or shorten the cylinder profile for Euro profile cylinders.

The Digital Cylinder AX is supplied with batteries, which are located in the
electronic thumb-turn.
Length modularity [ 60]
}
5. Structure
12 / 158
18]
) to suit
}
):
