6.1.2 Freely-rotating cylinder (FD; reader on both sides)

6.1.3 Half cylinder (HZ, reader on one side)

6.1.3.1 Scandinavian Oval (SO)
6.1.3.2 Scandinavian Round – (RS)

6.2 Profiles

6.2.1 Standard Euro profile cylinder as per to DIN 18525 / EN1303

(Manual)

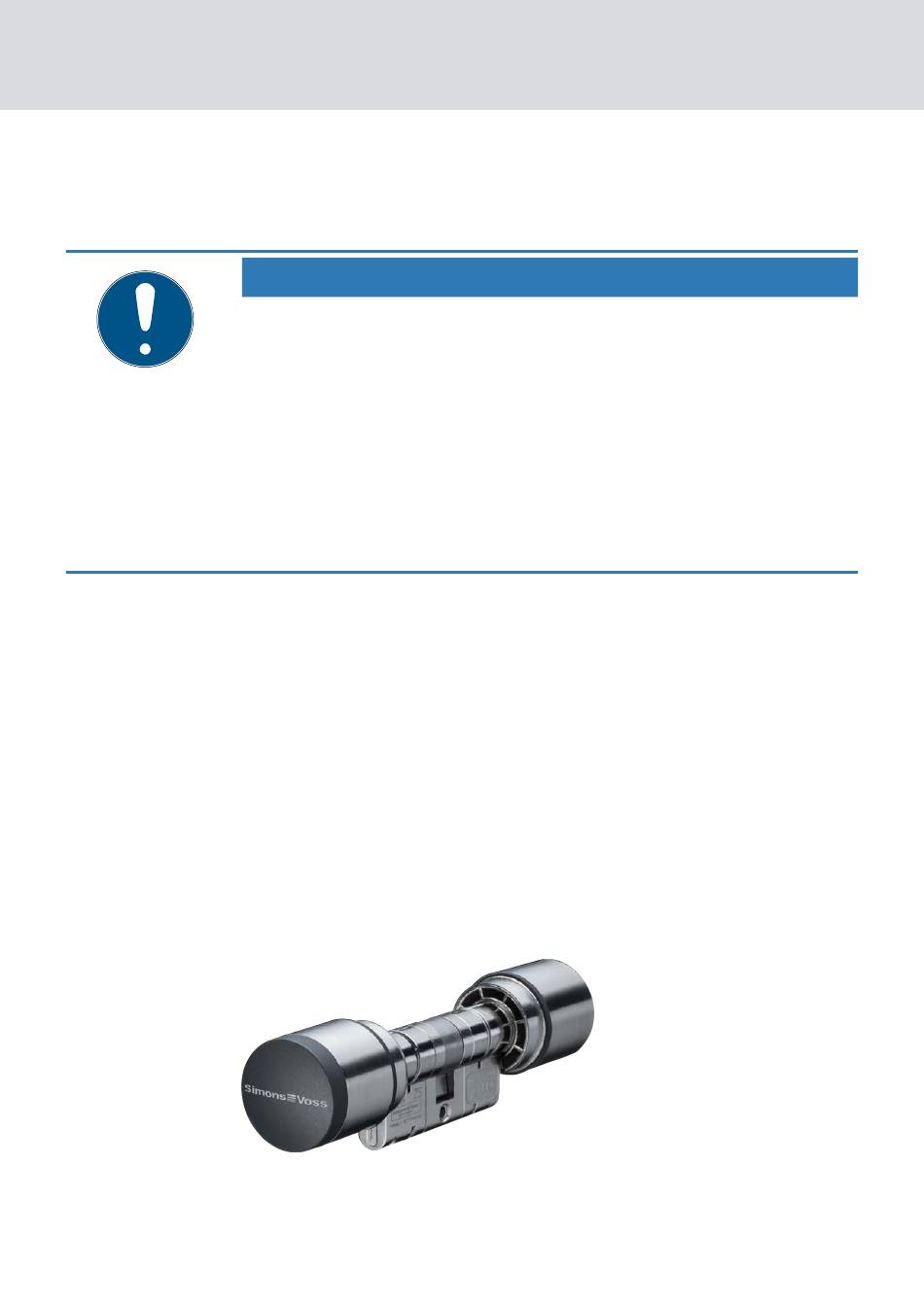

Both knobs are freely rotating in this design. You must have an
identification medium to engage this locking cylinder.
NOTE
Freely rotating active/hybrid Digital Cylinder AX only with shortened
range
With freely rotating cylinders, the reader knobs may not have sufficient
clearance at low cylinder lengths. Due to the range of the active techno-
logy, the radio signal can also be unintentionally received by the second
reader knob.
1. Program freely rotating cylinders with the SmartStick AX or the
SmartCD.MP.
2. Ensure that the short range is selected during programming (standard
setting for cylinders factory- supplied as freely rotating).
In this version, there is only an actuator or thumb-turn mount on one side of
the lock bit.
In this version, the Digital Cylinder AX is supplied with a cylinder profile for
Euro profile cylinders.
