Digital Cylinder AX (Z5)

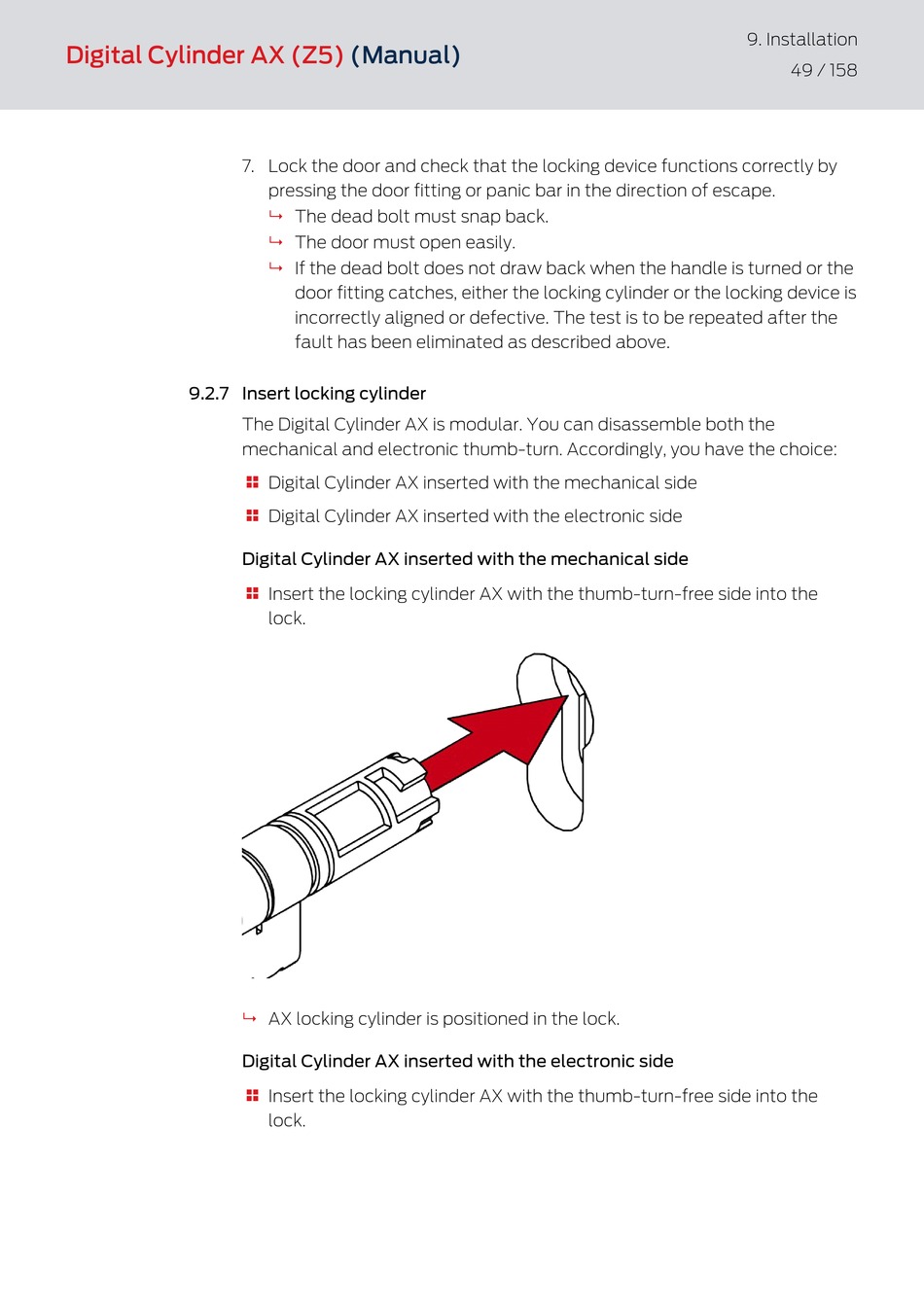

9.2.7 Insert locking cylinder

(Manual)
7. Lock the door and check that the locking device functions correctly by
pressing the door fitting or panic bar in the direction of escape.
9 The dead bolt must snap back.
The door must open easily.
9
9 If the dead bolt does not draw back when the handle is turned or the
door fitting catches, either the locking cylinder or the locking device is
incorrectly aligned or defective. The test is to be repeated after the
fault has been eliminated as described above.
The Digital Cylinder AX is modular. You can disassemble both the
mechanical and electronic thumb-turn. Accordingly, you have the choice:
Digital Cylinder AX inserted with the mechanical side

Digital Cylinder AX inserted with the electronic side

Digital Cylinder AX inserted with the mechanical side
Insert the locking cylinder AX with the thumb-turn-free side into the

lock.
AX locking cylinder is positioned in the lock.
9
Digital Cylinder AX inserted with the electronic side
Insert the locking cylinder AX with the thumb-turn-free side into the

lock.
9. Installation
49 / 158
