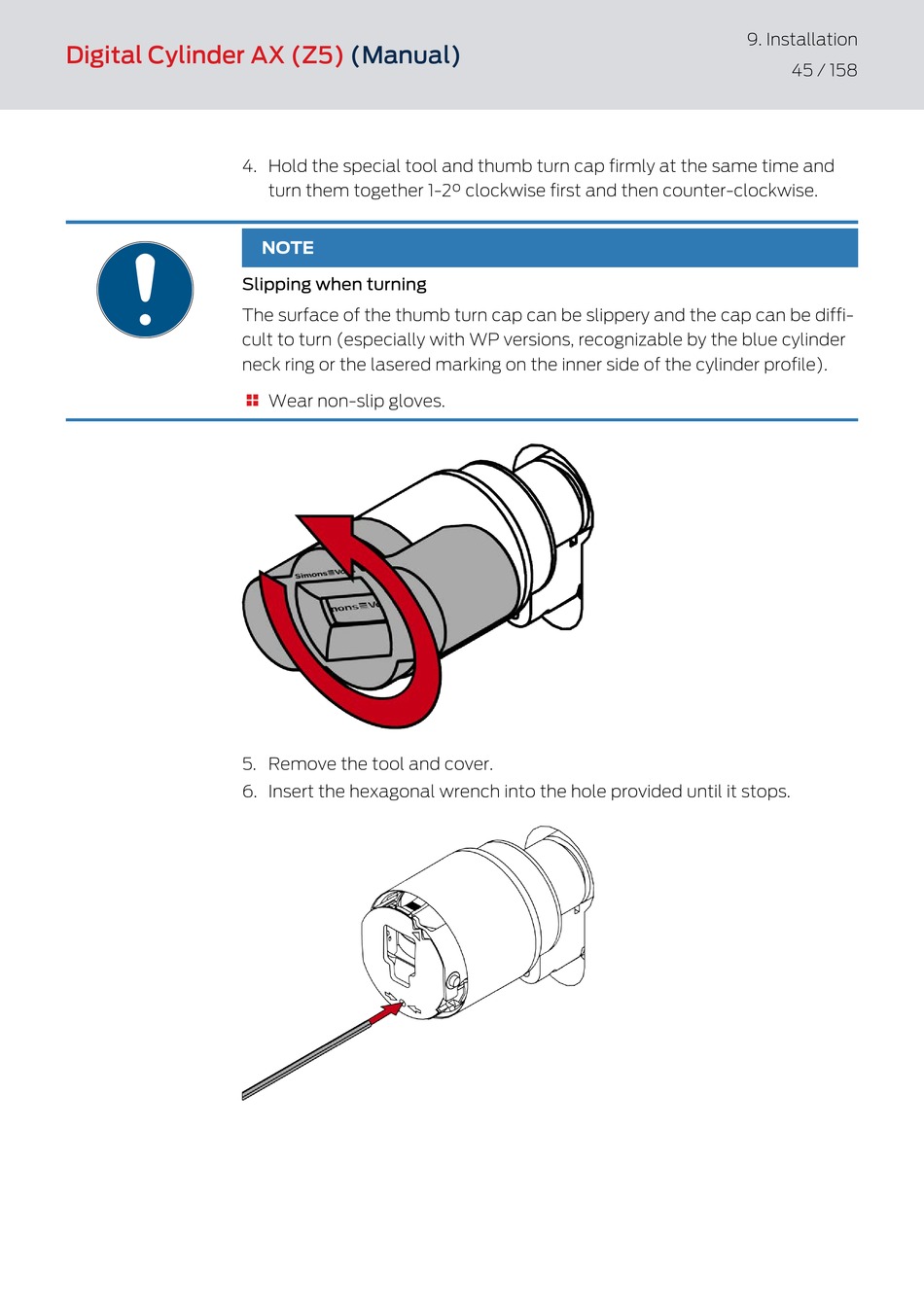

Digital Cylinder AX (Z5)
(Manual)
4. Hold the special tool and thumb turn cap firmly at the same time and
turn them together 1-2° clockwise first and then counter-clockwise.
NOTE
Slipping when turning
The surface of the thumb turn cap can be slippery and the cap can be diffi-
cult to turn (especially with WP versions, recognizable by the blue cylinder
neck ring or the lasered marking on the inner side of the cylinder profile).
Wear non-slip gloves.
5. Remove the tool and cover.
6. Insert the hexagonal wrench into the hole provided until it stops.
9. Installation
45 / 158
