Type 2 - Directed Directechs DS4+ Installation Manual

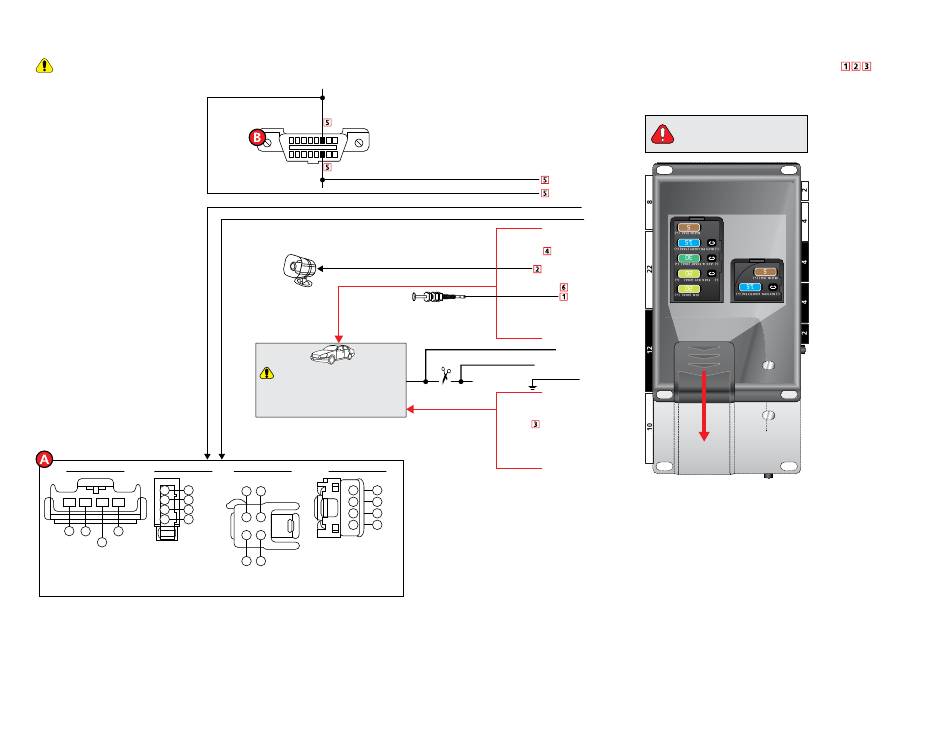

Wiring diagram

Type 2

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of special notes referenced in the diagram (
OBDII Diagnostic Connector,
Conn. type 1 Conn. type 2
4 4
RX
3 3
4 3 2 1 TX
2 2
Ground
1 1
Ignition
4 3 1
TX RX Ground
2
Ignition
Passive Anti-Theft Security System (PATS) connectors
See the Vehicle Wiring Charts for more wire and connector details
28
under Driver Dash
(connector side view)
HS CAN High, pin 6
1 8
9 16
HS CAN Low, pin 14
Siren
Refer to Vehicle wiring
reference chart section or go to
www.directechs.com for more
information on vehicle-specific
wiring connections.
Conn. type 3 Conn. type 4
RX Ground
4 4
3 1
RX
3 3
TX
2 2
Ground
3 1
1 1
Ignition
4 2
4 2
TX Ignition
HS CAN Low: Orange/Brown: 3
HS CAN High: Orange/Green: 4
RX: Orange/Black: 7
TX: Yellow/Black: 8
(-) Lock Output: Green/Black: 3
(-) Trunk Release Output: Red/White: 4
(+) Keysense Output: White: 7
(-) Unlock Output: Blue/Black: 9
(+) Siren Output: Brown/Red: 11
(+) Brake Input: Brown: 14
(-) Door Input: Green: 20
(-) Hood Input: Gray: 21
Hood Pin (AC) Tach Input: Violet/White: 22
(+) or (-) Parking Lights: White: 5 & 11
(+) 12V Input: Red: 6 & 12
RAP Off Output: Lt. Green: 8
RAP Off Output: Lt. Green/White: 9
(-) Ground: Black: 10
Driver Door Trigger
(+) 12V Input: Red/Black: 2
(+) Ignition 2/Flex Relay Output: Pink/White: 4
(+) 12V Input: Red: 5
Starter Input (Key Side): Green: 6
(+) Starter Output (Car Side): Violet: 7
(+) Accessory Output: Orange: 8
(+) 12V Input: Red/White: 9
(+) Ignition Input/Ouput: Pink: 10
).
It is IMPORTANT to check that
the fuses are positioned
correctly.
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
© 2018-01-12 Directed. All rights reserved.
).
DS4+ FORD1
