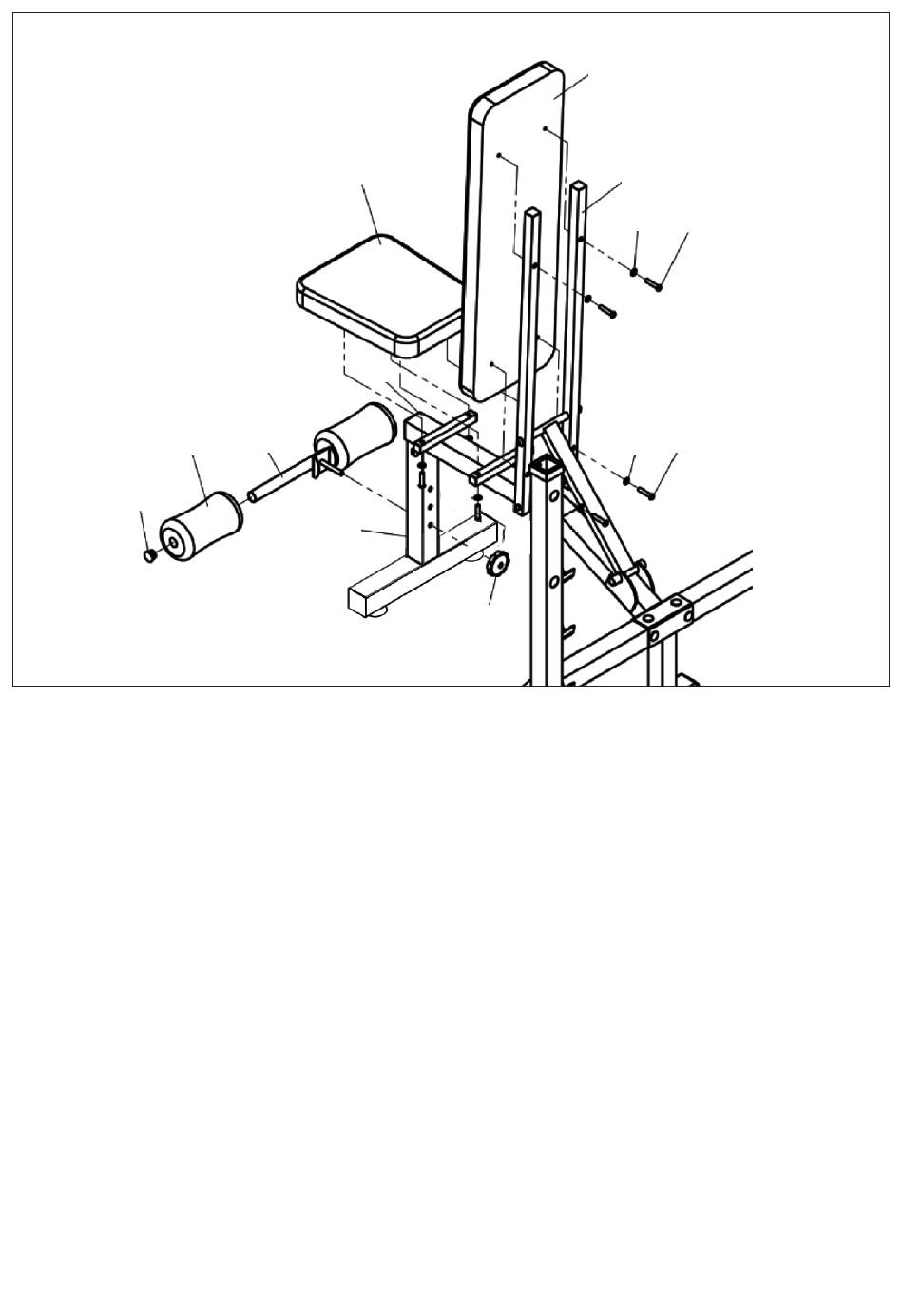

STEP 4
a. Secure 1 x Back Cushion (#4) to 1 x Pad Tubes (#5) with:
• 4 x Hex Bolts M8 x 40mm (#27)
• 4 x Washers Φ8 (#26)
b. Secure 1 x Seat Pad (#7) to 1 x Main Support Tube (#6) with:
• 4 x Hex Bolt M8 x 35mm (#28)
• 4 x Washers Φ8 (#26)
c. Place 1 x Foam Tube (#30) onto 1 x Front Support Tube (#8) with:
• 1 x Knot M10 (#31)
d. Place 2 x Foam (#32) onto 1 x Foam Tube (#30), secure with 2 x Tube Plug (#33).
32 30
8
7
6
26
28
31
