Cortex GS6 PRO User Manual page 15

#14 Φ10 - 12pcs
#20 M10 - 7pcs
#21 M10X175 - 1pc
#59 M10x45 - 6pcs

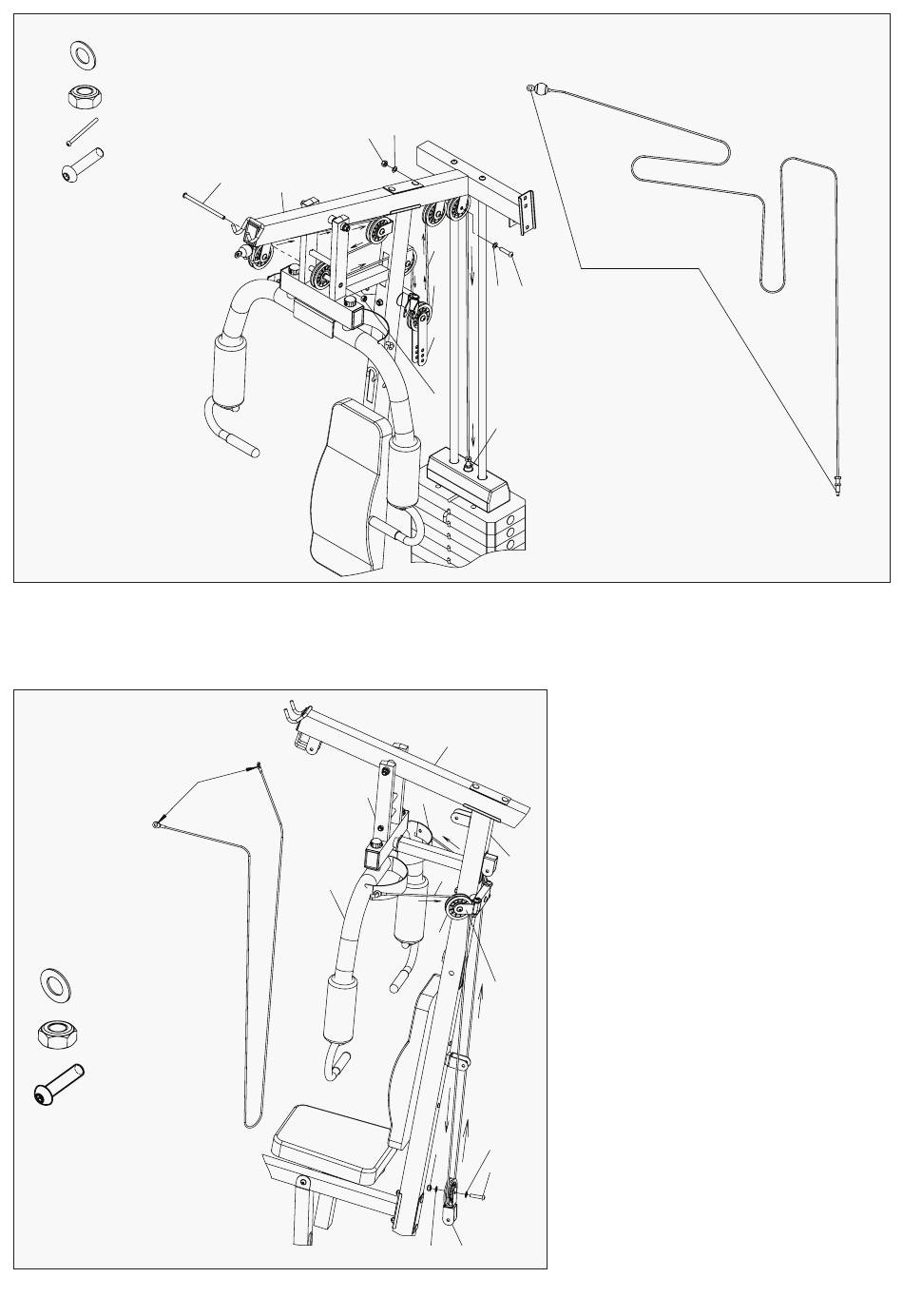

STEP 6
1. Feed the Lat Cable (3380mm)(#75) through 7x Pulley (#63) as shown in image above, secure
with 12 Washers Φ10 (#14), 6 Hex BoltsM10×45 (#59), 1 Hex Bolt M10x175(#21), 7 Aircraft Nut M10 (#20),
and 2 Pulley Bracket (#65). Connect the end which is bolt to the (#57).
3115mm
#14 Φ10 - 6pcs
#20 M10 - 3pcs
#59 M10x45 - 3pcs
STEP 7
14
20
21
90
9
15
75
63
14 59
65
20
57
90
16
1. Connect the Butterfly Cable
2
76
63
70
14
20
59
14 64
GS6 ASSEMBLY INSTRUCTIONS |
3380mm
(3115mm) (#76) to Right Butterfly
Arm (#16) and Left Butterfly Arm
(#15) as shown in image, secure
with 1 Pulley Set(#64), 3 Pulley
(#63), 3 Hex Bolts M10x45 (#59),
6 Washers Φ10 (#14), and 3 Aircraft
Nuts (#20).
15
