Cortex GS6 PRO User Manual page 11

#14 Φ10 - 4pcs
#20 M10 - 2pcs
#49 M10x20 - 2 pcs
#31 Carriage Bolt M10x90 - 2 pcs

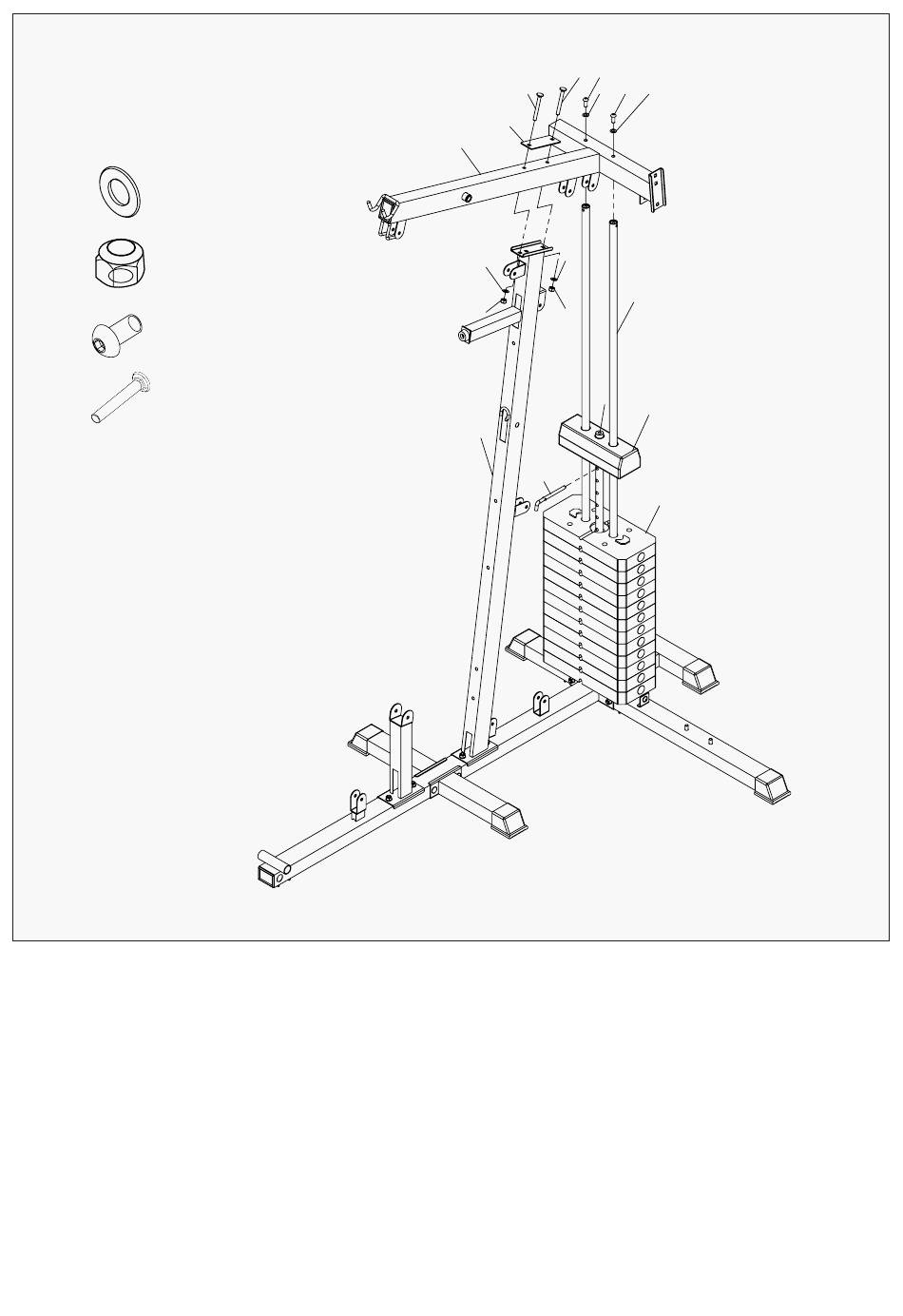

STEP 2
1. Slide the 12 Weight Plates (#56) onto the Guide Rods (#1).
Note: The groove side faces down. Insert the Selector Rod (#57) through the centre hole.
2. Slide the Selector Stem (#58) onto the Guide Rod (#1). Insert the L- shaped Pin (#111).
3. Attach the Upper Frame (#90) to the Guide Rods (#1). Secure it with 2x Hex Bolt M10*20mm (#49)
and 2x Washer Φ10 (#14).
4. Secure the Upper Frame (#90) to the Front Vertical Frame (#2) with 2x Carriage Bolt M10*90mm (#31),
2x Washer Φ10 (#14), Bracket (#22) and 2x Aircraft Nut M10mm (#20).
31 49
31
14
22
90
14
14
20
20
57
2
111
GS6 ASSEMBLY INSTRUCTIONS |
49 14
1
58
56
11
