Cortex GS6 PRO User Manual page 18

#14 Φ10 - 8pcs
#20 M10 - 5pcs
#49 M10X20 - 2pcs
#31 M10x90 - 2pcs
#67 M10x65 - 1pc

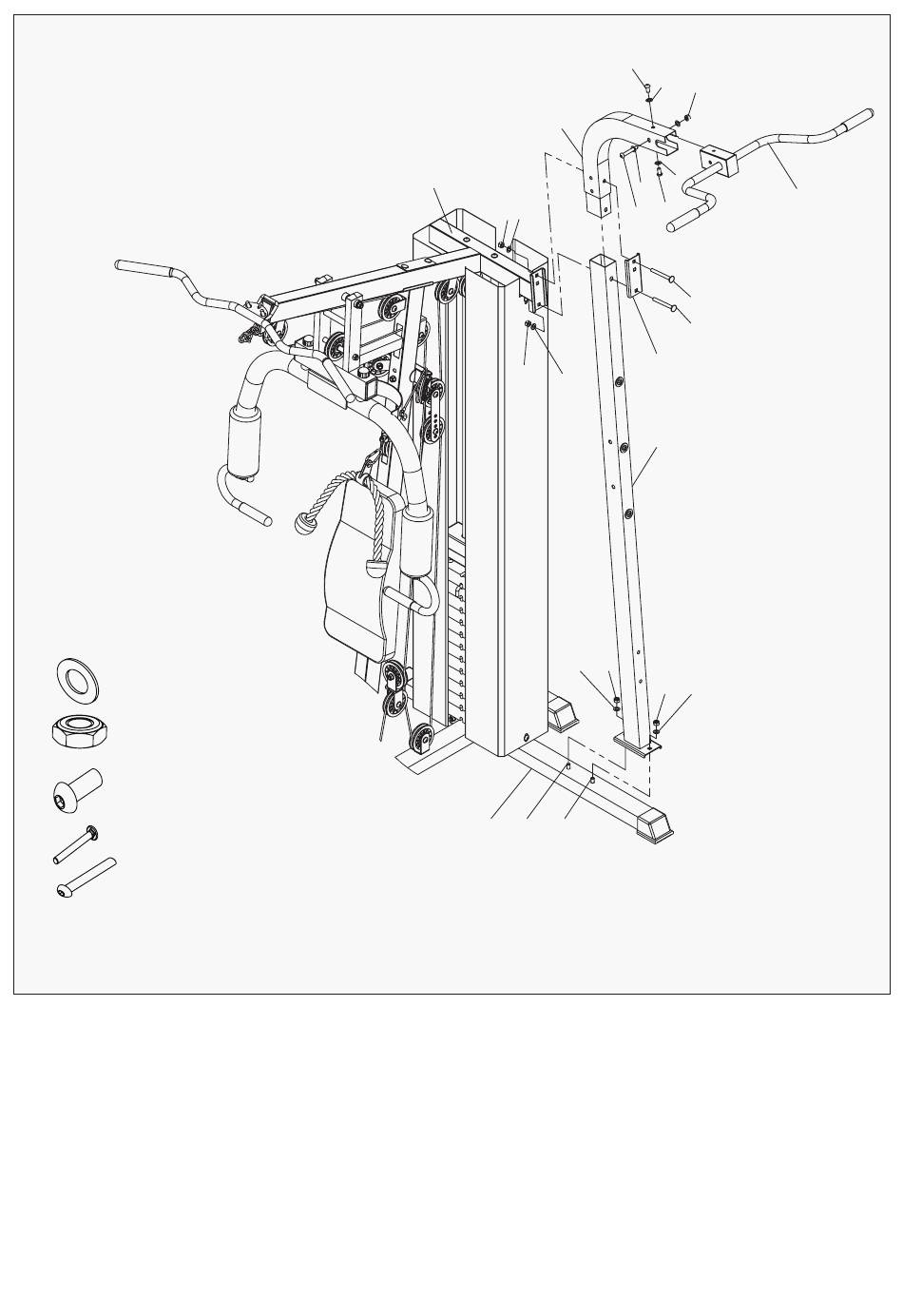

STEP 10
1. Connect the Vertical Frame (#91) to the Rear Base Support (#88) with 2 Washers Φ10 (#14) and 2
Aircraft Nuts M10 (#20) to the pre-installed Carriage Bolt M10x70 (#32) on the Rear base Support
(#88).
2. Two Carriage Bolts M10x90 (#31), 2 Washers Φ10 (#14), 2 Aircraft Nuts M10 (#20) and a Board (#92)
are used to connect the Parallel Support Bar (#99), the Vertical frame (#91) and the Upper Frame
(#90).
3. Insert the Lat Bar (#100) into the Parallel Support Bar (#99) and lock with 4 Washers Φ10 (#14),
2 Hex Bolts M10x20 (#49), 1 Hex Bolt M10x65 (#67) and 1 Aircraft Nut M10 (#20).
18 | GS6 ASSEMBLY INSTRUCTIONS
99
90
20 14
20
14
14 20
88 32 32
49
14 20
14
14
100
67 49
31
31
92
91
20 14
