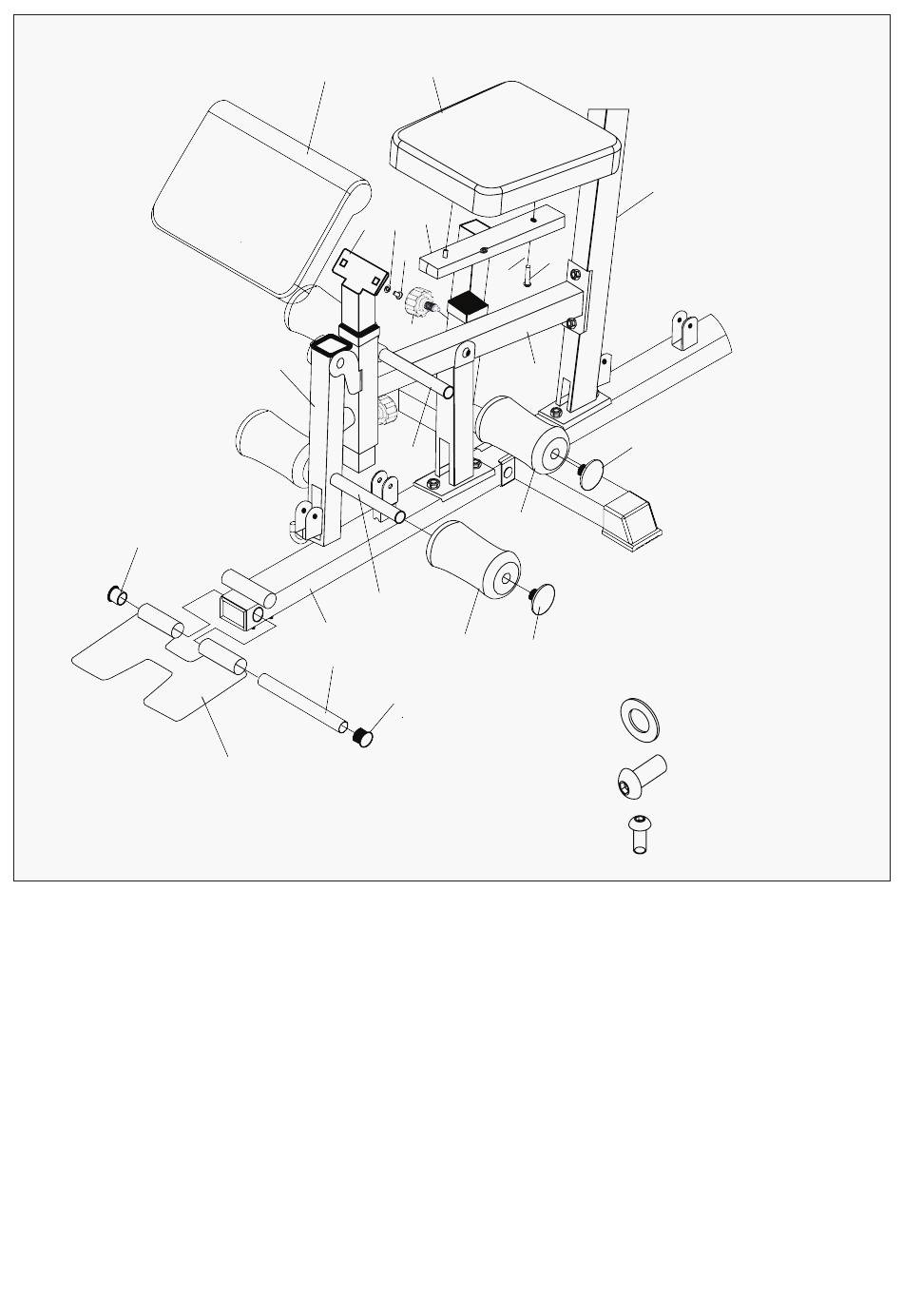

STEP 5
1. Place the Seat (#38) onto the Seat Frame (#37). Secure it with Hex Bolt M8*40 (#40) and Washer Φ8
(#39). Insert the Seat Frame (#37) into the Main Seat Support (#3). Secure it with Lock Knob (#34).
2. Attach the Arm Pad (#42) to the Arm Frame (#41). Secure it with Hex Bolt M8x16mm (#43) and
Washer Φ8 (#39).
3. Insert 2x Foam Tubes (#50) halfway through the holes on the Leg Developer (#45) and the Main Seat
Support (#3), push Foam Rolls (#51) onto the Foam Tubes (#50) from both ends. Plug the 4x Foam
Roll End Caps (#52) onto the ends.
4. Attach the Foot Plate (#93) to the Front Base Frame (#89), secure with Foot Plate Tube (#94), then
plug the two End Caps (#95).
14 | GS6 ASSEMBLY INSTRUCTIONS
42
41 39 37
45
50
89
94
93
38
43
40
39
34
4
50
51
51
52
95
2
52
#39 Φ8 - 4pcs
#40 M8x40 - 2pcs
#43 M8X16 - 2pcs
