Cortex GS6 PRO User Manual page 24

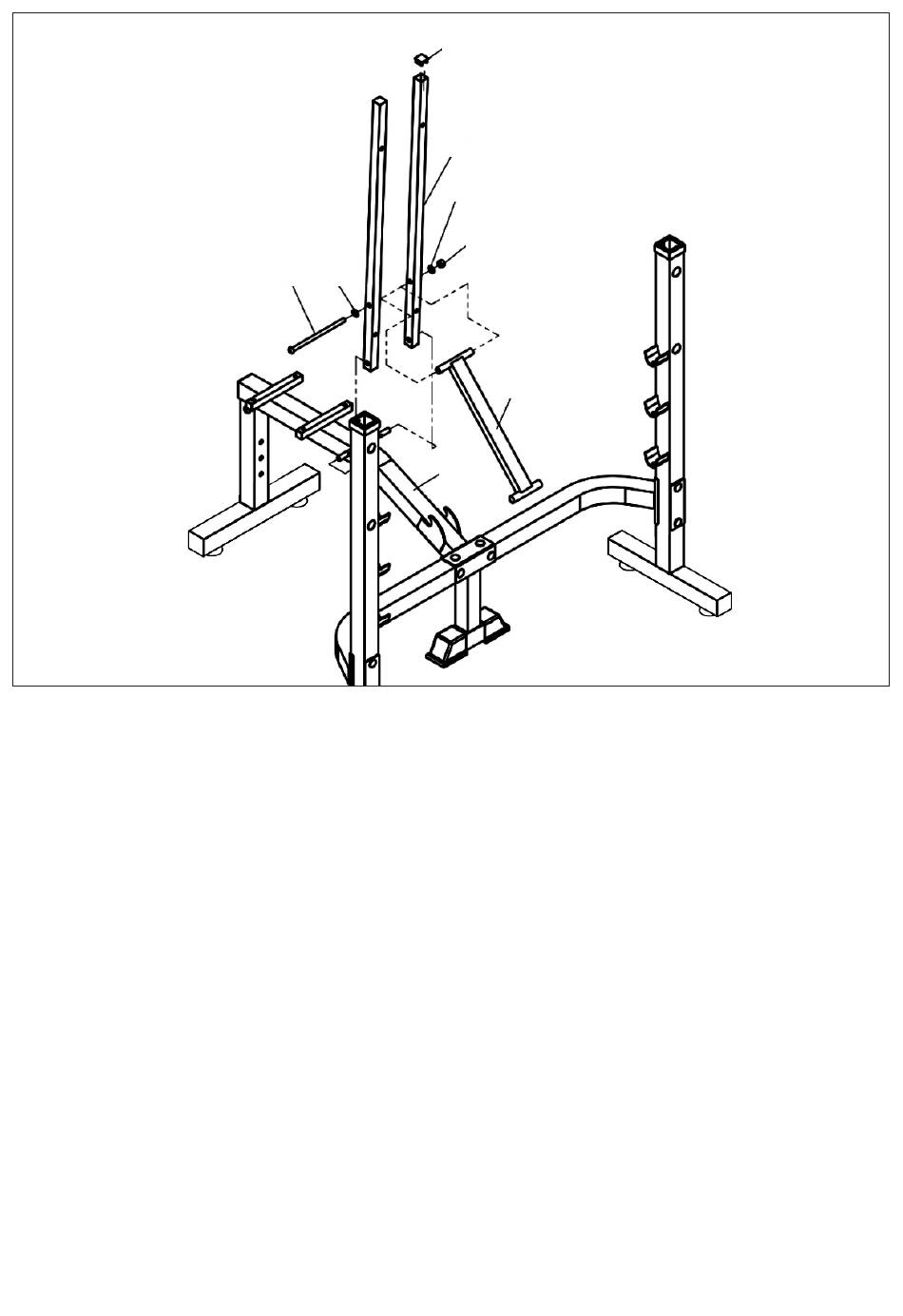

STEP 3
a. Attach 1 x Adjustable Tube (#13) between 2 x Pad Tubes (#5), then secure 2 Pad Tubes (#5) onto 1 x
Main Support Tube (#6) with:
• 1 x Hex Bolts M10 x 190mm (#29)
• 2 x Washers Φ10 (#22)
• 1 x Nuts M10 (#25)
b. Attach 4 x Tube Plug (#20) to 2 x Pad Tubes (#5).
24 | MF-4000 ASSEMBLY INSTRUCTIONS
20
5
22
29 22
6
25
13
