Cortex GS6 PRO User Manual page 13

49
47
45

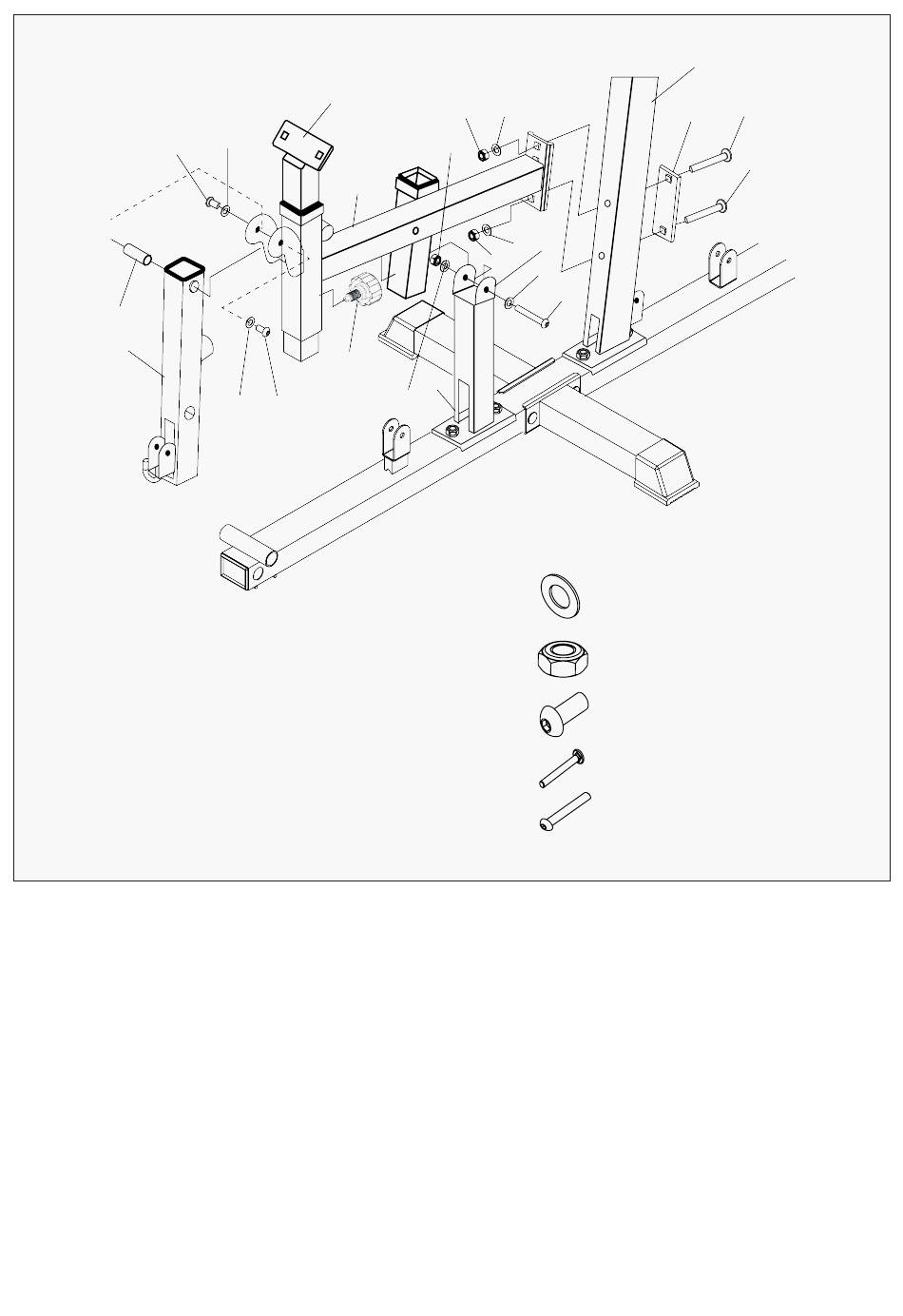

STEP 4
1. Attach the Main Seat Support (#3) to the Front Vertical Frame (#2). Secure it with Washer Φ10 (#14),
Aircraft Nut M10mm (#20), Carriage Bolt M10*90mm (#31), and Bracket (#22).
2. Attach the Main Seat Support (#3) to the Front Base Frame (#4). Secure it with Washer Φ10 (#14),
Aircraft Nut M10mm (#20), and Hex Bolt M10x70 (#33).
3. Attach the Leg Developer (#45) and to the Main Seat Support (#3). Secure it with a Leg Developer
Axle (#47), Hex Bolt M10*20mm (#49) and Washer Φ10 (#14).
4. Attach Lock Knob (#34) to Main Seat Support (#3). Insert the Arm Frame (#41).
41
14
4
34
49
14
20 14
20
3
14
20
14
33
3
14
2
31
22
#14 Φ10 - 6pcs
#20 M10 - 3pcs
#49 M10X20 - 2pcs
#31 M10x90 - 2pcs
#33 M10x70 - 1pcs
GS6 ASSEMBLY INSTRUCTIONS |
31
13
