IV. GS6 ASSEMBLY INSTRUCTIONS
NOTE 1. Washers are pushed at two ends of bolts.
2. Some parts has been assembled at the factory.
3. It is strongly recommended this machine to be assembled by two or more
people to avoid possible injury
#14 Φ10 10pcs
#20 M10 8pcs
#49 M10X20 - 2pcs
#31 M10x90 - 4pcs
#32 M10x70 - 2pcs
STEP 1

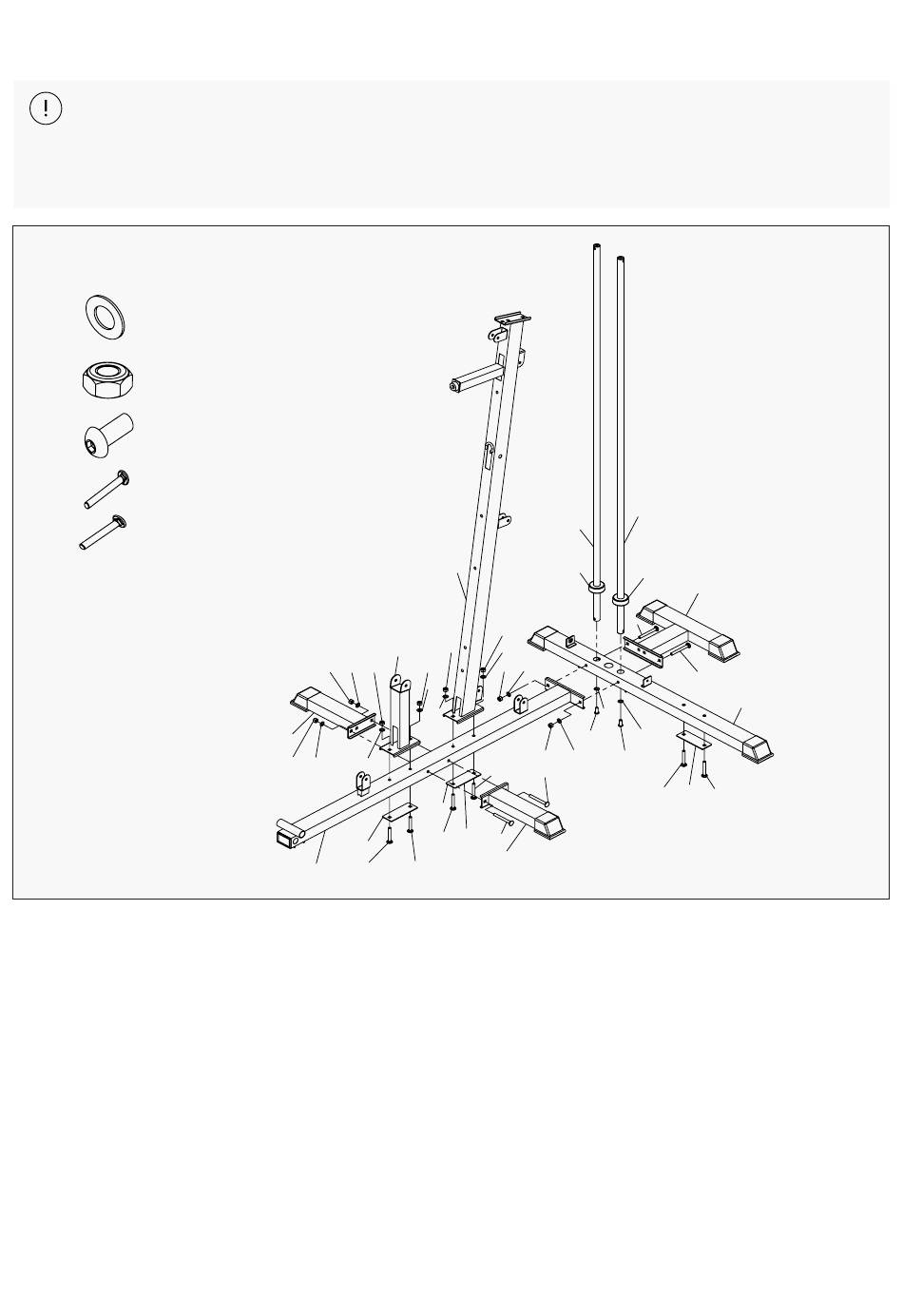

1. Insert the Guide Rode (#1) into the holes on the Rear Base Frame (#88). Secure it with 2x Hex Bolt
M10*20mm (#49) and 2x Washer Φ10 (#14). Push the Bummper (#55) onto the Guide Rods (#1).
2. Attach the Rear Support Tube (#29) to the Base Frame (#89) and Rear Base Frame (#88).
Secure it with 2x Carriage Bolt M10*90mm (#31), Aircraft Nut M10mm (#20) and 4x Washer Φ10 (#14).
3. Attach the Front Vertical Frame (#2) to the Base Frame (#89). Secure it with 2x Washer Φ10 (#14)
and 2x Aircraft Nut M10mm (#20), 2x Carriage Bolt M10*70mm (#32) and Bracket (#22).
4. Attach the seat support tube (#3) to the Base Frame (#89), secure with 2x Washer Φ10 (#14) and
2x Aircraft Nut M10mm (#20), 2x Carriage Bolt M10*70mm (#32).
5. Attach the Left and right Base Tube (#96) to the Base Frame (#89). Secure it with 2x Carriage
Bolt M10*90mm (#31), 4x Washer Φ10 (#14) and 2x Aircraft Nut (#20).
