Cortex GS6 PRO User Manual page 12

#14 Φ10 - 8pcs
#20 M10 - 5pcs
#19 M6X35 - 2pcs
#28 M10x90 - 2pcs
#18 M6 - 2pcs
#39 Φ8 - 2pcs
#67 M10x65 - 2pcs
#69 M10x110 - 1pc
#54 M8x85 - 2pcs

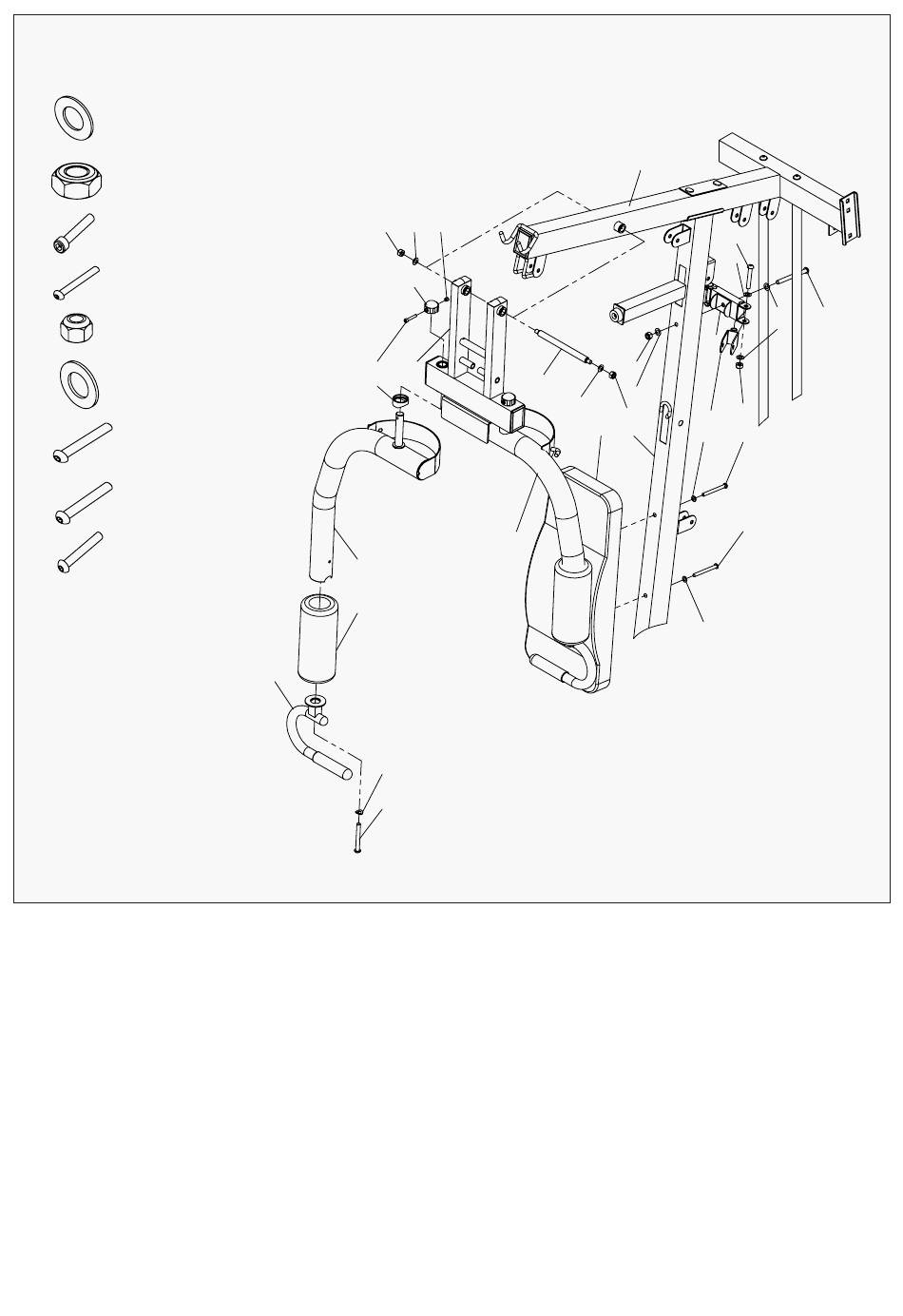

STEP 3
1. Attach the Front Press Base (#9) to the Upper Frame (#90). Secure it with 1x Long Axle (#11), Enlarged
Washers(#27) and Aircraft Nut M10mm (#20).
2. Slide a Press Foam (#36) onto the Butterfly arms (#16) and (#15). Attach the 2x Front Press Handle
(#23) to the left and right Butterfly arms (#16 & #15) with Hex Bolt M10*90mm (#28) and Washer Φ10
(#14).
3. Attach the Butterfly arms (#16) and (#15) to the Front Press Base (#9), secure them with Butterfly
Bushing (#26), Aircraft Nut M6mm (#18), Lock Ring (#17), and Hex Bolt M6*35mm (#19).
4. Attach the Pulley Bracket (#68) to the Front Vertical Frame (#2), secure with Hex bolt (#69),
Washer (#14) and Aircraft Nut M10mm (#20). Attach the pulley bracket (#70) to (#68), secure
with Hex Bolt M10x65 (#67), Washer (#14) and Aircraft Nut M10mm (#20).
5. Attach the Back pad (#53) to the Front Vertical Frame (#2), secure with Hex Bolt M8x85 (#54),
Washer Φ8 (#39).
12 | GS6 ASSEMBLY INSTRUCTIONS
20 27 18
17
19 9
26
16
36
23
14
28
90
20
11
14
27
20
53 2
15
67
14
14
89
14
20
70
39 54
54
39
