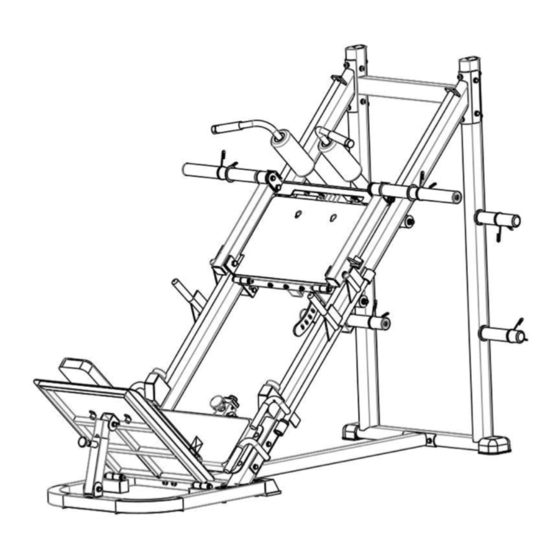

  • Page 1 LP-10 45 Degree Leg Press and Hack Squat Combo Machine USER MANUAL Product may vary slightly from the item pictured due to model upgrades. Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ....... 03 II. Care Instructions ..........04 III.

  • Page 3: Important Safety Instructions

    I. IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all instructions before using this machine. To ensure your safety, read the following precautions before using this product. 1. Please read, study and understand the instructions and all warning labels before use. (It is recommended to be familiar with the normal operation and use methods of the device before using this product.

  • Page 4: Care Instructions

    II. CARE INSTRUCTIONS • Lubricate moving joints with silicon spray after periods of usage. • Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects. • The machine can be kept clean by wiping it down using dry cloth. •...

  • Page 5: Parts List

    III. PARTS LIST Name Name Main frame Right side connecting column Left connection column Bottom connection frame Front paste landlord frame Right safety handle Left safety handle Right handle Left handle Smith guide rod Mobile connecting frame Welding of top back pattern plate Squat hand Heavy frame Φ50 Butterfly card spring...
  • Page 6 162.5cm 20cm | PARTS LIST...

  • Page 7: Assembly Instructions

    IV. ASSEMBLY INSTRUCTIONS IMPORTANT NOTE: 1. The gasket shall be placed at both ends of the bolt (against bolt head and nut), unless otherwise indicated. 2. Preliminary assembly is to tighten all bolts and nuts by hand and tighten with wrench for complete assembly.
  • Page 8 M10*100 x 2 M10 x 4 Ø10 x 8 M8*20 x 7 M10*75 x 2 STEP 2 1. Connect the jacket (19 #) and the front post holder (5 #) according to the drawing, and fix with bolts (39 #), gasket (49 #), and nut (46 #). Then place the inner sleeve (20 #) in (19 #) and fix with pumping pin (31 #).
  • Page 9 M10*100 x 2 M12*80 x 4 M10*40 x 4 M10*30 x 5 M10*20 x 2 M12 x 4 M10 x 14 Ø12 x 4 Ø10 x 21 STEP 3 1. Attach the lower counter frame (14 #) and the moving carrier (11 #) crouching handle (13 #) with bolts (41 #) and (42 #) (49 #) nuts (46 #).
  • Page 10 Ø10 x 8 M10*20 x 4 M10*20 x 4 STEP 4 1. Connect the sleeves (26 #) and (23 #) as shown and (27 #) and (24 #), secure with nuts (35 #) and gasket (49 #). 2. Connect the sleeve (25 #) and the main frame (1 #) as shown and secure with bolts (43 #) and gaskets (49 #).

  • Page 11: Exercise Guide

    VI. EXERCISE GUIDE PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
  • Page 12 COOL DOWN Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post- exercise problems.

  • Page 13: Maintenance

    VII. MAINTENANCE MAINTENANCE METHOD: To extend the service life of the device, the parts must be lubricated on time. The product has been initially lubricated before leaving the factory, but lubrication is required between the guide rod and the weight plate over time. NOTE: Silicon oil/spray is recommended for lubrication.

  • Page 14: Warranty

    VIII. WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
  • Page 16 WWW.L IF ESPAN F ITNE S S . COM . A U...
