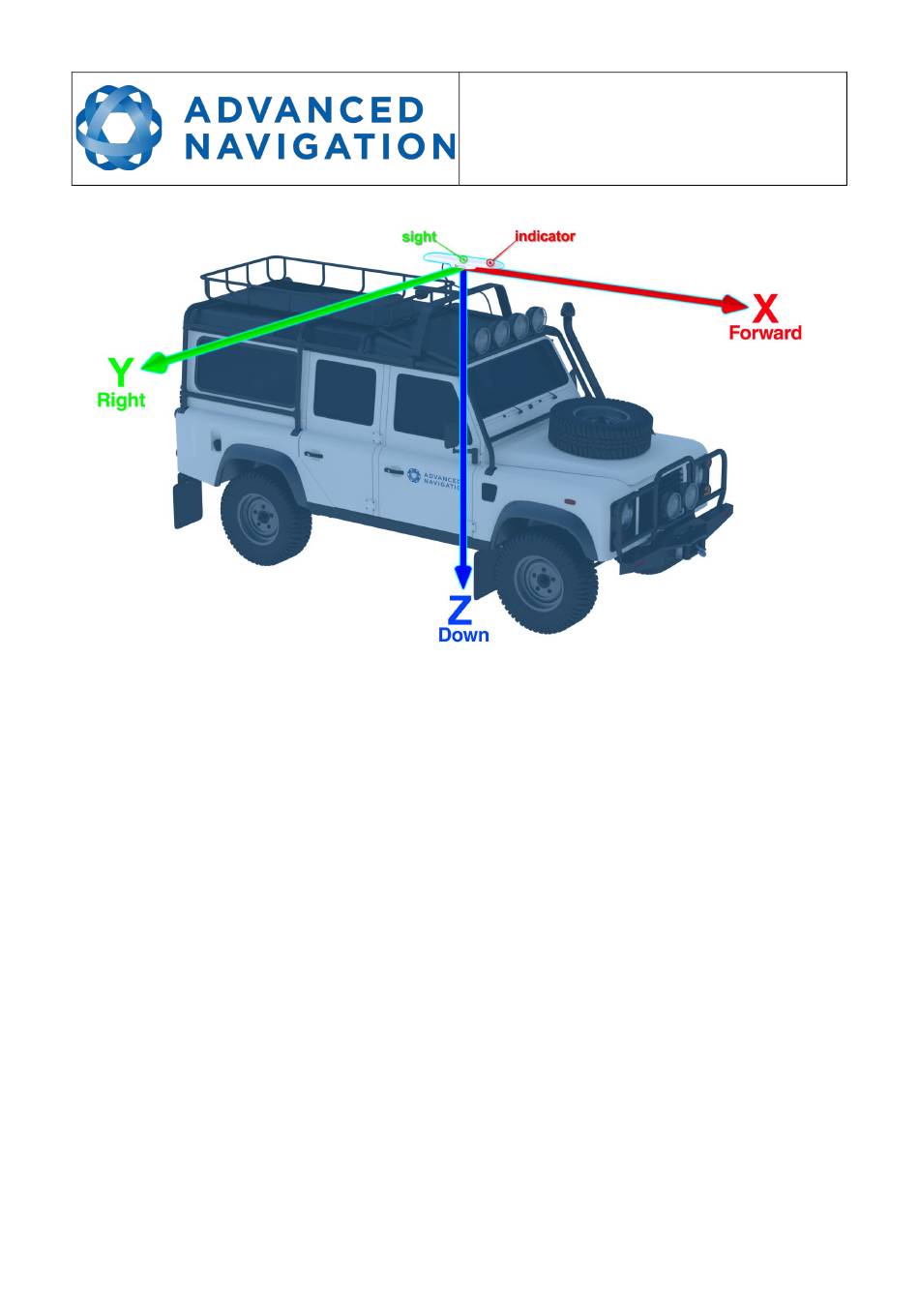

Illustration 16: GNSS Compass alignment on a car
8.4
Connection
The cables available from Advanced Navigation feature a connector with a locking nut and o-ring
that are waterproof and dirtproof to the IP68 standard as well as resistant to shock and vibration.
The environmental protection only applies when the connector is locked by pushing in and rotating
the nut clockwise until it clicks, see Illustration 17.
All manuals and user guides at all-guides.com
GNSS Compass Reference Manual
Page 35 of 85
Version 1.1
13/01/2021
