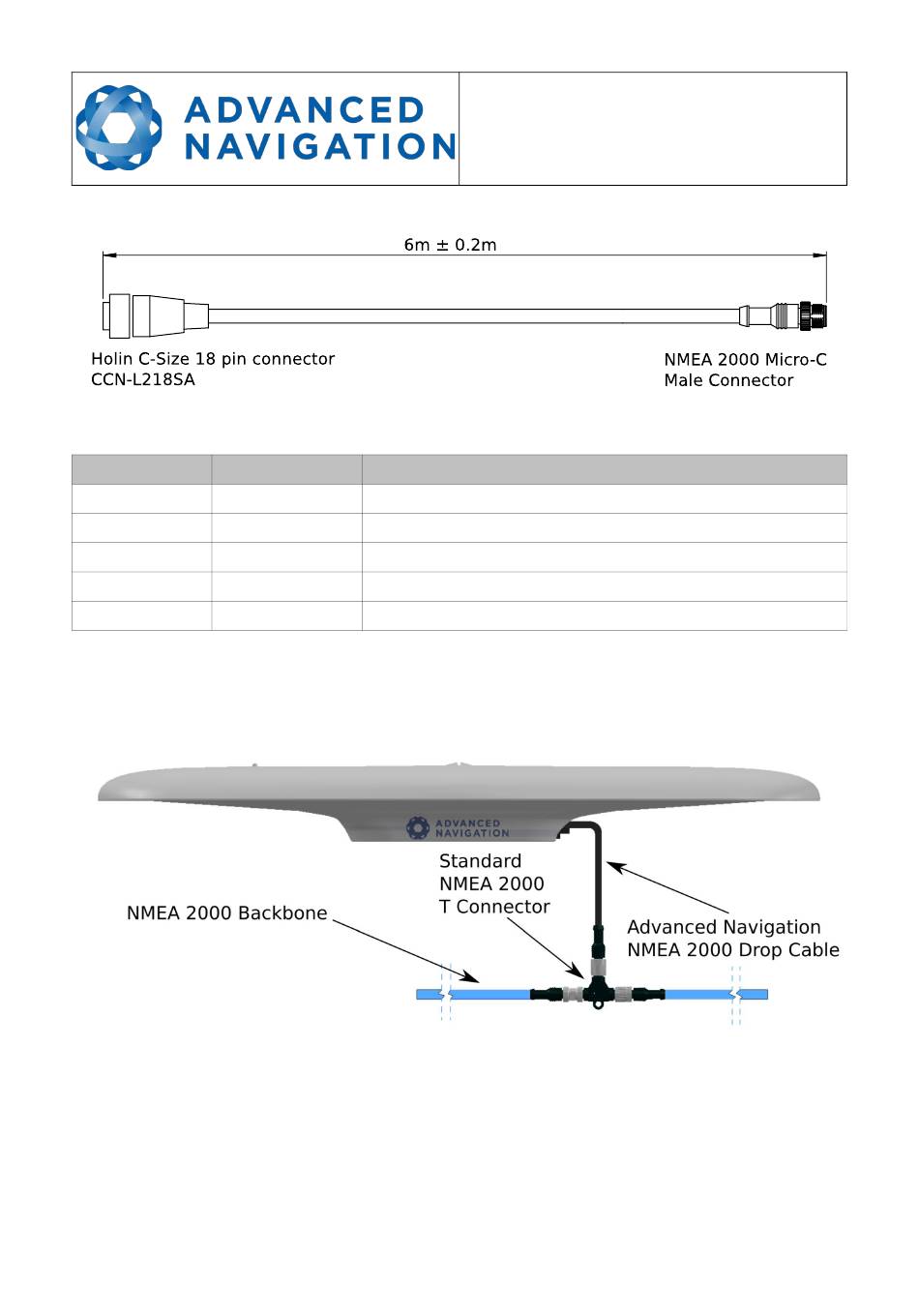

Illustration 6: NMEA 2000 Drop Cable
Pin
1
2
3
4
5
Table 16: NMEA 2000 drop cable pin allocation table
The NMEA 2000 drop cable should be used to connect to a T piece along the NMEA 2000
backbone in the vessel, see Illustration 7.
Illustration 7: GNSS Compass NMEA 2000 Connection
7.9
Ethernet Cable
The Ethernet cable is only compatible with GNSS Compass part numbers GC-POE-LC and GC-
POE-HA. It has part number GC-POE-CABLE-20M.
Connection to the GNSS Compass is made through a Holin RJ45C-L4SAS environmentally sealed
RJ45 connector. The connector has a bayonet lock and provides a reliable and rugged connection
to the GNSS Compass under demanding conditions. It is rated to IP68 in the mated state. The
All manuals and user guides at all-guides.com
Colour
Bare
Red
Black
White
Blue
GNSS Compass Reference Manual
Page 25 of 85
Version 1.1
13/01/2021
Function
Drain/Shield
Power Supply
Power Ground
CAN Hi
CAN Lo
