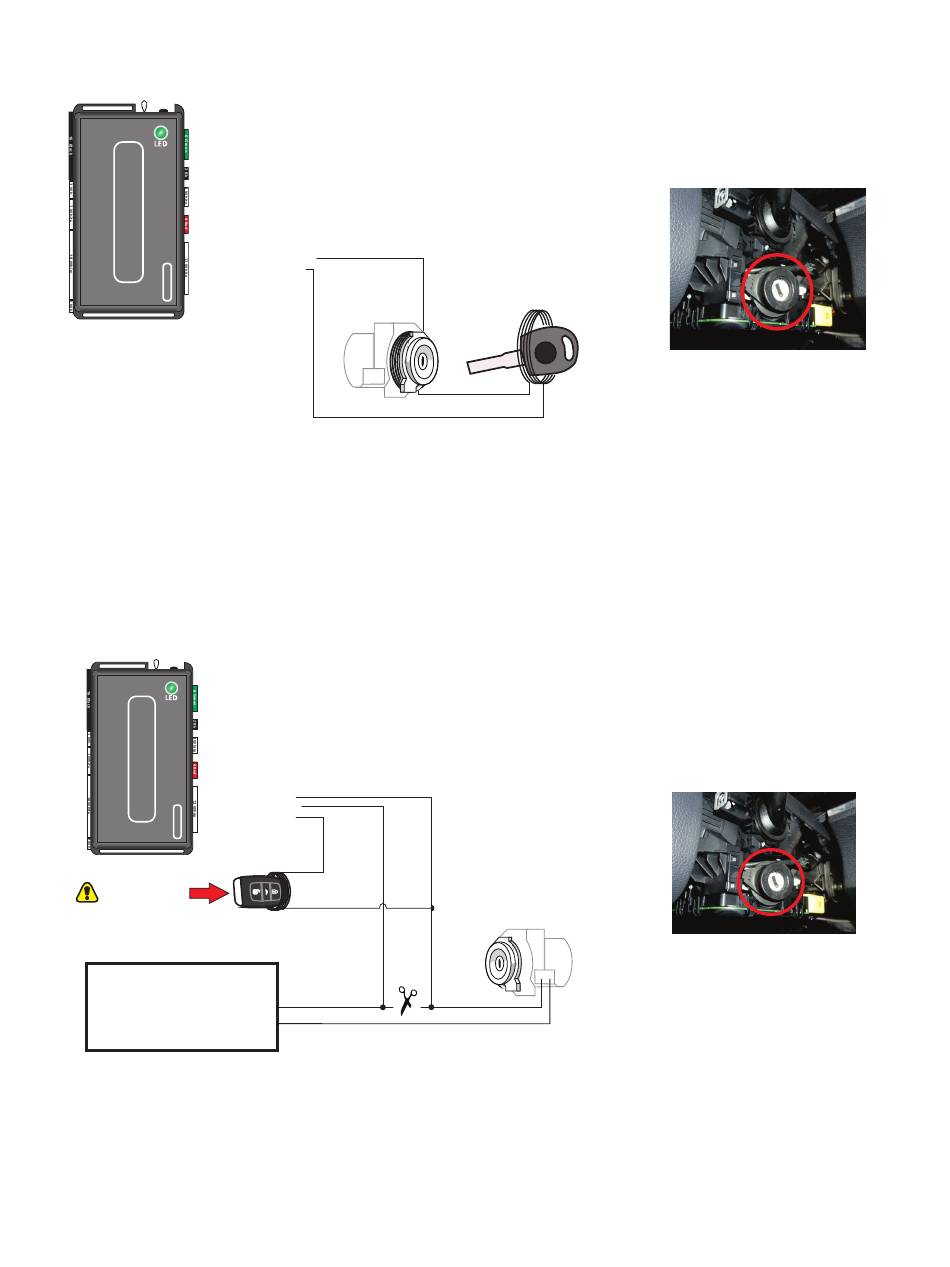

Method 3: Key wrap for Regular Key

Manual/Auto. Transmission Type
Prog.
Button
4: Yellow/Red: COM Relay 2
3: Brown/Red: NO Relay 2
- Make 4-6 loops and place them as close to the front of key port (OEM Immobilizer Receiver) as possible.
- Make 4-6 loops and place them around the front of the plastic body of the vehicle's coded key as shown above.
- Test and secure mounted loops before reassembling the vehicle.
* When possible use valet key for key wrap, if blade key is used, battery must be removed.

Method 4: Key wrap for Regular Key - Alternate

Manual/Auto. Transmission Type
Prog.
Button
5: Orange/Red: NC Relay 2
4: Yellow/Red: COM Relay 2
3: Brown/Red: NO Relay 2
Remove battery
from OEM
Remote Control
Immobilizer ECU
- Make 4-6 loops and place them around the front of the plastic body of the vehicle's coded key as shown above.
- Make connections to the OEM Immobilizer receiver as shown above.
- Test and secure mounted loops before reassembling the vehicle.
* When possible use valet key for key wrap, if blade key is used, battery must be removed.
8
OEM
Immobilizer
Receiver
4-6 loops
4-6 loops
Blue
Brown
*
4-6 loops
OEM
Immobilizer
Receiver
Directed Digital System VW02
