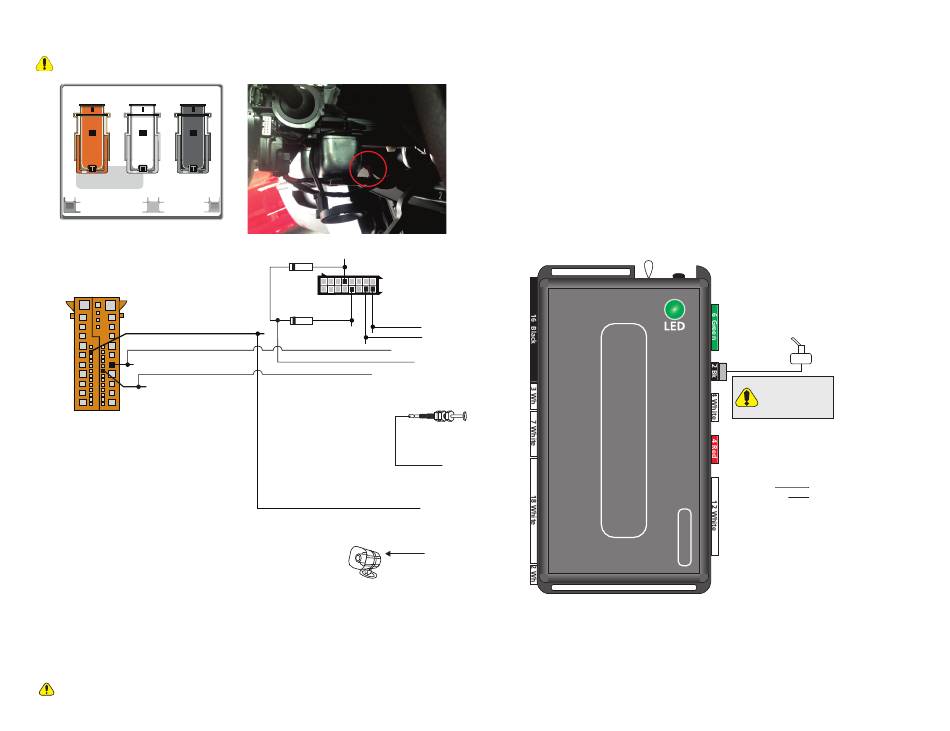

Type 2 - Push-To-Start - Directed VW02 Firmware Specific Manual

Type 2 - Push-To-Start

Refer to "Vehicle wiring reference charts" on page 23 for more information on vehicle-specific connections
C B A
VESCM - Driver side under dashboard
42 25 1
(-) Clutch: Violet/White
[4]
or Violet/Black, pin 30
28
29 12
(-) Hazards: Brown/Red, pin 7
(connect this wire ONLY if turn
signals don't flash via CANBUS)
(+) Brake: Black/Red, pin 17
[5]
52 41 24 11
C plug (Brown)
at VESCM
The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin.
[1]
The siren is only compatible with Directed Digital Hybrid Systems.
[2]
For Key Wrap instructions refer to pages 7-10.
[3]
For manual transmission vehicle only. For wire colors, refer to the Vehicle Wiring Reference Chart on page 23.
[4]
For automatic transmission vehicle only.
[5]
For wire colors, refer to the Vehicle Wiring Reference Chart on page 23.
[6]
With the exception of the OBDII diagnostic connector, all connectors are displayed from the wire side (unless specified otherwise).
12
Located under steering column at
Control Unit for Electronic Steering Column Lock
(-) PTS: pin 4
[6]
2 x 1Amp 1 8
Diodes 9 14 16
FT CAN High:
(-) PTS: pin 13
[6] Orange/Green,
pin 16
FT CAN High: Orange/Green: 7
FT CAN Low:
FT CAN Low: Orange/Brown: 8
Orange/Brown, pin 15
(-) Hazards SW Output: Green/Black: 10
(-) PTS Output: Lt. Blue/Black: 13
(+) Brake Activation Output: Green/Red: 14
[5]
Hood Pin
(-) Hood Input: Gray: 3
[1]
(-) Clutch Output: Dk. Blue: 7
[4]
(+) Siren Output: Brown: 17
[2]
Siren
.
Manual/Auto. Transmission Type
Prog.
Prog.
Button
Button
10: Red: (+) 12V
9: Black: (-) Ground
5: Orange/Red: Key Wrap
4: Yellow/Red: Key Wrap
3: Brown/Red: Key Wrap
Remote Start Safety
Override Switch
The Remote Start
Safety Override
Switch MUST be in
the ON position.
(+) 12V
(-) Ground
[3]
[3]
[3]
Directed Digital System VW02
