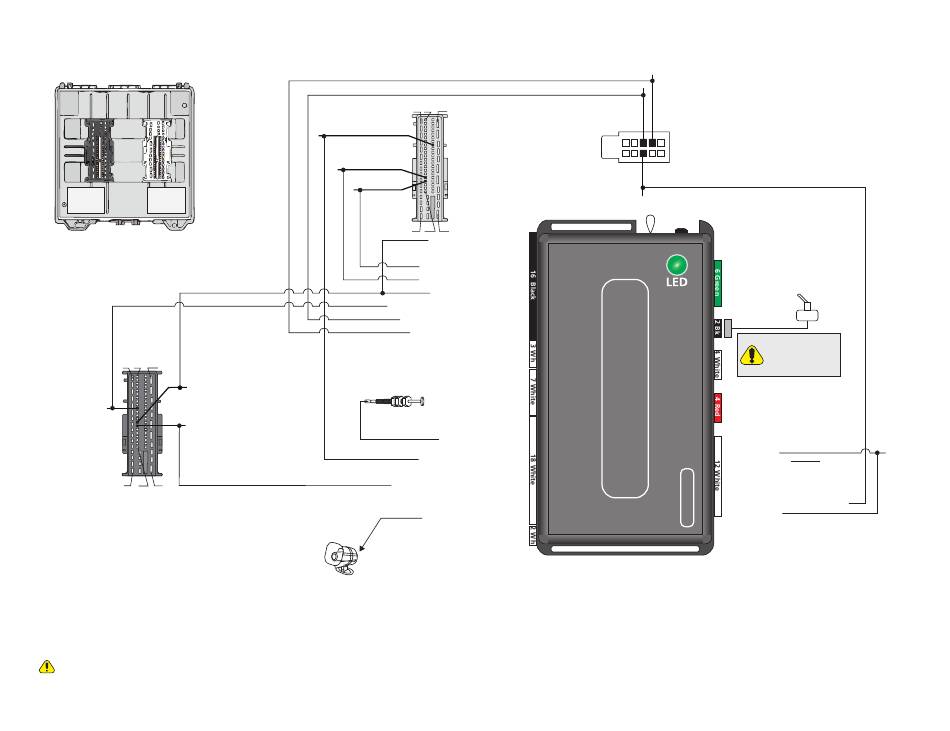

Type 7 - Regular Key - Directed VW02 Firmware Specific Manual

Type 7 - Regular Key

B Plug
A Plug
(Black) (White)
VESCM - Driver side,
under dashboard
16 37 73
Arm/Disarm:
Blue/Red, pin 24
(-) Hazards:
Brown/Red, pin 28
A Plug (Black)
at VESCM
(-) Trunk Release:
Violet, pin 23
17
1 63
The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin.
[1]
The siren is only compatible with Directed Digital Hybrid Systems..
[2]
For Key Wrap instructions refer to pages 7-10.
[3]
For manual transmission vehicle only.
[4]
With the exception of the OBDII diagnostic connector, all connectors are displayed from the wire side (unless specified otherwise).
18
16 37 73
(-) Clutch: Violet/White or
[4]
Violet/Black, pin 55
FT CAN Low:
Orange/Brown,
pin 21
B Plug (White)
at VESCM
FT CAN High:
Orange/Green,
pin 20
1 17 63
Door Locks: Violet/Brown: 1
FT CAN High: Orange/Green: 7
FT CAN Low: Orange/Brown: 8
Door Locks: Violet/Green: 9
(-) Hazards SW Output: Green/Black: 10
(+) Accessory Output: White/Red: 12
(+) Starter Output: Green/Red: 14
Hood Pin
(-) Hood Input: Gray: 3
[1]
(-) Clutch Output: Dk.Blue: 7
[4]
(-) Trunk Release Output: Red/White: 9
(+) Siren Output: Brown: 17
[2]
Siren
(+) Accessory: Black/Red, pin 3 (+) Starter: Red/Black, pin 4
Ignition
1 2 3 4 5
Switch
6 7 8 9 10
(+) Ignition: Black/Violet, pin 8
Manual/Auto. Transmission Type
Manual/Auto. Transmission Type
Prog.
Prog.
Button
Button
Remote Start Safety
Override Switch
The Remote Start
Safety Override
Switch MUST be in
the ON position.
(+) 12V
10: Red: (+) 12V
(-) Ground
9: Black: (-) Ground
5: Orange/Red: Key Wrap
[3]
4: Yellow/Red: Key Wrap
[3]
3: Brown/Red: Key Wrap
[3]
2: White/Brown: (+) Ignition Output
1: White: (+) 12V
Directed Digital System VW02
