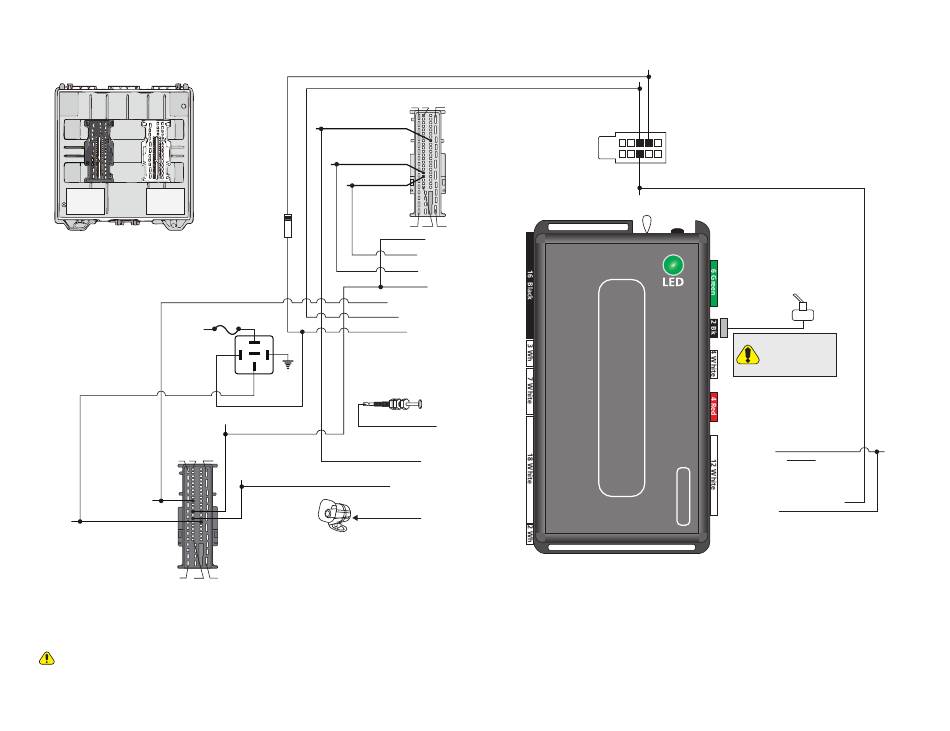

Type 9 - Regular Key - Directed VW02 Firmware Specific Manual

Type 9 - Regular Key

A Plug B Plug
(Black) (White)
VESCM - Driver side,
under dashboard
Fuse 5A
(+) 12V
16 37 73
(-) Hazards:
Brown/Red, pin 28
(+) Brake:
Black/Red, pin 43
Note: Connect only on vehicle
where brake needs to be
depressed to start.
1 17 63
The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin.
[1]
The siren is only compatible with Directed Digital Hybrid Systems.
[2]
For Key Wrap instructions refer to pages 7-10.
[3]
For manual transmission vehicle only.
[4]
With the exception of the OBDII diagnostic connector, all connectors are displayed from the wire side (unless specified otherwise).
20
(-) Clutch: Violet/White
[4]
or Violet/Black, pin 55
FT CAN Low:
Orange/Brown,
pin 21
FT CAN High:
Orange/Green,
pin 20
(-) Hazards SW Output: Green/Black: 10
86 87
85
87a
30
Hood Pin
Lock/Unlock:
Brown/Green, pin 25
(-) Trunk Release: Violet, pin 23
(-) Trunk Release Output: Red/White: 9
Siren
A Plug (Black)
at VESCM
16 37 73
(+) Accessory: Black/Red, pin 3
Ignition
Switch
B Plug (White)
at VESCM
Manual/Auto. Transmission Type
Manual/Auto. Transmission Type
1 17 63
Door Locks: Violet/Brown: 1
FT CAN High: Orange/Green: 7
FT CAN Low: Orange/Brown: 8
Door Locks: Violet/Green: 9
(+) Accessory Output: White/Red: 12
(+) Starter Output: Green/Red: 14
(-) Hood Input: Gray: 3
[1]
Clutch Output: Dk.Blue: 7
[4]
(+) Siren Output: Brown: 17
[2]
(+) Starter: Red/Black, pin 4
1 2 3 4 5
6 7 8 9
10
(+) Ignition: Black/Violet, pin 8
Prog.
Prog.
Button
Button
Remote Start Safety
Override Switch
The Remote Start
Safety Override
Switch MUST be in
the ON position.
10: Red: (+) 12V
9: Black: (-) Ground
5: Orange/Red: Key Wrap
4: Yellow/Red: Key Wrap
3: Brown/Red: Key Wrap
2: White/Brown: (+) Ignition Output
1: White: (+) 12V
© 2016 Directed. All rights reserved.
(+) 12V
(-) Ground
[3]
[3]
[3]
Directed Digital System VW02
