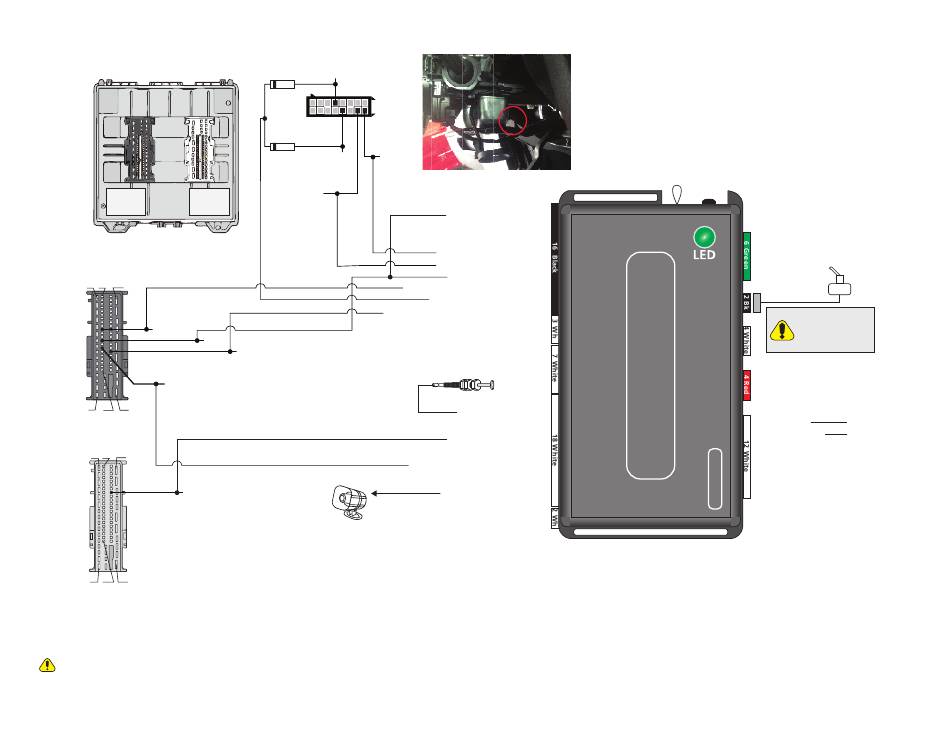

Type 8- Push-To-Start - Directed VW02 Firmware Specific Manual

Type 8- Push-To-Start

B Plug
A Plug
(Black) (White)
VESCM - Driver side,
under dashboard
(-) Hazards: Brown/Red, pin 28
16 37 73
(connect this wire only if turn
signals don't work)
Lock/Unlock:
Brown/Green,
pin 25
(+) Brake: Black/Red, pin 43
[5]
(-) Trunk Release: Violet, pin 23
17
1 63
A Plug (Black)
at VESCM
16 37 73
(-) Clutch: Violet/White or
[4]
Violet/Black, pin 55
1 17 63
The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin.
[1]
The siren is only compatible with Directed Digital Hybrid Systems..
[2]
For Key Wrap instructions refer to pages 7-10.
[3]
For manual transmission vehicle only.
[4]
For automatic transmission vehicle only.
[5]
With the exception of the OBDII diagnostic connector, all connectors are displayed from the wire side (unless specified otherwise).
19
(-) PTS:
Violet/Blue, pin 4
2 x 1Amp
1 8
Diodes
9 14 16
(-) PTS: Violet/Green, FT CAN High:
pin 13 Orange/Green,
pin 16
FT CAN Low:
Orange/Brown,
pin 15
Door Locks: Violet/Brown: 1
FT CAN High: Orange/Green: 7
FT CAN Low: Orange/Brown: 8
(-) Hazards SW Output: Green/Black: 10
(-) PTS Output: Lt. Blue/Black: 13
(+) Brake Activation Output: Green/Red: 14
[5]
Hood Pin
(-) Trunk Release Output: Red/White: 9
[2]
Siren
Manual/Auto. Transmission Type
Manual/Auto. Transmission Type
Door Locks: Violet/Green: 9
(-) Hood Input: Gray: 3
[1]
Clutch Output: Dk.Blue: 7
[4]
(+) Siren Output: Brown: 17
Prog.
Prog.
Button
Button
Remote Start Safety
Override Switch
The Remote Start
Safety Override
Switch MUST be in
the ON position.
10: Red: (+) 12V (+) 12V
9: Black: (-) Ground (-) Ground
5: Orange/Red: Key Wrap
[3]
4: Yellow/Red: Key Wrap
[3]
3: Brown/Red: Key Wrap
[3]
Directed Digital System VW02
© 2016 Directed. All rights reserved.
